xProduct Name | 1*60MM Drop Cable Joint Protect FTTH Cable Ribbon Splice Sleeves | Use | Fibre Optic Patch Cord Protection |
---|---|---|---|
Brand | Focus Infra Or OEM | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
Application | Fiber To The Home Network | Fit For | Round Drop Cable, Flat Drop Cable |
Length | 60mm | Diamter Of Steel Rod | 1.0mm |
Inner Diameter | 3.9mm | Steel Rod Pin | 1 |
Color | Clear | Operating Temperation | -45°C To +120°C |
Place Of Origin | China | Pack | 50pcs/bag Or Negotiable |
High Light | waterproof fiber sleeve 60mm,protection sleeve 60mm durable,heat shrink splice protector 50mm |

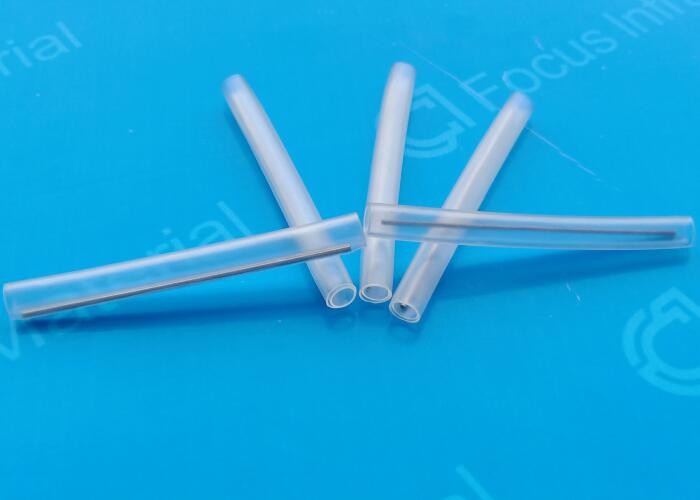

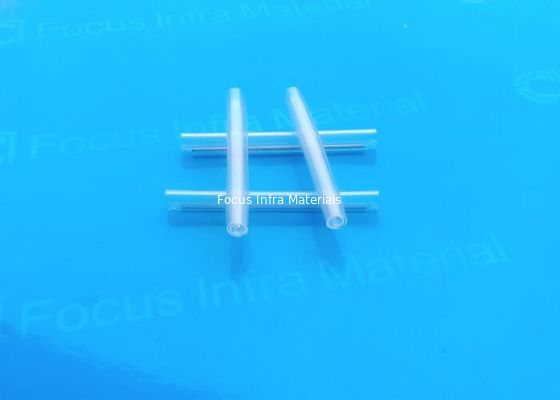

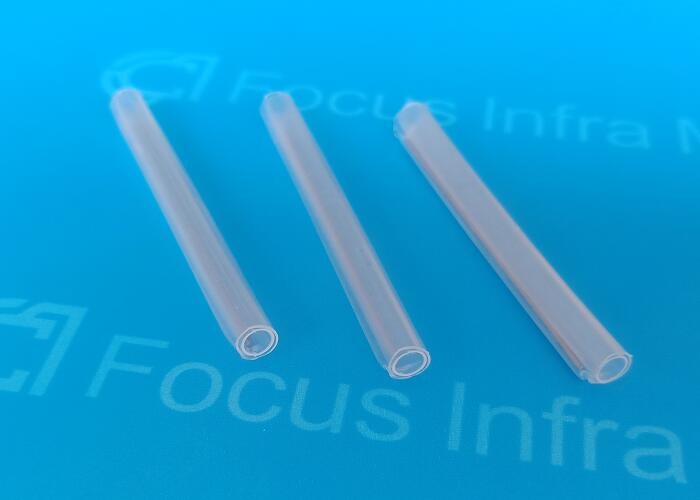

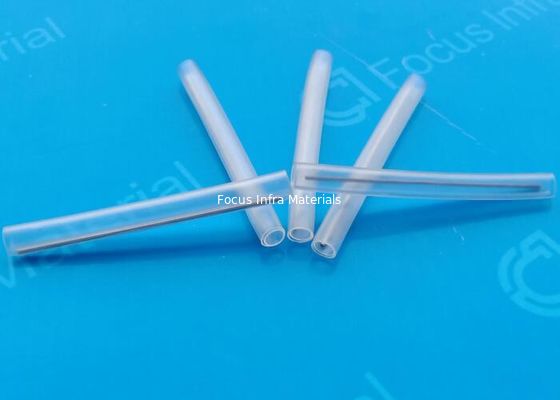

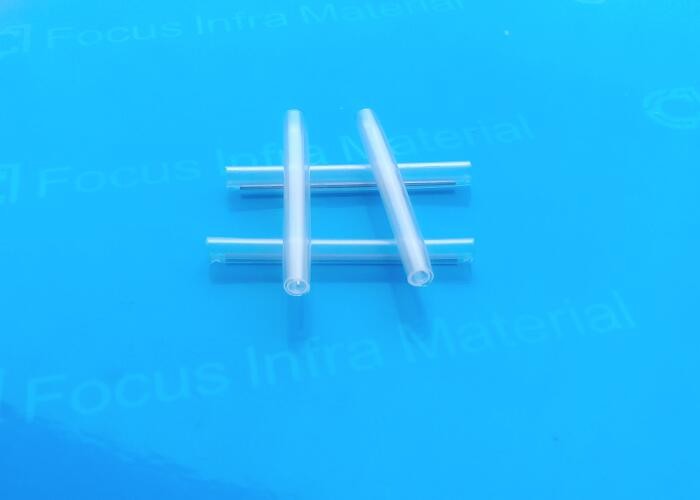

Fiber Heat Shrink Sleeves For Fibre Optic Patch Cord Joint Protect
Description:
Fiber Heat Shrink Sleeves For Fibre Optic Patch Cord Joint Protect is used to protect the Drop Cable Joint Connection. The construction of the three protective and strengthening elements of the Fiber Heat Shrink Sleeves For Fibre Optic Patch Cord Joint Protect is distinctive in the function that each provides. The inner stainless steel pin keeps the sleeve rigid and stable. The pin is vibratory tumbled with a special medium. This eliminates the possibility of fiber scarring or material penetration, both of which could damage the sensitive glass fibers. The inner tube is made of a specially designed material that compresses. The fiber splice becomes encapsulated within the inner tube. The outer tube is made of a heat-shrinking polyolefin. This encloses the inner tube and the encapsulated fiber splice, providing double protection and ensuring that moisture and air are eliminated from the fiber drop cable connection.
In other words, Fiber Heat Shrink Sleeves For Fibre Optic Patch Cord Joint Protect is a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper.
Focus Infra’s FTTH Fiber Heat Shrink Sleeves is available length of 40 mm, 45 mm, 50 mm, 60 mm. however, other lengths are available upon request.
Feature:
Product name: fiber heat shrinkable tube
Steel needle material: 304 stainless steel
Outer skin material: environmentally friendly PE
Product unit: 50pcs per bag
Length dimension: 60mm 50mm 45mm 40mm
Product color: transparent
Scope of application: optical fiber fusion splicing, protecting optical fiber
Technical Parameters:
Specification |
Test method |
Typical data |
Tensile strength(MPa) |
ASTM D 2671 |
18 |
Elongation at Break (%) |
ASTM D 2671 |
700 |
Density(g/cm2) |
ISO R1183D |
0.94 |
Dielectric strength (KV/mm) |
IEC 243 |
20 |
Permittivity |
IEC 243 |
2.5 |
Length rate of change (%) |
ASTM D 2671 |
+5 |
