50mm 45mm 40mm Fiber Heat Shrink Sleeves Splice Protector PE Outer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 304SS Double Rod FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves | Use | Protect Fiber Drop Cable Joint Point |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | FTTH Project | Fit For | FTTH Drop Cable |
| Length | 60mm | Diamter Of Steel Rod | 1.0mm |
| Inner Diameter | 3.8mm | Steel Rod Pin | 2 |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 50pcs/bag Or Negotiable |
| High Light | 50mm 45mm Fiber Heat Shrink Sleeves,50mm PE heat shrink splice protector,50mm 45mm 40mm Fiber Heat Shrink Sleeves |
||
Product Description

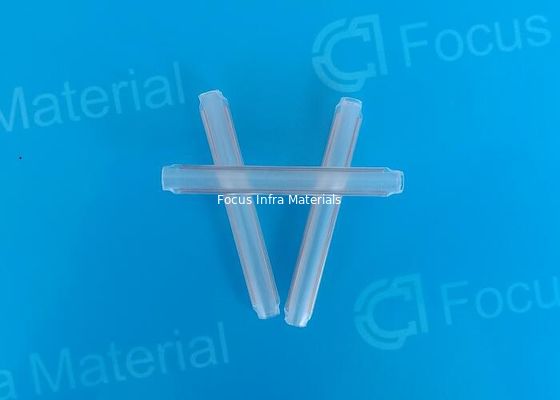

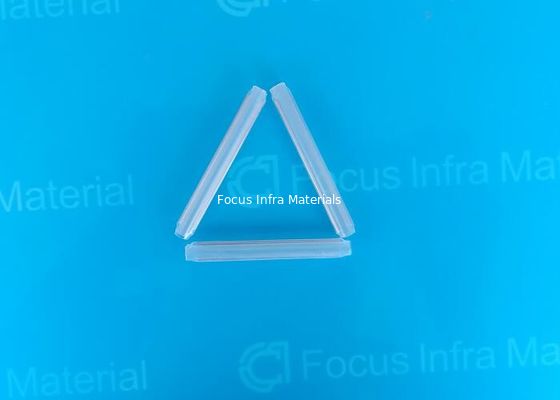

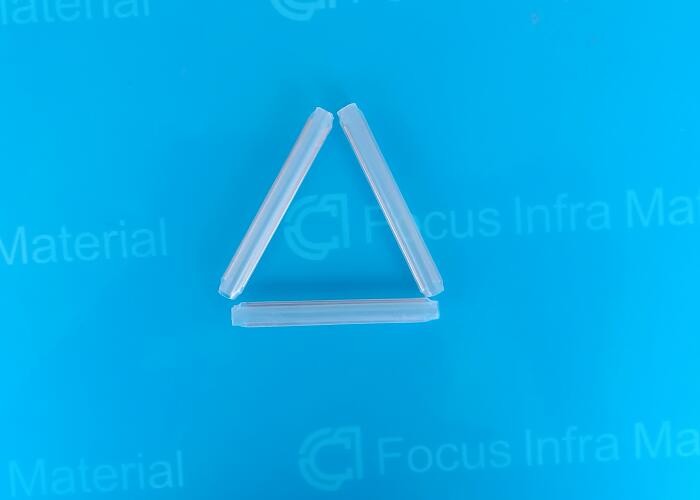

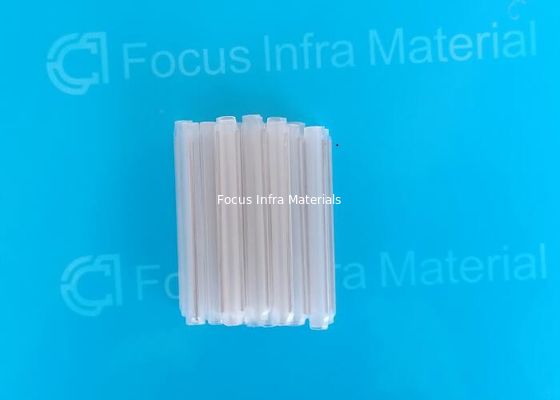

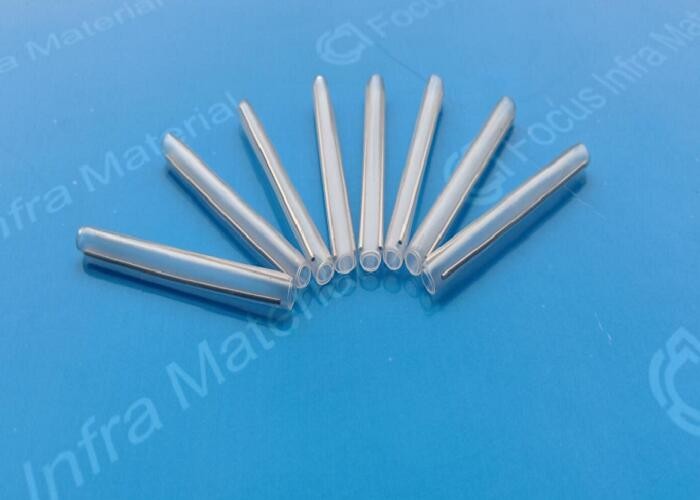

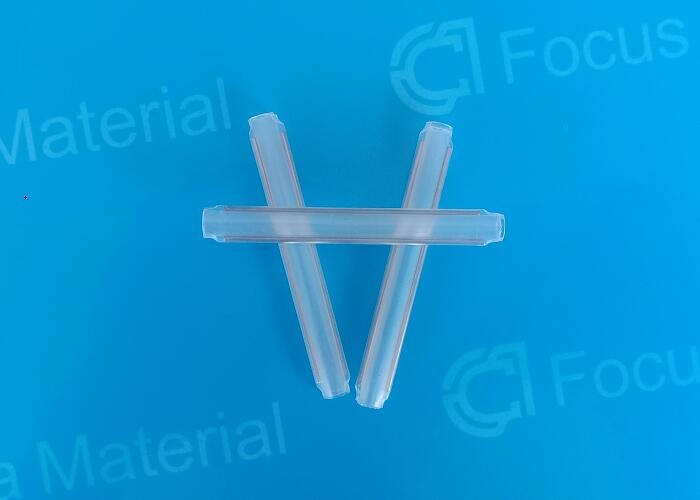

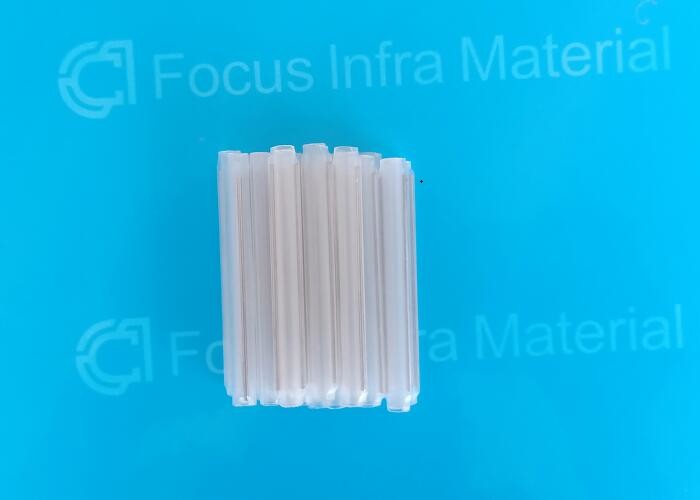

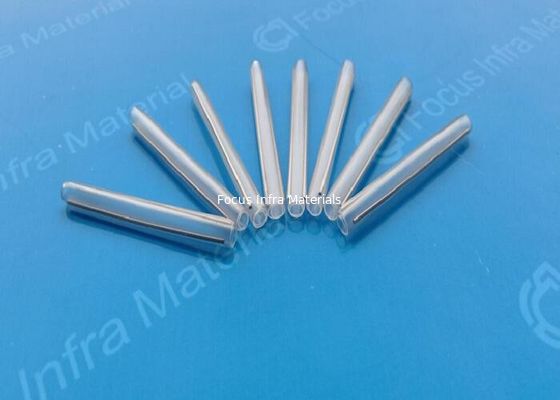

304SS Double Rod FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves
Description:
FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves is mainly used in FTTH project. It is a protective element for outdoor or indoor cable or between indoor cable and single core fiber jumper.
How to use a FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves?
The FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves was developed to protect and strengthen fusion splices on fiber optic cables. We must be installed on the drop cable before fiber fusion (otherwise, you will have to break the optical fiber and start again). First, slide the FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves onto the optical fiber cable. Then weld the two optical fiber cables. After the welding is completed, slide the FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves onto the optical fiber fusion point and cover the connect point and the exposed optical fiber. Put the FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves oven built in the welding machine. There, the FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves is heated to melt and contract around the joint. Because the FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves has steel rods, a mechanical protection is formed to prevent the fiber from bending. The contraction of the tube around the optical fiber also forms an environmental protection to keep the element away from the connector.
Features:
Product name: FTTH Fiber Cable Joint Protect Fiber Heat Shrink Sleeves
Steel needle material: 304 stainless steel
Outer skin material: environmentally friendly PE
Product unit: 50pcs per bag
Length dimension: 60mm 45mm 50mm 40mm
Product color: transparent
Scope of application: optical fiber fusion splicing, protecting fiber drop cables
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
