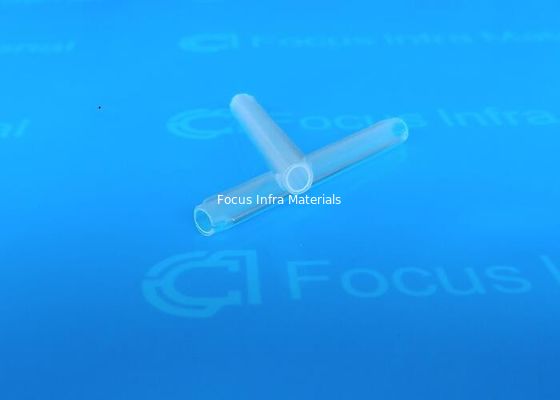

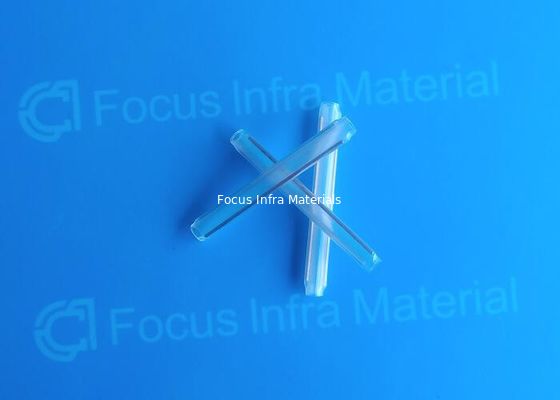

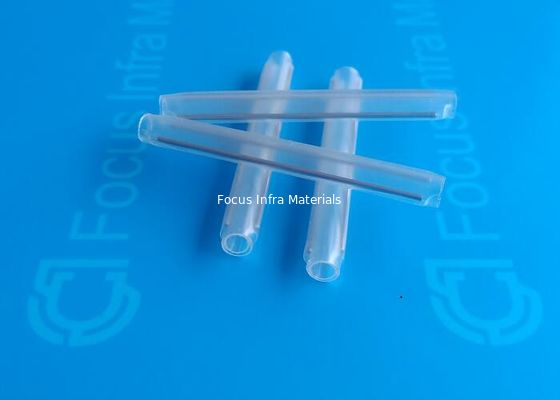

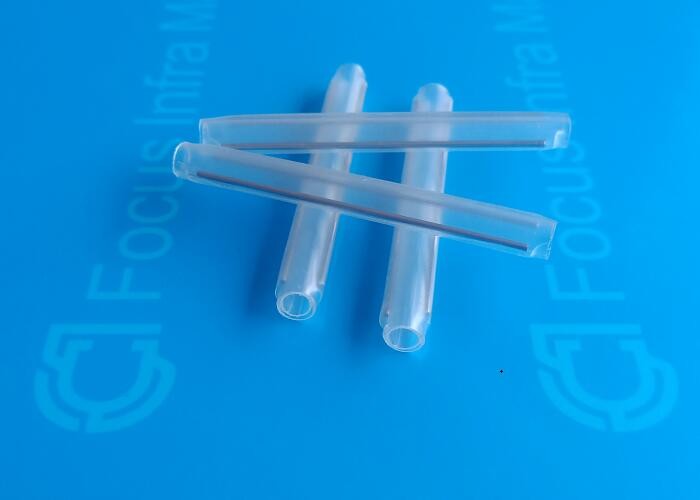

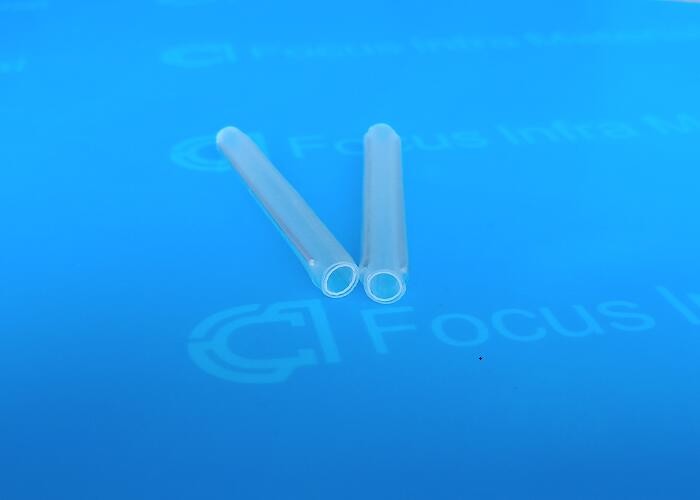

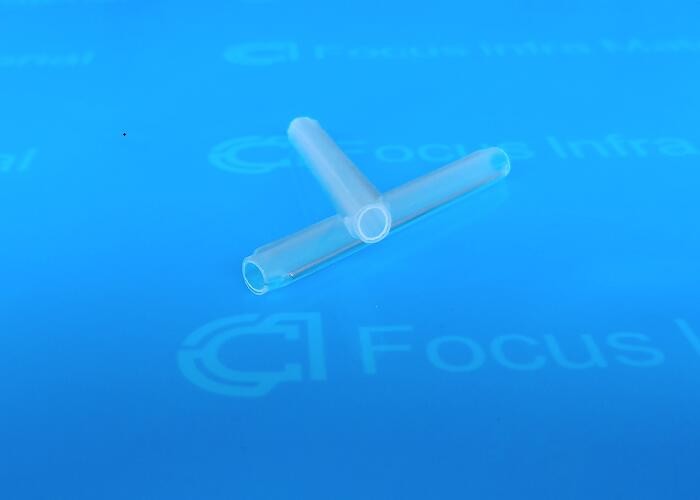

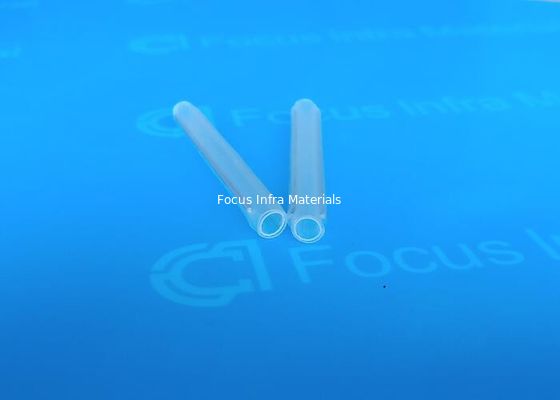

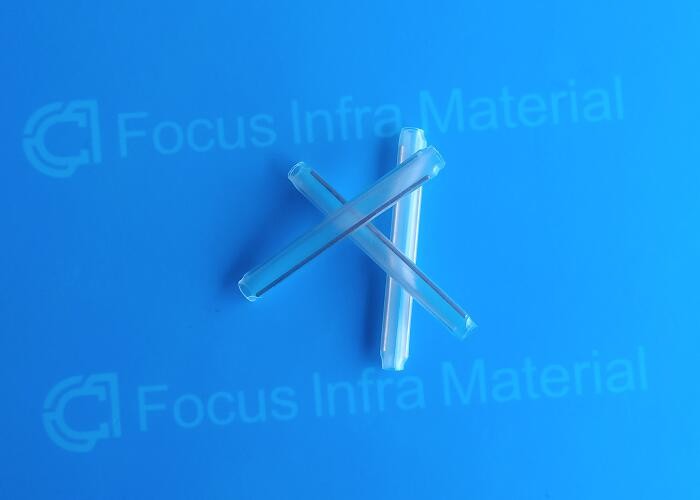

60mm Fiber Cable Protection Focus Infra Fiber Splice Sleeves

60mm FTTH Fiber Cable Protection Double Rod Big Hole Fiber Cable Joint Tube

Description:

  Focus Infra’s FTTH Fiber Cable Protection Double Rod Big Hole Fiber Cable Joint Tube is a special polyolefin thermal-shrinkable sleeve. The outer tube is made of high quality soft crosslinked polyolefin material and inner hot-melt adhesive. The outer tube has the characteristics of insulation, corrosion prevention and wear resistance, while the inner tube has the advantages of low melting point, waterproof seal and high adhesion, and 304SUS stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to FTTH Drop Cable Joint Connection. It is friendly operated to the optic fiber cable during installation without damaged and micro bending.

  We use this FTTH Fiber Cable Protection Double Rod Big Hole Fiber Cable Joint Tube to make heat Shrinkable Splice with 2pcs Drop Cable (Or Drop Cable SC Connector Terminated one side). Designed for either Flat Drop Cable or Round Drop Cable. this FTTH Fiber Cable Protection Double Rod Big Hole Fiber Cable Joint Tube is installed indoor or Outdoor, provide good connection and protection in FTTH Constructions.

Features:

1. Protect FTTH Drop Cable Joint Connection

2. fits into most splice holders

3. quick shrink-down time

4. Low temperature hot-melt adhesive encapsulates the splice

5. simple operation, reduce the risk of damage fiber installation.

6. transparent casing, optical fiber splice clearly visible.

7. sealing structure to continue to have good resistance to temperature, humidity performance.

8. use of imported 304 steel, high-quality heat shrink tubing .

9. operating temperature: -45 – 120 °C.

10. shrink temperature range:120 °C .

Technical Parameters:
