OEM 1*60MM Fiber Optic Cable Splice Protection Sleeve Half Sealing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FTTH Drop Cable Protect Tube 60mm Big Hole Optical Cable Heat Shrink Sleeve | Use | FTTH Drop Cable Joint Protect |
|---|---|---|---|
| Brand | Focus Infra | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | FTTH Round Drop Cable, FTTH Flat Drop Cable |
| Length | 60mm | Diamter Of Steel Rod | 1.0mm |
| Inner Diameter | 3.9 Mm | Steel Rod Pin | 2 |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 50pcs/bag Or Negotiable |
| High Light | OEM 1*60MM fiber optic cable sleeve,OEM 1*60MM splice protection sleeve,splice protection sleeve half sealing |
||
Product Description

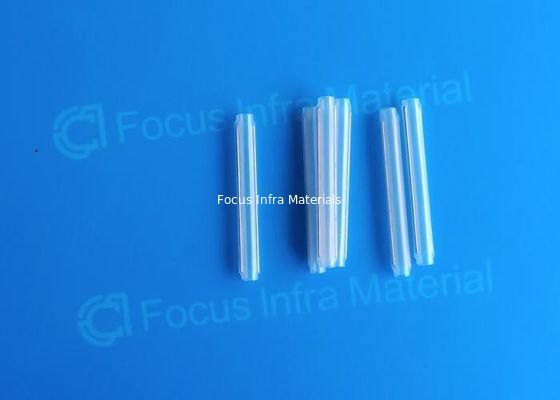

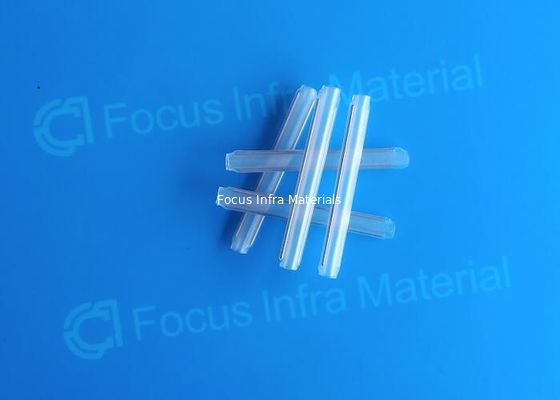

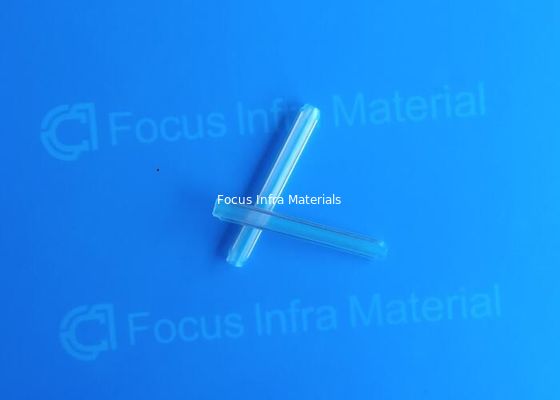

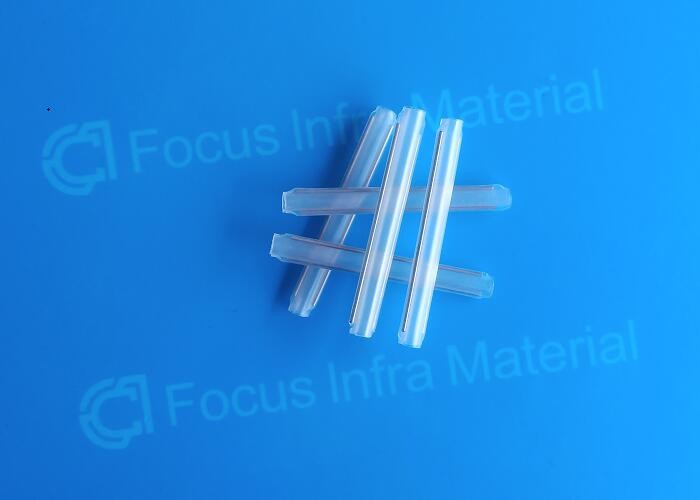

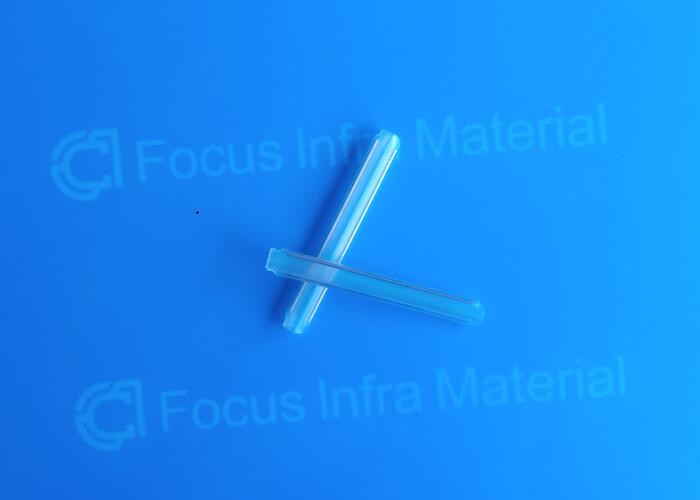

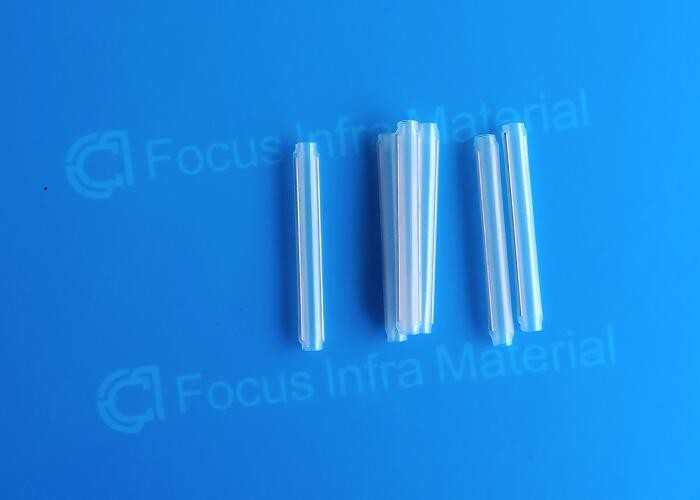

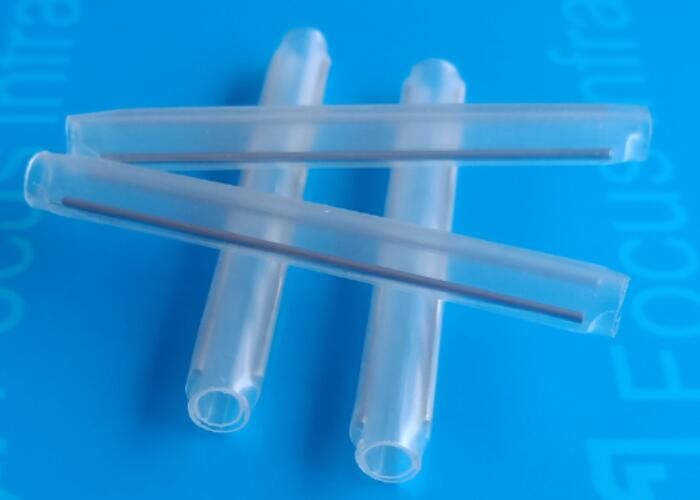

FTTH Drop Cable Protect Tube 60mm Big Hole Optical Cable Heat Shrink Sleeve
Description:
Focus Infra’s Heat Shrink Sleeve is specially designed by the cross-linked polyolefin, hot melt tube and enhanced stainless steel wire/ ceramic/quartz rod. Heat Shrink Sleeves are available for single fusion splicing of single fibers and mass fusion splicing of multiple fibers, and drop cable joint protect. For Mass fusion splice sleeves protect ribbons with two to twelve fibers.
FTTH Drop Cable Protect Tube 60mm Big Hole Optical Cable Heat Shrink Sleeve does not affect the fiber optic light guide features. FTTH Drop Cable Protect Tube 60mm Big Hole Optical Cable Heat Shrink Sleeve provide mechanical and environmental protection for FTTH Drop Cable Joint Connection. FTTH Drop Cable Protect Tube 60mm Big Hole Optical Cable Heat Shrink Sleeve are compatible with most of the industry standard fiber management systems and organizers.
Focus Infra’s FTTH Drop Cable Protect Tube 60mm Big Hole Optical Cable Heat Shrink Sleeve is a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper. In order to make it easy to fit, we offer a big inner diameter up to 3.9mm, it's much easier to operation.
Features:
1. Pre-shrink at both end of sleeves to keep the steel rod from dropping out
2. Double steel rod to offer strong protection for fiber cables
3. Selected 304 high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
