Length 60mm Splice Fiber Heat Shrink Sleeves OEM ASTM D 2671
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 60mm Fiber Drop Cable FTTH Project Joint Protect Kit Fiber Heat Shrink Sleeves | Use | FTTH Drop Cable Joint Protect |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | FTTH Drop Cable, Round Cable, Flat Cable |
| Length | 55mm | Diamter Of Steel Rod | 1.0mm |
| Inner Diameter | 3.9 Mm | Steel Rod Pin | Single Steel Rod |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 50pcs/bag Or Negotiable |
| High Light | 60mm Fiber Heat Shrink Sleeves,60mm splice sleeves OEM,OEM 60mm splice sleeves ASTM D 2671 |
||
Product Description

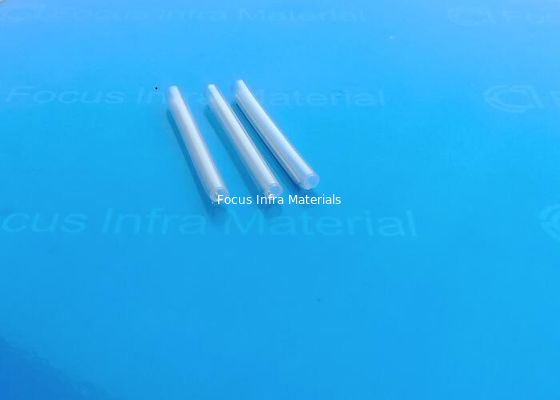

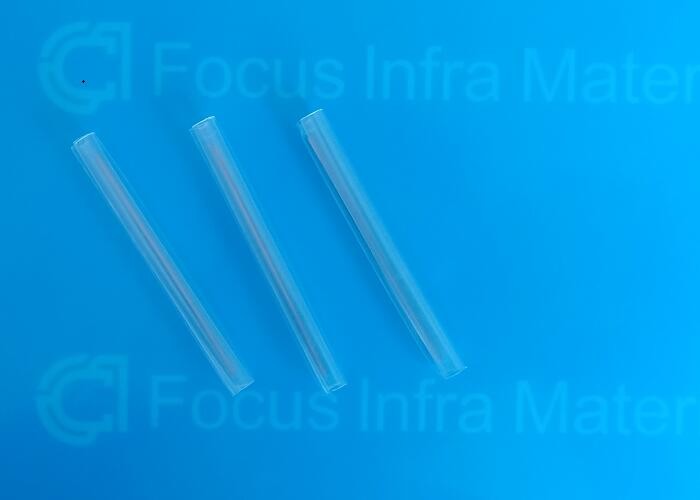

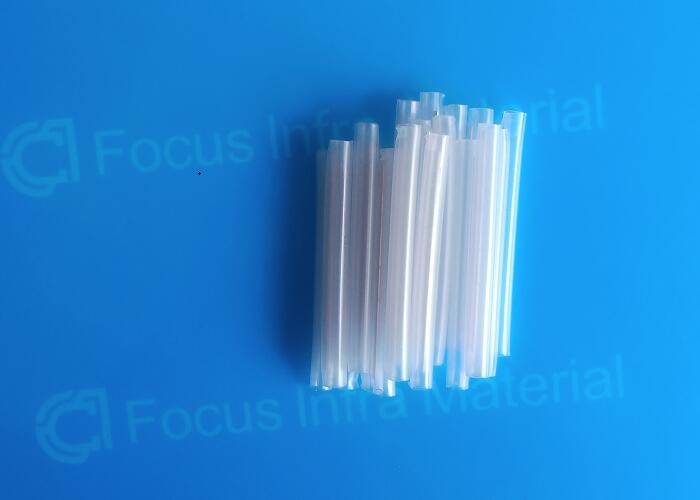

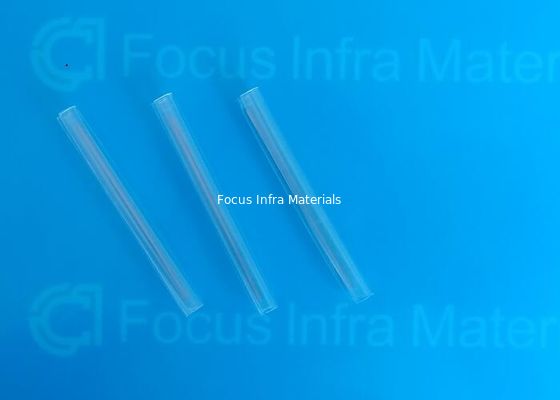

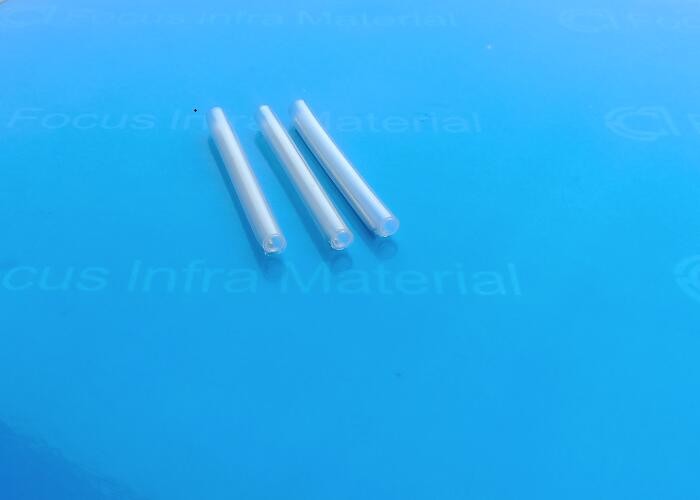

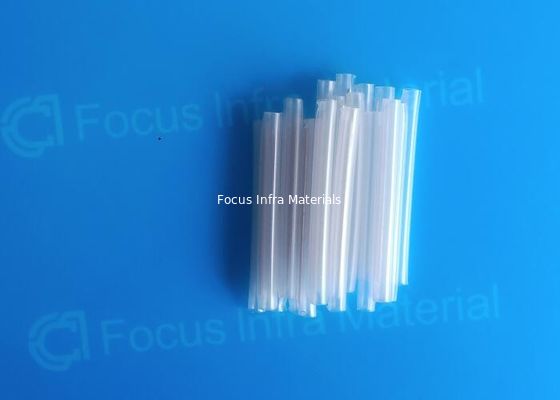

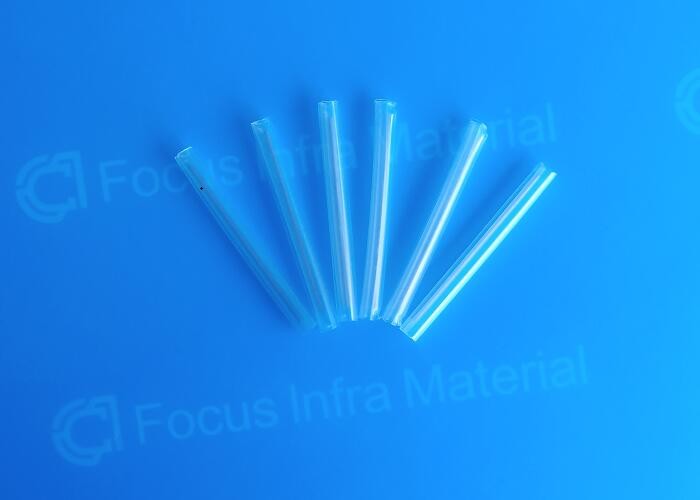

60mm Fiber Drop Cable FTTH Project Joint Protect Kit Fiber Heat Shrink Sleeves
Description:
FTTH Project Joint Protect Kit Fiber Heat Shrink Sleeves is Specially designed for optical fiber splice protection devices,does not affect the fiber optic light guide features. It is used to protect the FTTH Project Joint Protect Kit Fiber Heat Shrink Sleeves. With high quality steel rod Smooth, rounded-end stainless steel reinforcing member ends, Focus Infra’s Fiber Heat Shrink Sleeves can help to decrease the risk of fiber damage during installation. After Heat Shrink, the sleeves can sealing structure let closure have good resistance to temperature and humidity performance. Fiber Drop Cable FTTH Project Joint Protect Kit Fiber Heat Shrink Sleeves Providing mechanical and environmental protection for fusion splices joint connection.
Features:
1. Provide mechanical and environmental protection for fiber cable joint protect
2. Optimal design for simple and correct fiber entrance
3. Hot melt adhesive especially developed for optimal flow
4. Transparent heat shrinkable tube for simple installation verification
5. Short installation cycle and compatible with most common ovens
6. Fits into most splice holders
7. Quick shrink-down time
8. Low temperature hot-melt adhesive encapsulates the splice
9. Outer skin material: environmentally friendly PE
10. Product unit: 50pcs per bag
11. Length dimension: 60mm 45mm 40mm
12. Product color: transparent
13. Scope of application: fiber drop cable joint connection, flat drop fiber cable, round drop fiber cable
14. Easily use and avoid any damages to the optical fiber during installation
15. Single holed(preshrunk) ends eliminates improper fiber threading
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
