55MM Fiber Heat Shrink Sleeves FTTH Fusion Splice Protector Sleeve
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 55MM FTTH Drop Cable Joint 201SUS Rod 3.7mm Big Hole Fiber Heat Shrink Sleeves | Use | FTTH Drop Cable Joint Protect |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | FTTH Drop Cable, Round Cable, Flat Cable |
| Length | 55mm | Diamter Of Steel Rod | 1.0mm |
| Inner Diameter | 3.7 Mm | Steel Rod Pin | Single Steel Rod |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 50pcs/bag Or Negotiable |
| High Light | 55MM Fiber Heat Shrink Sleeves,FTTH fusion splice protector sleeve 55MM,55MM fusion splice protector sleeve |
||
Product Description

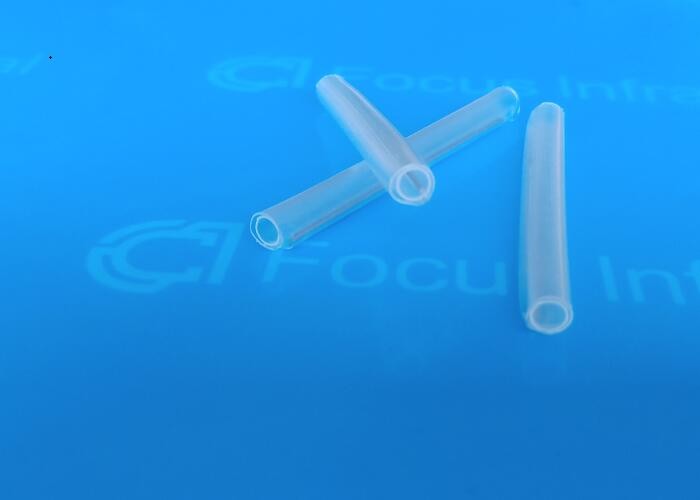

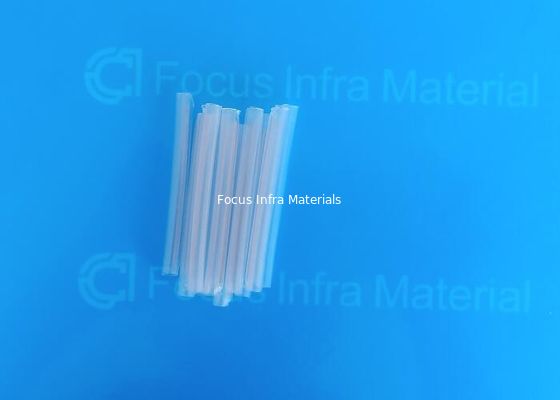

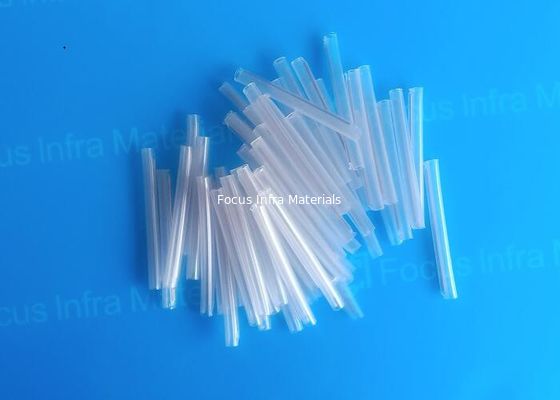

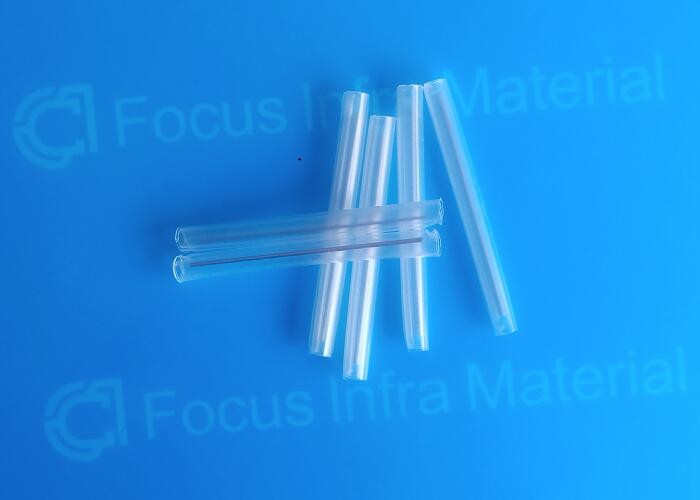

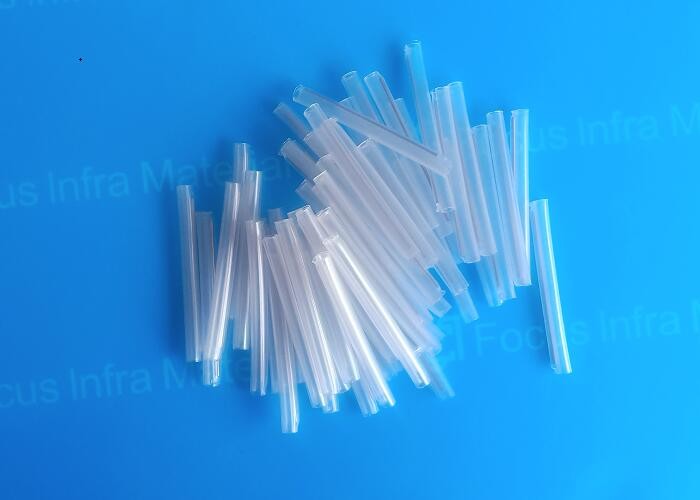

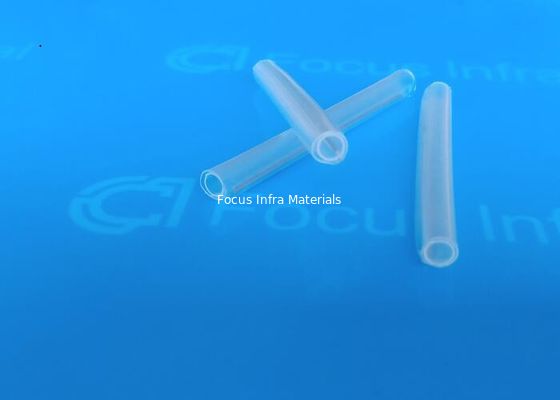

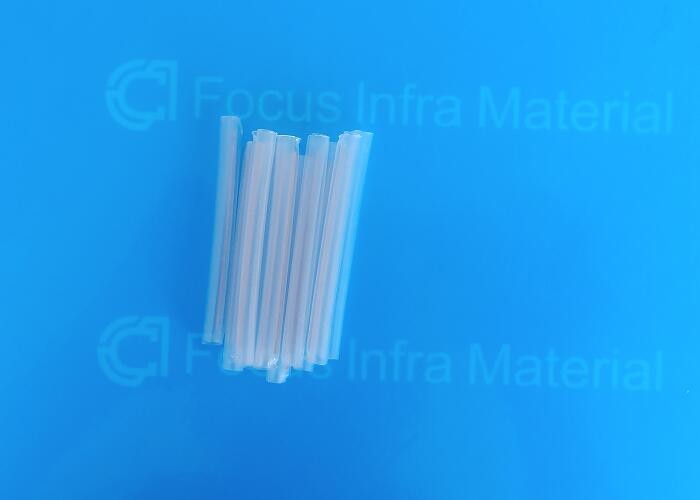

55MM FTTH Drop Cable Joint 201SUS Rod 3.7mm Big Hole Fiber Heat Shrink Sleeves
Description:
FTTH Drop Cable Joint 201SUS Rod 3.7mm Big Hole Fiber Heat Shrink Sleeves is a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper. It is mainly used in FTTH project. For FTTH Drop Cable Joint 201SUS Rod 3.7mm Big Hole Fiber Heat Shrink Sleeves is 40mm-60mm are available, single steel rod and double steel rod for your choose
Features:
1. Specially designed by the cross-linked polyolefin, hot melt tube and enhanced stainless steel wire for optical fiber drop cable splice joint protection devices, does not affect the fiber optic light guide features.
2. Protect splices and improve the mechanical strength.
3. Simple operation, reduce the risk of damage fiber installation.
4. Transparent casing, optical fiber splice clearly visible.
5. Sealing structure to continue to have good resistance to temperature, humidity performance.
6. Fits into most splice holders
7. Quick shrink-down time
8. Low temperature hot-melt adhesive encapsulates the splice
9. Industrial sealing treatment at both ends of the tube to ensure that the steel needle does not fall
10. Selected high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging
11. The double-layer shell is made of environmentally friendly PE and has a long service life
12. Better protection of bare fiber and prolong the service life of fiber
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
