Clear 45MM FTTH Heat Shrink Cable Sleeve Fusion Protection 1.0*45MM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 45MM FTTH Stainless Steel Rod Big Hole Drop Cable Joint Protect Fiber Heat Shrink Protector | Use | FTTH Drop Cable Joint Protect |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | FTTH Round Drop Cable, FTTH Flat Drop Cable |
| Length | 45mm | Diamter Of Steel Rod | 1.0mm |
| Inner Diameter | 3.9 Mm | Steel Rod Pin | 1 |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 50pcs/bag Or Negotiable |
| High Light | FTTH heat shrink cable sleeve 1.0*45MM,Clear heat shrink cable sleeve 1.0*45MM,FTTH 45MM fusion protection sleeve |
||
Product Description

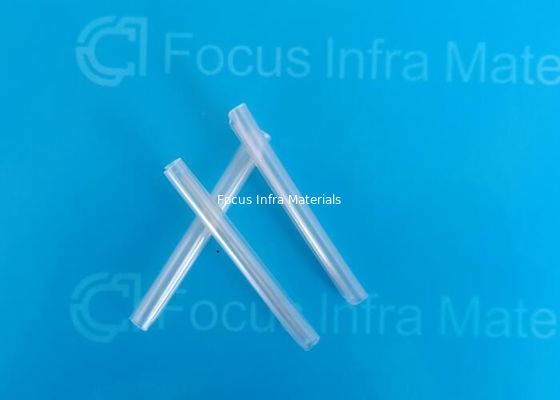

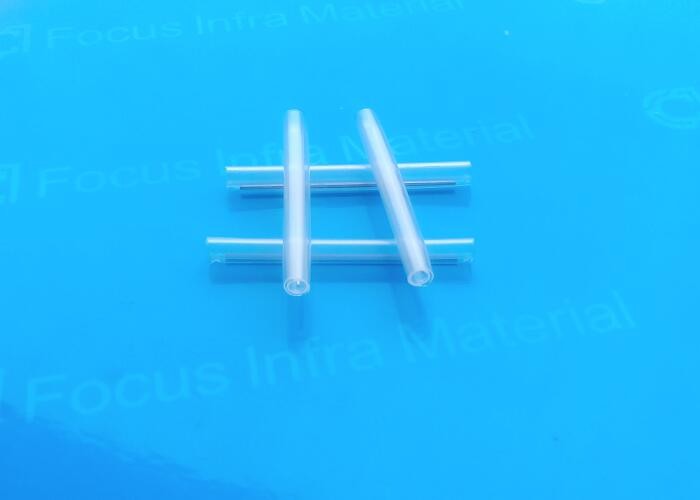

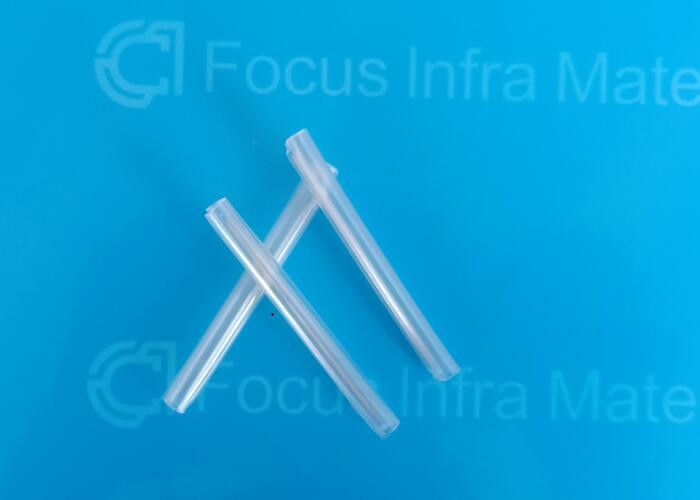

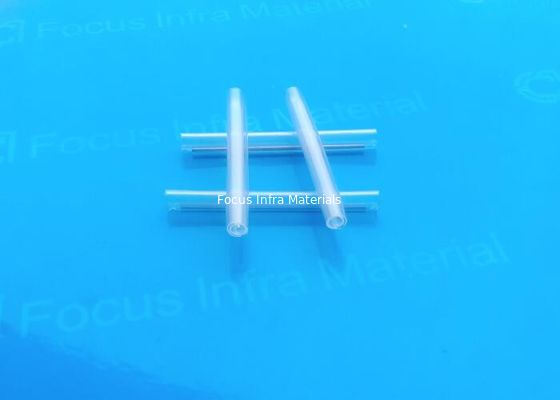

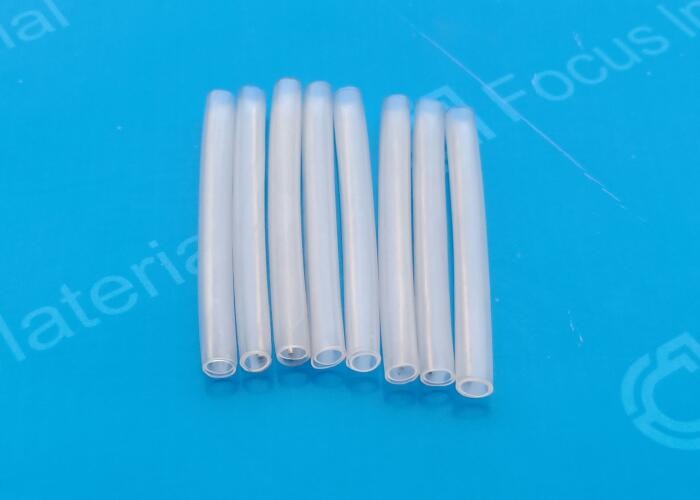

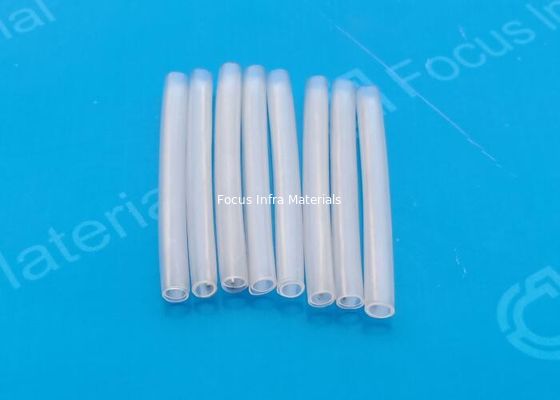

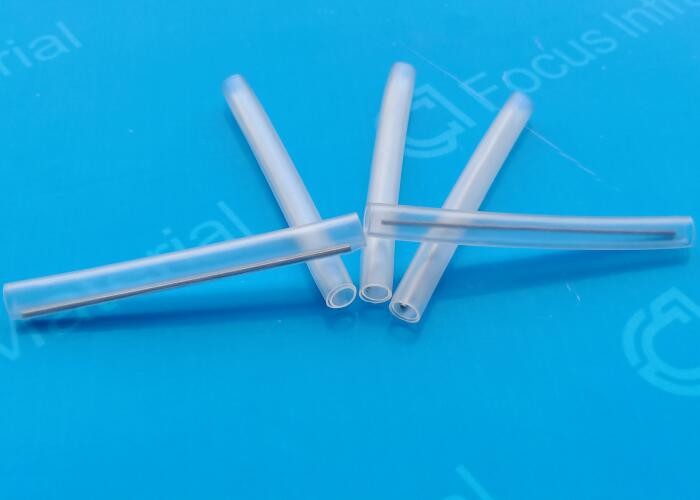

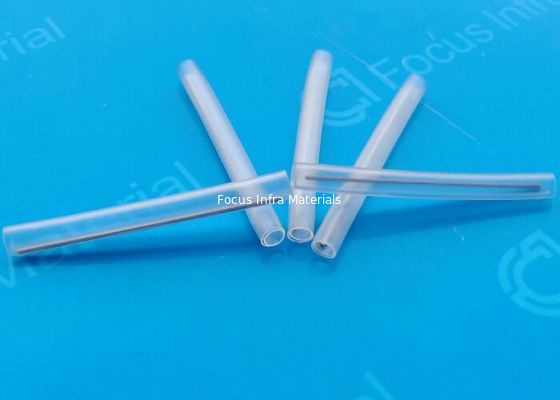

45MM FTTH Stainless Steel Rod Big Hole Drop Cable Joint Protect Fiber Heat Shrink Protector
Description:
Drop Cable Joint Protect Fiber Heat Shrink Protector We Also Called it as “FTTH Drop Splice Closure”, “FTTH Drop Repair Splice Closure ”, “ FTTH Drop Repair joint kits”. This Fiber Heat Shrink Sleeve is used as a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper. In order to make it easy to fit, Focus Infra offers a big inner diameter up to 3.9mm, It’s much different than other brands’ Drop Cable Joint Protect Fiber Heat Shrink Protector.
Same as Single Fiber Optic Splice Protect Sleeves, this Drop Cable Joint Protect Fiber Heat Shrink Protector is consisted of cross linked polyolefin, hot melt tubes and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber cable splices. It is friendly operated to the optic fiber cable during installation without damaged and micro bending.
Features:
1. Transparent color to make it easy to detect splice before shrinkage
2. Airproof structure keeping the splice point's good resistance of humidity and temperature
3. Easily use and avoid any damages to the optical fiber during installation
4. Single holed(preshrunk) ends eliminates improper fiber threading
5. Quickly shrink, improving work efficiency
6. Strong practicality
7. extend the service life of the fiber
8. No air bubbles, no fiber breakage
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
