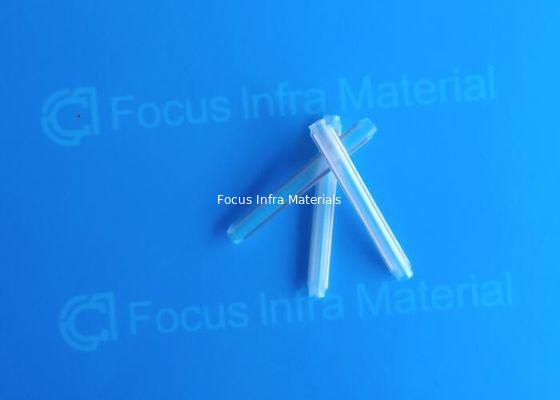

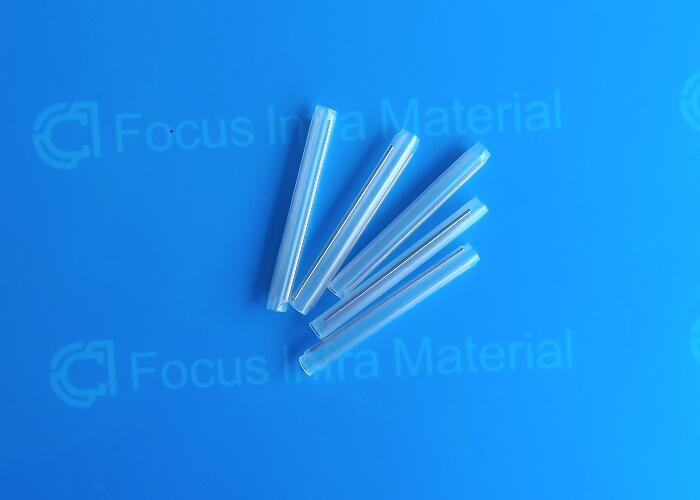

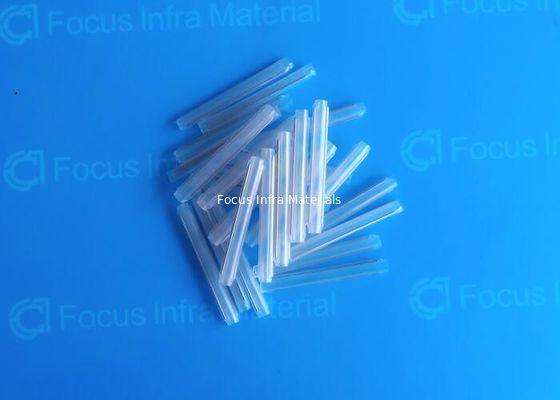

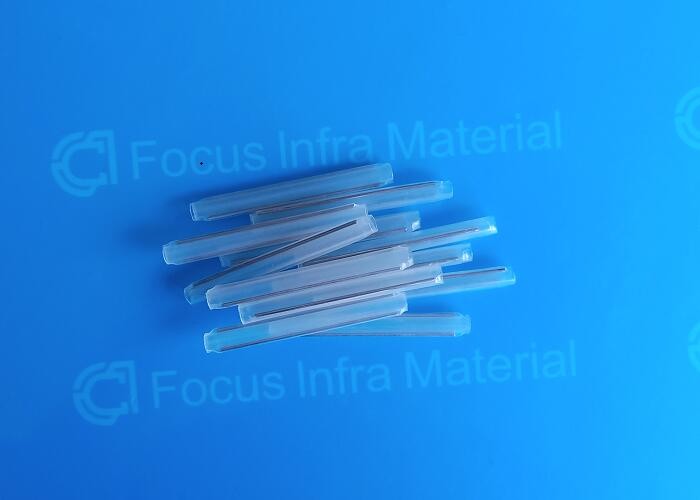

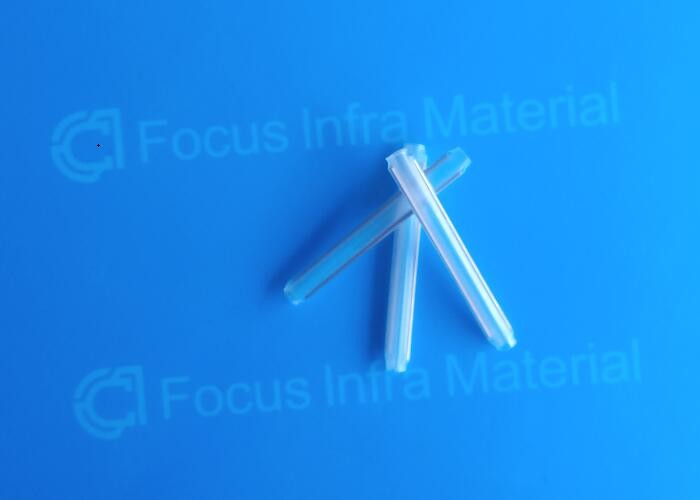

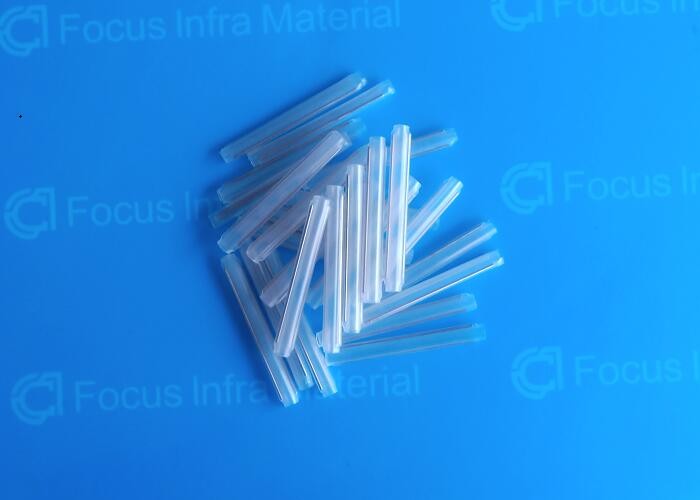

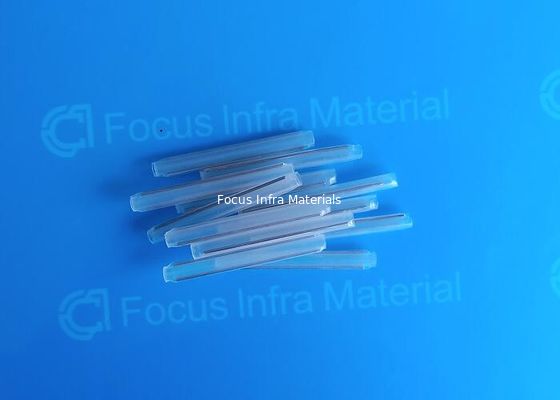

ISO R1183D 304SS 60mm Protection Sleeve Fiber Optic For Fiber Splicing

304SS 60mm Length Double Rod FTTH Fiber Fusion Drop Cable Heat Shrink Tube

Description:

  FTTH Fiber Fusion Drop Cable Heat Shrink Tube is used to protect the optical fusion fiber cables. The construction of the three protective and strengthening elements of the FTTH Fiber Fusion Drop Cable Heat Shrink Tube is distinctive in the function that each provides. The inner stainless steel pin keeps the sleeve rigid and stable. The pin is vibratory tumbled with a special medium. This eliminates the possibility of fiber scarring or material penetration, both of which could damage the sensitive glass fibers. The inner tube is made of a specially designed material that compresses. The fiber splice becomes encapsulated within the inner tube. The outer tube is made of a heat-shrinking polyolefin. This encloses the inner tube and the encapsulated fiber splice, providing double protection and ensuring that moisture and air are eliminated from the fiber splice. FTTH Fiber Fusion Drop Cable Heat Shrink Tube is available in a standard length of 60 mm. However, other lengths are available upon request.

Features:

1. Provide mechanical and environmental protection for drop cable joint

2. Optimal design for simple and correct fiber entrance

3. Hot melt adhesive especially developed for optimal flow

4. Transparent heat shrinkable tube for simple installation verification

5. Protect splices and improve the mechanical strength

6. Simple operation, reduce the risk of damage fiber installation

7. Transparent casing, optical fiber splice clearly visible

8. Sealing structure to continue to have good resistance to temperature, humidity performance

9. Use of imported 304 steel, high-quality heat shrink tubing

10. Operating Temperature: -45 – 120 °C

11. Shrink Temperature range:120 °C

Technical Parameters:
