Clear OEM Fusion Fiber Optic Splice Sleeves Protector 60mm Focus Infra
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PE 2.7mm Diameter 201SS Reinforcing Steel Rod 60mm Length Fiber Fusion Splice Protectors | Use | Fiber Fusion Splicing Protector |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | PE Tube, EVA Tube, 201SUS Steel Rod |
| Application | FTTH Fiber Fusion Connect | Length | 60mm |
| Diamter | 2.7mm | Color | Clear, 12 Standard Color Way |
| Operating Temperation | -45°C To +120°C | Place Of Origin | China |
| High Light | OEM Fiber Optic Splice Sleeves,OEM Fiber Optic Splice Sleeves 60mm,Sleeves Protector 60mm Focus Infra |
||
Product Description

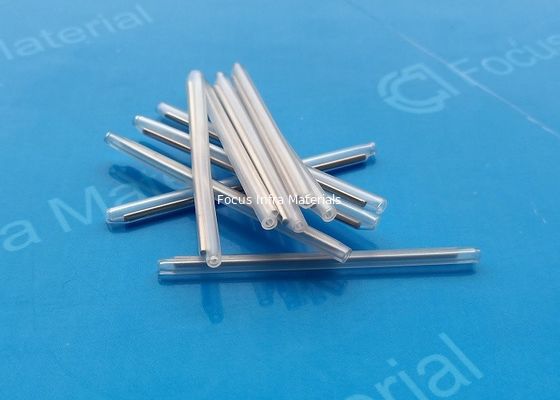

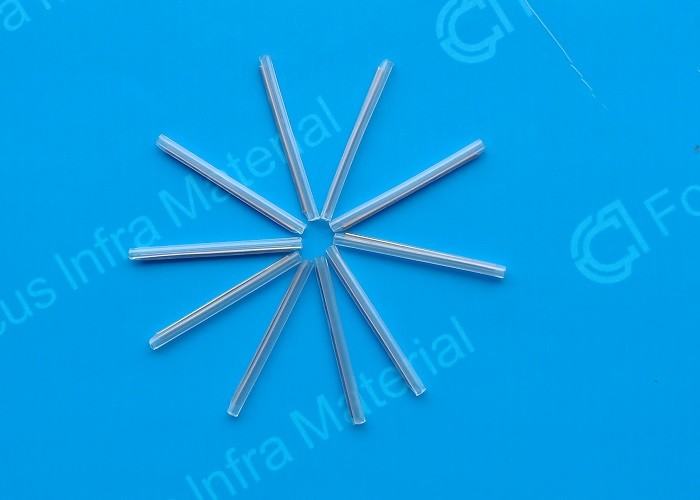

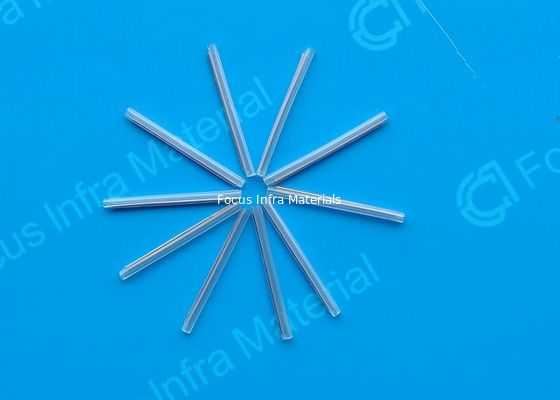

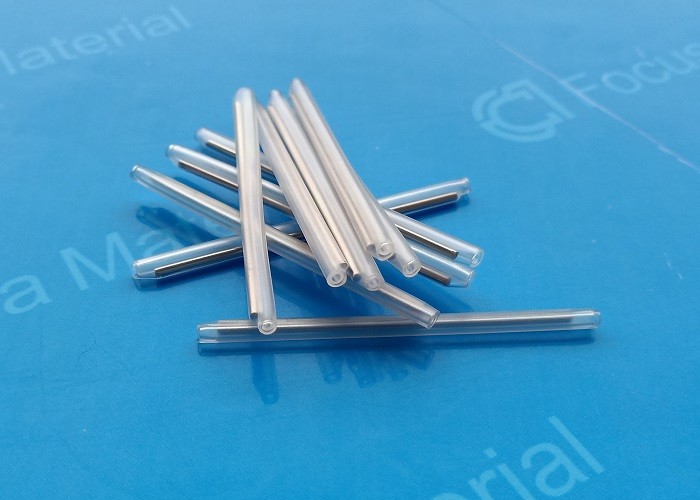

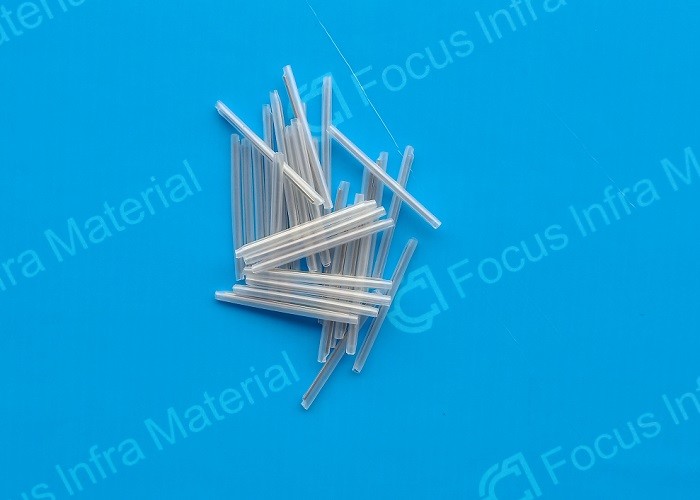

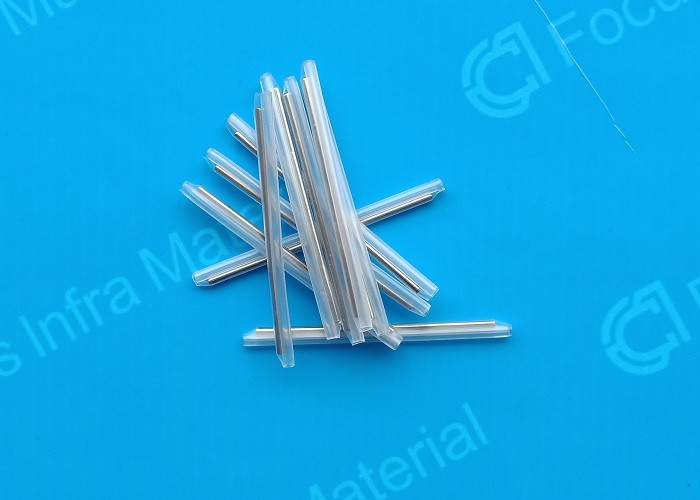

PE 2.7mm Diameter 201SS Reinforcing Steel Rod 60mm Length Fiber Fusion Splice Protectors
Description:
PE 2.7mm Diameter 201SS Reinforcing Steel Rod 60mm Length Fiber Fusion Splice Protectors is consist of cross linked polyolefin, hot melt tubes and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. It is friendly operated to the optic fiber during installation without damaged and micro bending.
The hot-melt adhesive inner tube bonds to both the fiber and the heat shrinkable outer tubes to encapsulate the fusion splice joint and provides vibration damping and an environment seal protecting the fiber from damage and contaminants.
The outer high quality irradiation cross-linked polyolefin heat shrinkable tubing provides an instant shrink-force and drives the adhesive liner into all areas of the splice and excludes all the air.
The stainless steel rod provides additional rigidity to prevent. Misalignment, micro bending or breakage of the fiber according to the diameter after shrinking and accommodate fiber diameter.
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
