Dia 1.4mm 45mm Fiber Optic Protection Sleeve 250um Cable Protection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diameter 1.4mm 45mm Length 250μm Bare Fiber Protection Heat Shrinkable Tube | Use | Fiber Fusion Splicing Protection |
|---|---|---|---|
| Brand | Focus Infra | Material | Heat Shrink Tube, 304 SS Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | CWDM, DWDM Or More Smaller Application |
| Length | 45mm | Diamter Of Steel Rod | 0.5 Mm |
| Diameter After Shrink | 1.4 Mm | Steel Rod Pin | 1 |
| Color | Clear | Operating Temperation | -45°C To +120°C |

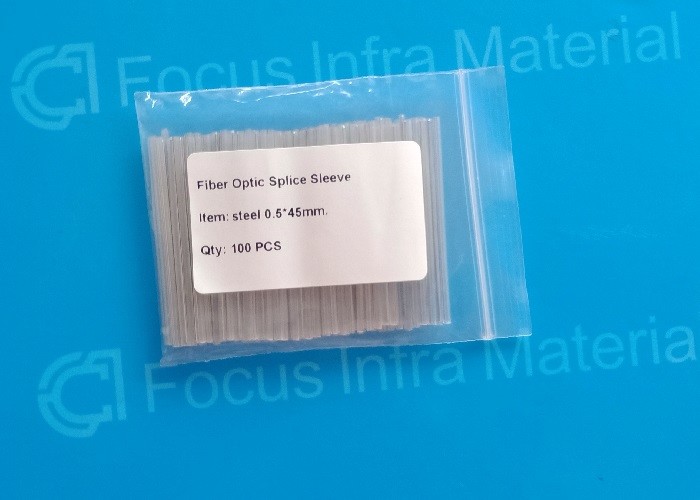

| Place Of Origin | China | Pack | 100pcs/bag |
| High Light | Dia 1.4mm fiber optic protection sleeve 250um,45mm fiber optic protection sleeve 250um,250um fiber cable sleeve Dia 1.4mm |
||
Product Description

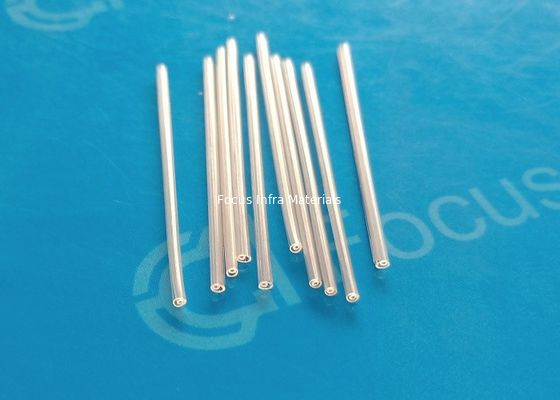

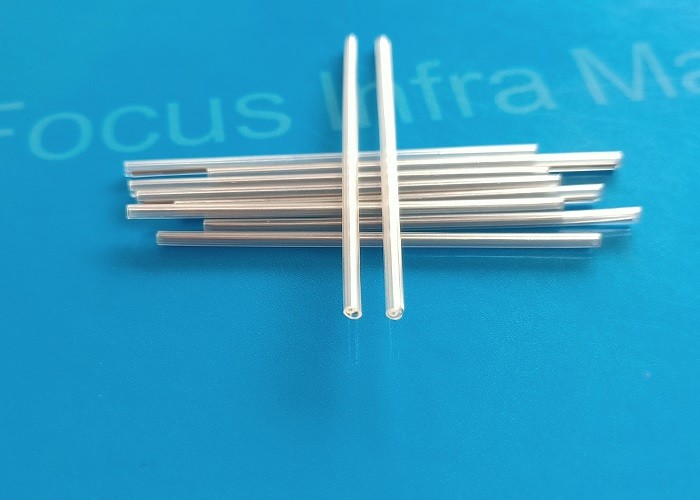

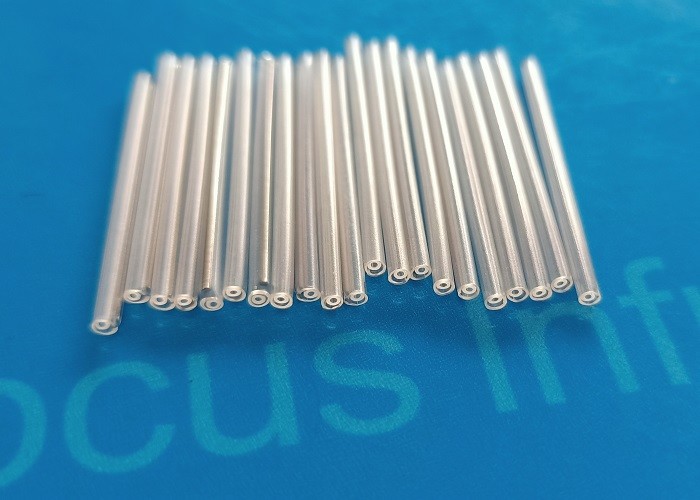

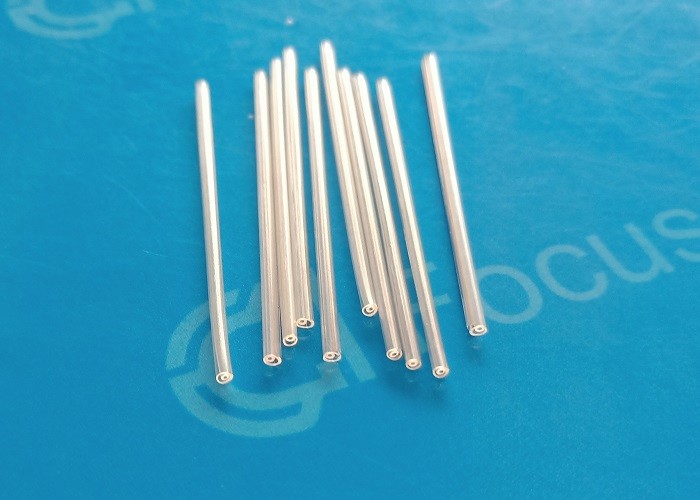

Diameter 1.4mm 45mm Length 250μm Bare Fiber Protection Heat Shrinkable Tube
Description:
Bare Fiber Protection Heat Shrinkable Tube provide mechanical and environmental protection for fusion splices of fiber. Bare Fiber Protection Heat Shrinkable Tube are compatible with most of the industry standard fiber management systems and organizers.
Diameter 1.4mm 45mm Length 250μm Bare Fiber Protection Heat Shrinkable Tube is designed for 250μm bare fiber splicing protection. Length is 45mm, other length also available. it is special used in smaller application, such as CWDM, DWDM ect. Diameter 1.4mm 45mm Length 250μm Bare Fiber Protection Heat Shrinkable Tube is commonly known as an optical fiber heat shrink protect sleeve. Diameter 1.4mm 45mm Length 250μm Bare Fiber Protection Heat Shrinkable Tube is widely used in communication optical fiber splicing projects, it is consisted of a special cross-linked polyolefin, a hot melt tube and a strengthen member.
Because the Fiber Protection Heat Shrinkable Tube is composed of three parts: heat shrinkable tube, hot melt tube and reinforced core, the transparent outer layer of the Fiber Optic Splice Sleeve can be used to detect whether the light splicing part is connected correctly before shrinking, so that the optical fiber can be easily and safely carried out. After shrinking, it can maintain the transmission characteristics of the optical fiber, provide strength and protection to the optical joint, improve the mechanical strength of the optical fiber fusion splice, protect the splice, and ensure the reliability of the splicing.
Features:
1. Not affect the optical conductivity of the spliced fiber
2. Easy operation, reduce the damage of optical fiber during installation
3. Strong practicality
4. Transparent casing
5. Quickly shrink, improving work efficiency
6. extend the service life of the fiber
7. No air bubbles, no fiber breakage
8. Quality assurance, both single and double needles
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
