60mm Splice Sleeves For Single Fiber Splice Joint for Wall Mount Fiber Termination Box

60mm Splice Sleeves For Single Fiber Splice Joint for Wall Mount Fiber Termination Box

Description:

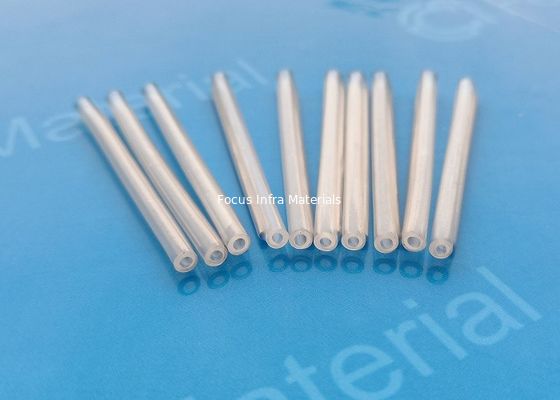

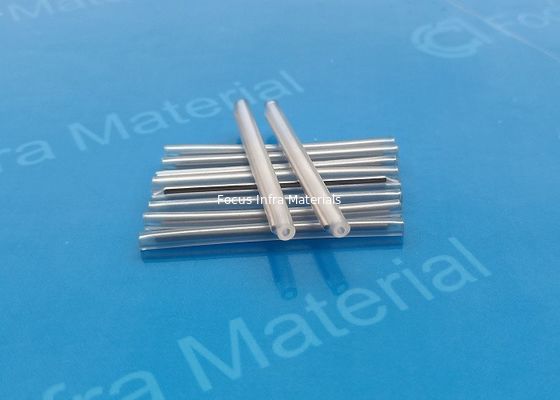

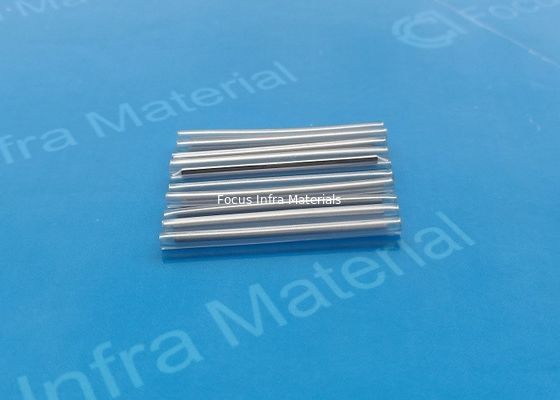

 A 60mm Splice Sleeves For Single Fiber Splice Joint for Wall Mount Fiber Termination Box is consisted of cross linked polyolefin, hot melt tubes and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. It is friendly operated to the optic fiber during installation without damaged and micro bending. The 60mm Splice Sleeves For Single Fiber Splice Joint for Wall Mount Fiber Termination Box.

 60mm Splice Sleeves For Single Fiber Splice Joint is designed for 250μm bare fiber splicing protection. Length is 60mm, other length also available. it is special used in smaller application, such as CWDM, DWDM ect. 60mm Splice Sleeves is special desinged for Wall Mount Fiber Termination Box. It is commonly known as an optical fiber heat shrink protect sleeve. 45mm Length Micro Bare 250um Heat Shrink Fiber Optic Splice Sleeves is widely used in communication optical fiber splicing projects, it is consisted of a special cross-linked polyolefin, a hot melt tube and a strengthen member.

Features:

1. Clear sleeve make it easy to detect splice before shrinkage
2. Airproof structure keeping the splice point's good resistance of humidity and temperature
3. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 SS rod offers better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
4. Min. shrinks temperature: 120 °C, shrink very fast and very easy to installation
5. Work temperature high (-55°C~100°C), widely used
6. Sealing structure let closure have good resistance to temperature and humidity performance

Technical Parameters:
