Polyethylene EVA 45mm L Fiber Optic Splice Sleeves Protection ASTM D 2671
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PE 2.5mm Diameter 304SS Reinforcing Steel Rod 45mm L Fiber Optic Heat Shrink Sleeves | Use | Fiber Splice Joint Protection |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | PE, EVA |
| Application | FTTH Fiber Joint Protection | Length | 45mm |
| Diamter | 2.5mm | Color | Clear, 12 Standard Color Way |
| Operating Temperation | -45°C To +120°C | Place Of Origin | China |
| High Light | L Fiber Optic Splice Sleeves ASTM D 2671,EVA 45mm fiber optic sleeve,45mm L fiber optic sleeve ASTM D 2671 |
||
Product Description

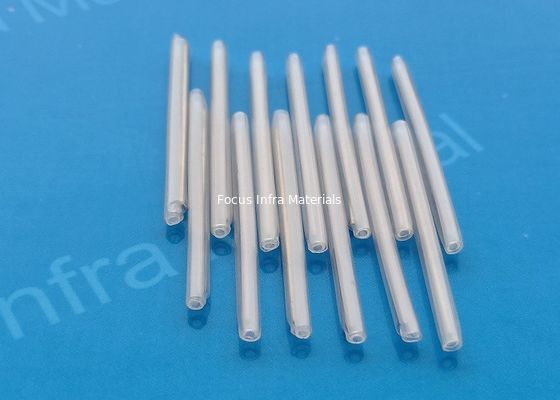

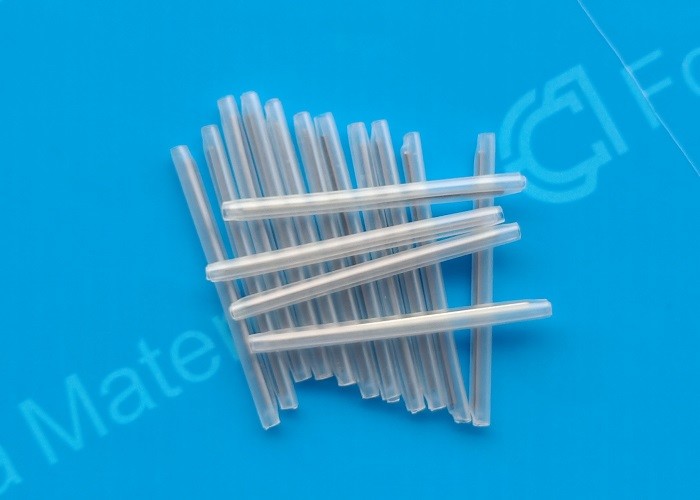

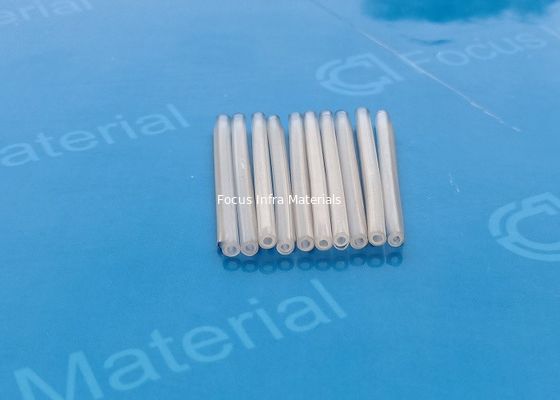

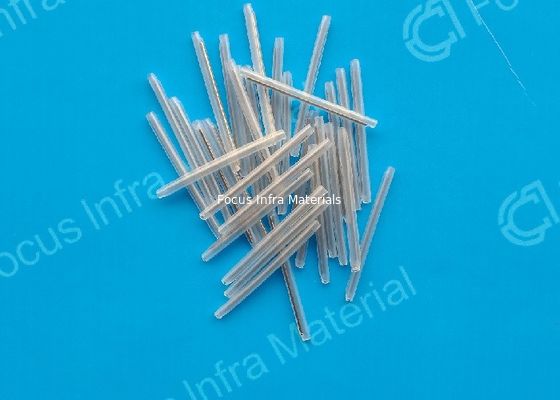

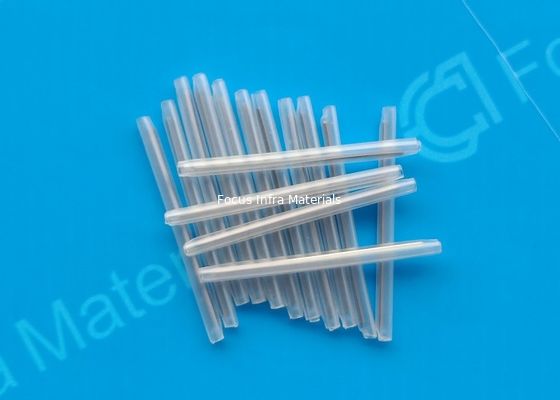

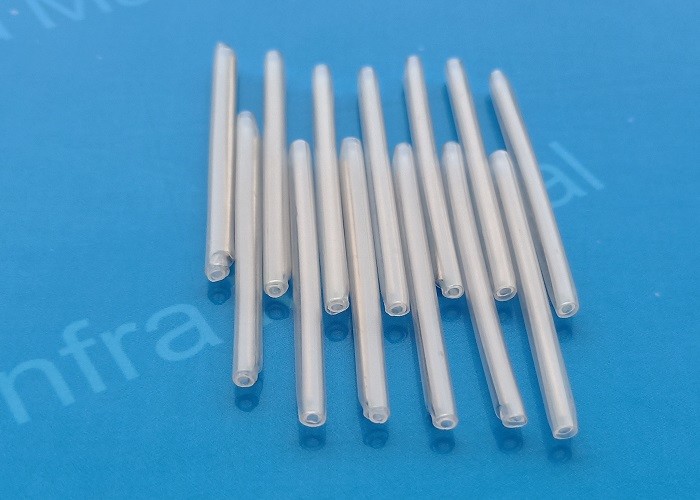

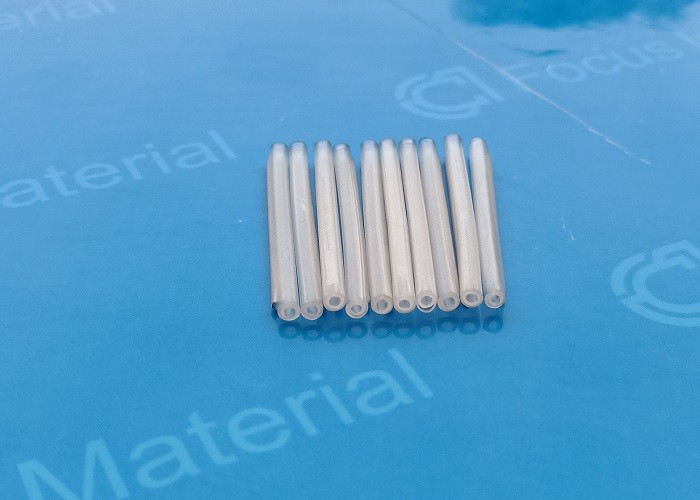

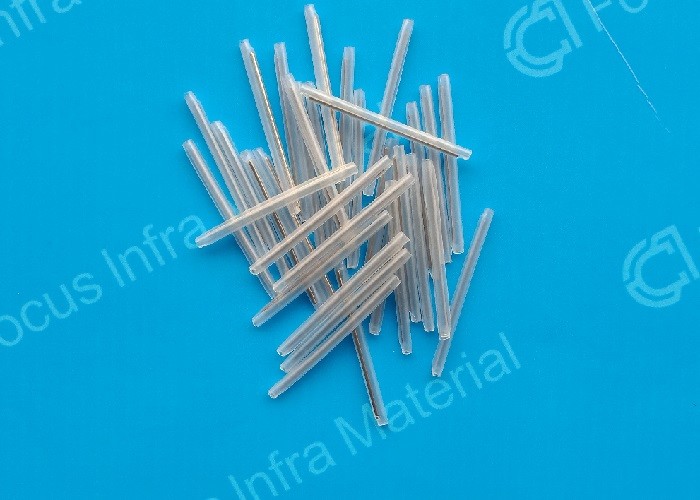

PE 2.5mm Diameter 304SS Reinforcing Steel Rod 45mm L Fiber Optic Heat Shrink Sleeves
Description:
PE 2.5mm Diameter 304SS Reinforcing Steel Rod 45mm L Fiber Optic Heat Shrink Sleeves is consist of cross linked polyolefin, hot melt tubes and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. It is friendly operated to the optic fiber during installation without damaged and micro bending.Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 SS rod offers better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
Features:
1. High transparent fiber fusion splicing heat shrinkable tube
2. 60mm non-stick inner wall, fast welding
3. No air bubbles, no fiber breakage
4. Strong practicality
5. extend the service life of the fiber
6. Selected 304 high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
