Focus Infra 40mm Fusion Splice Protection Sleeve 250um OEM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 40mm Length 250μm Micro Fiber Optic Bare Fiber Protection Fusion Heat Shrink Sleeves | Use | Fiber Fusion Splicing Protection |
|---|---|---|---|
| Brand | Focus Infra | Material | Heat Shrink Tube, 304 Stainless Steel Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | CWDM, DWDM Or More Smaller Application |
| Length | 40mm | Diamter Of Steel Rod | 0.5 Mm |
| Diameter After Shrink | 1.4 Mm | Steel Rod Pin | 1 |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 100pcs/bag Or Negotiable |
| High Light | Focus Infra 40mm fusion protection sleeve,fusion protection sleeve 250um OEM,40mm splice sleeves 250um OEM |
||
Product Description

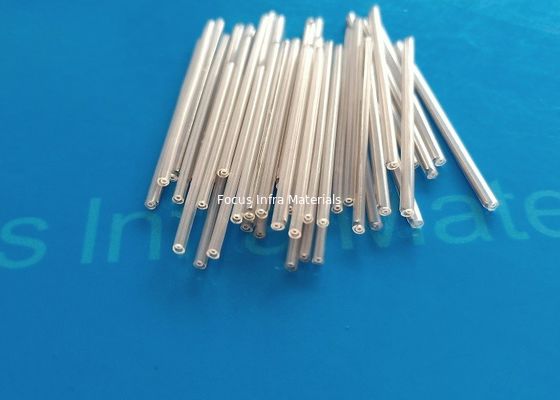

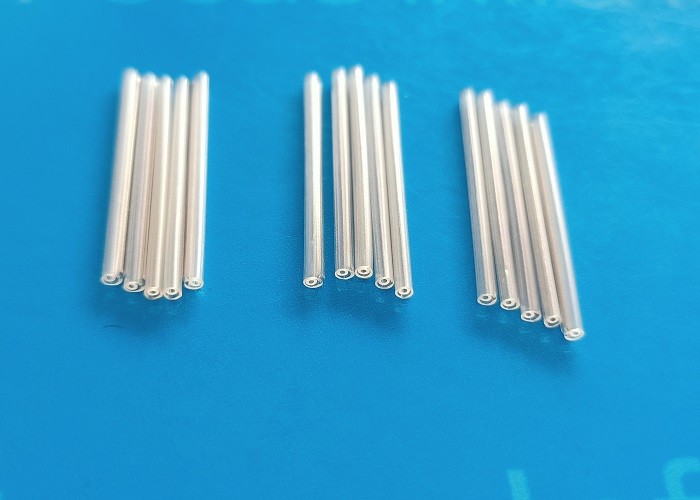

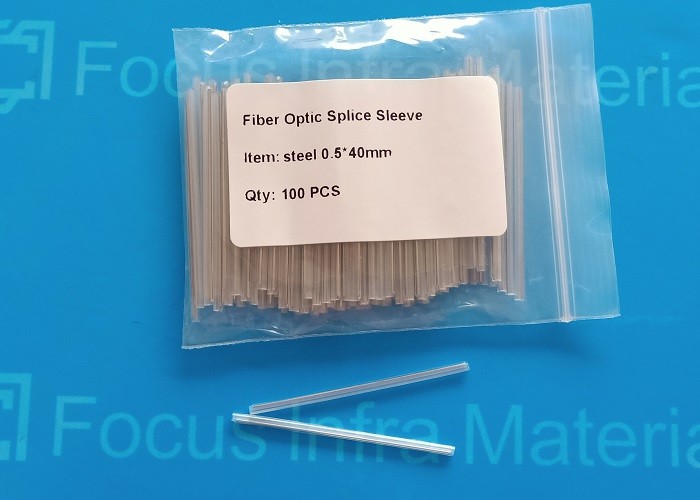

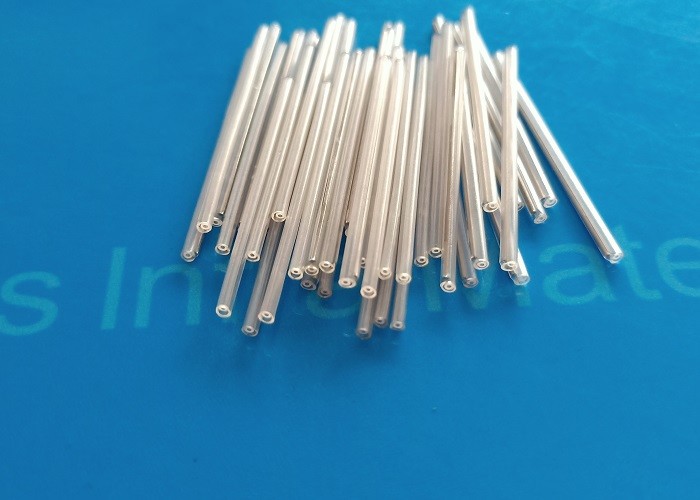

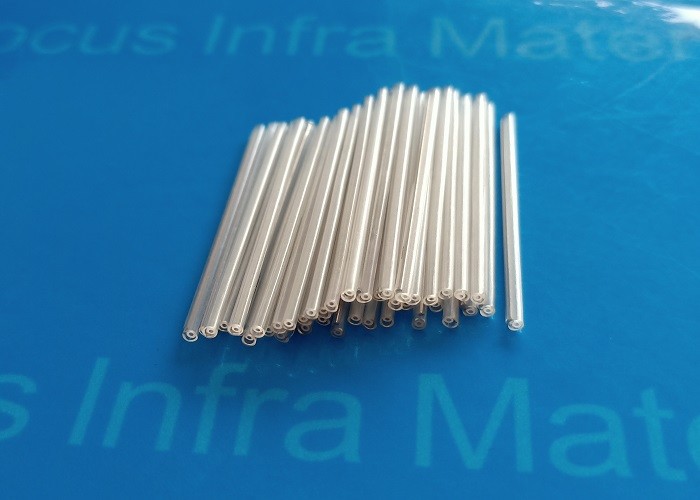

40mm Length 250μm Micro Fiber Optic Bare Fiber Protection Fusion Heat Shrink Sleeves
Description:
The Fiber Protection Fusion Heat Shrink Sleeves intends to protect (mechanically) fiber optic splices. The Fiber Protection Fusion Heat Shrink Sleeves is built from shrinkable plastic tube with metal cylinder inside. The fibers are inserted before splicing into the plastic tube. After making the splice, the shrinkable tube is heated and shrunk on the splice. It can protect the spliced fiber from being break down and unwanted bending and is coated with the plastic tube. It gives to the installer flexibility while using the spliced fibers during installation.
40mm Length 250μm Micro Fiber Optic Bare Fiber Protection Fusion Heat Shrink Sleeves is designed for 250μm bare fiber splicing protection. Length is 40mm, other length also available. it is special used in smaller application, such as CWDM, DWDM ect. 40mm Length 250μm Micro Fiber Optic Bare Fiber Protection Fusion Heat Shrink Sleeves is commonly known as an optical fiber heat shrink protect sleeve. 40mm Length 250μm Micro Fiber Optic Bare Fiber Protection Fusion Heat Shrink Sleeves is widely used in communication optical fiber splicing projects, it is consisted of a special cross-linked polyolefin, a hot melt tube and a strengthen member.
Features:
- Single holed(preshrunk) ends eliminates improper fiber threading
- Smooth, rounded-end stainless steel reinforcing member ends decrease the risk of fiber damage during installation
- Extended liner length prevents contact between the fiber and the backbone
- Protect connection point, improve the mechanical strength, it is most reliable way to protect the fusion
- Easy to operate, reducing the risk of fiber damage during installation
- Transparent tube, it is easy to see the status of spliced fiber connection
- Min. shrinks temperature: 120 °C, shrink very fast and very easy to installation
- Work temperature high (-55°C~100°C), widely used
- Sealing structure let closure have good resistance to temperature and humidity performance
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
