45mm Cable Fiber Splice Protection Sleeves FTTH FTTX FTTB
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | EVA Tube Full Shrinking 45mm Length Optical Splicing Protection Tube | Use | Single Fiber Splice Protection |
|---|---|---|---|
| Brand | Focus Infra Or OEM | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | FTTH/FTTX/FTTB Network | Length | 45mm |
| Diamter Of Steel Rod | 1.0mm | Diamter Of After Shrink | 2.5mm |
| Outer Tube Materials | EVA | Inner Tube Materials | EVA |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 100pcs/bag Or Negotiable |
| High Light | FTTH FTTX FTTB fiber splice protection sleeves,45mm fiber splice protection sleeves FTTX FTTB,FTTH FTTX FTTB fiber optic cable sleeve |
||
Product Description

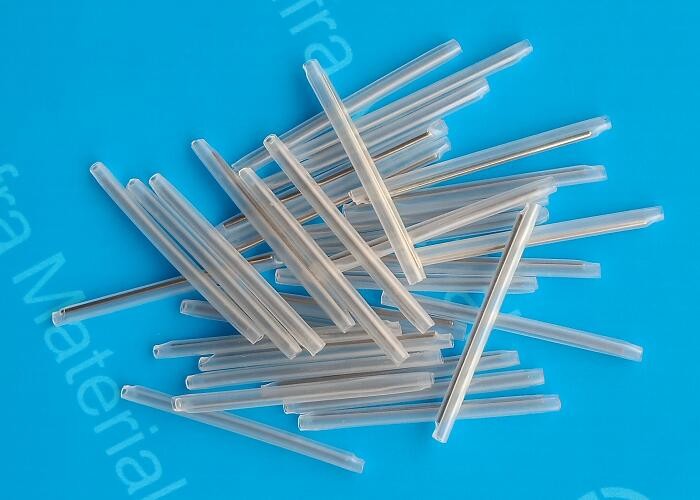

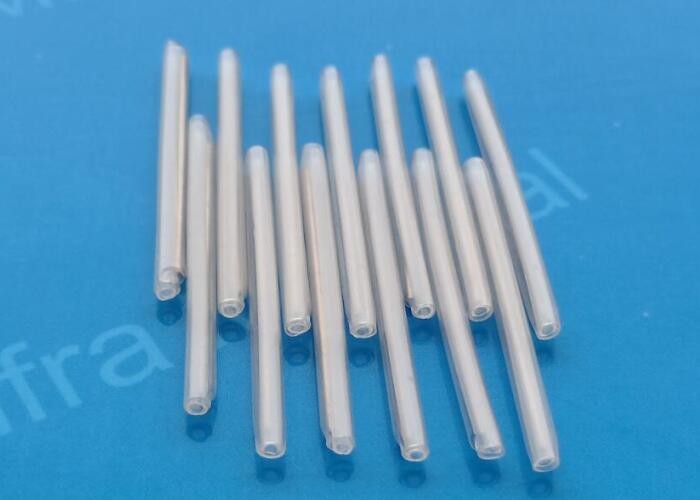

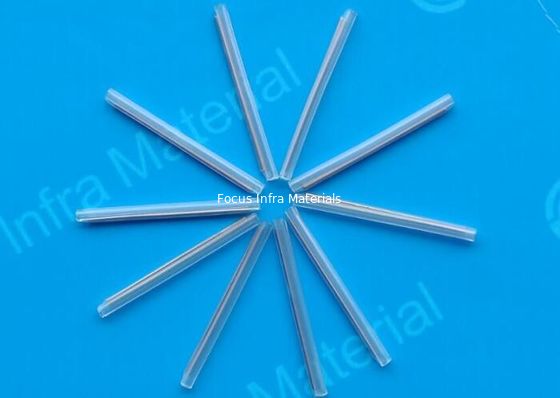

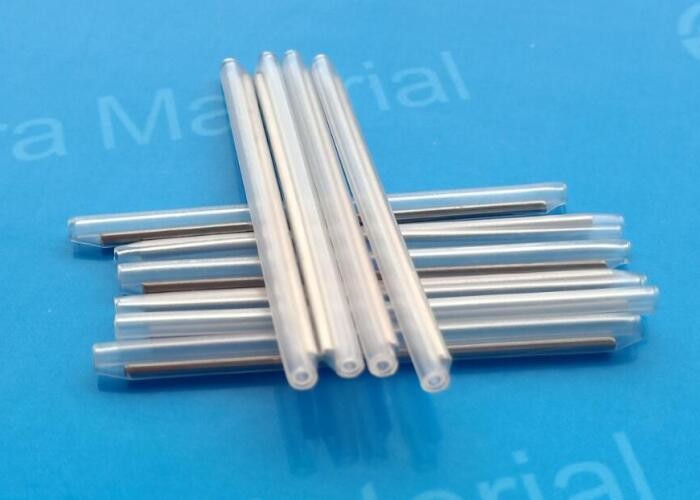

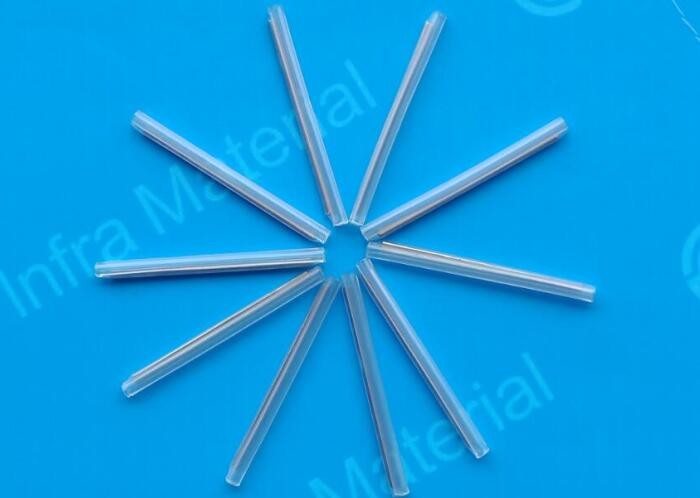

EVA Tube Full Shrinking 45mm Length Optical Splicing Protection Tube
Description:
The Optical Splicing Protection Tube is commonly known as an optical fiber heat shrink protect sleeve. The Optical Splicing Protection Tube is widely used in communication optical fiber splicing projects, it is consisted of a special cross-linked polyolefin, a hot melt tube and a strengthen member.
The Full Shrinking Splicing Protection Tube is much clear than PE Fiber Optical Splicing Protection Tube, we can view the splicing situation of the optical fiber can be seen clearly at a glance when the optical fiber is connected.
When splicing the optical fiber with the optical fiber fusion splicer, we will strip off the outer coating and protective layer of the optical fiber. This operation will make the fusion splicing point susceptible to external influences, and the mechanical strength will be reduced accordingly.
Therefore, an Optical Splicing Protection Tube is necessary to strengthen the protection of the connection part. In the maintenance and construction of optical cables, we most commonly use Optical Splicing Protection Tube. Because the Optical Splicing Protection Tube is composed of three parts: heat shrinkable tube, hot melt tube and reinforced core, the transparent outer layer of the Optical Splicing Protection Tube can be used to detect whether the light splicing part is connected correctly before shrinking, so that the optical fiber can be easily and safely carried out.
Features
- Easily use and avoid any damages to the optical fiber during installation
- Single holed(preshrunk) ends eliminates improper fiber threading
- Smooth, rounded-end stainless steel reinforcing member ends decrease the risk of fiber damage during installation
- Extended liner length prevents contact between the fiber and the backbone
- Protect connection point, improve the mechanical strength, it is most reliable way to protect the fusion
- Easy to operate, reducing the risk of fiber damage during installation
- Transparent tube, it is easy to see the status of spliced fiber connection
- Quickly shrink, improving work efficiency
- extend the service life of the fiber
- No air bubbles, no fiber breakage
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
