OEM Protection Fiber Optic Splice Sleeves 1.5*40MM PE Outer

Place of Origin China
Brand Name Focus Infra or OEM
Model Number 1.5*40MM
Minimum Order Quantity 50000pcs
Price Negotiable
Packaging Details 100pcs/bag
Delivery Time 15 days
Payment Terms T/T
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 40mm 1.5 Stainless Steel Rod Fiber Optic Splice Sleeves Use Single Fiber Splice Protection
Brand Focus Infra Or OEM Material Heat Shrink Tube, Stainless Steel Rod, Fusion Tube
Application FTTH/FTTX/FTTB Network Length 40mm
Diamter Of Steel Rod 1.5mm Diamter Of After Shrink 2.9mm
Outer Tube Materials PE Inner Tube Materials EVA
Color Clear Operating Temperation -45°C To +120°C
Place Of Origin China Pack 100pcs/bag Or Negotiable
High Light

OEM Fiber Optic Splice Sleeves


OEM sleeve fiber optic 1.5*40MM


1.5*40MM protection sleeve fiber optic PE outer

Leave a Message
Product Description

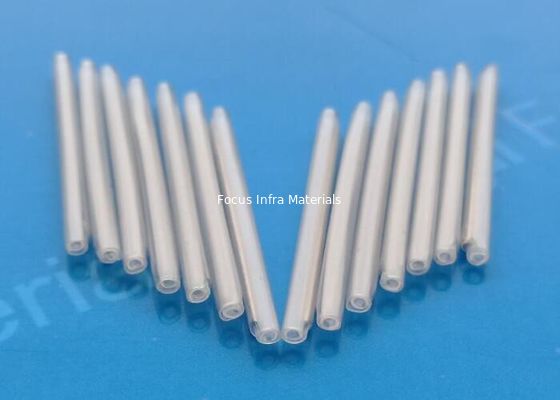

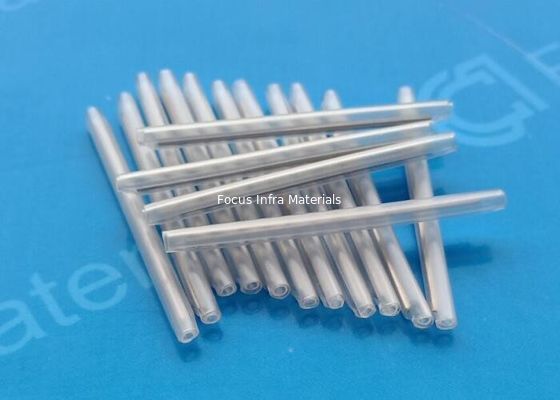

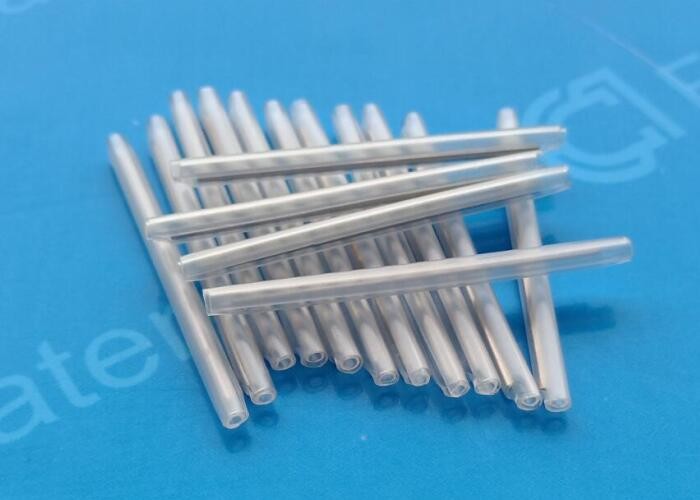

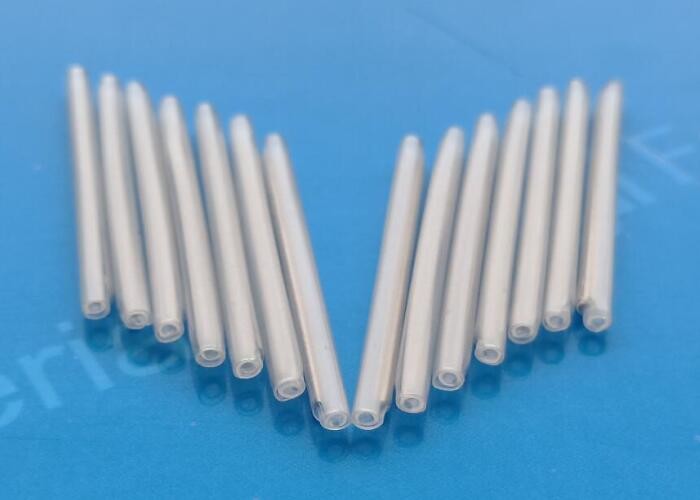

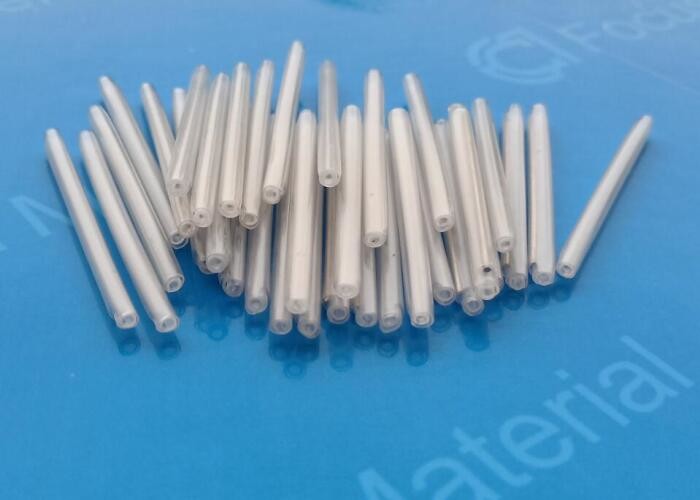

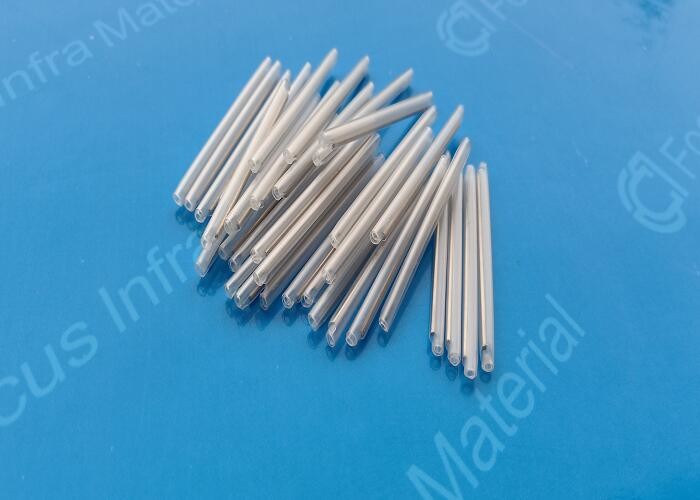

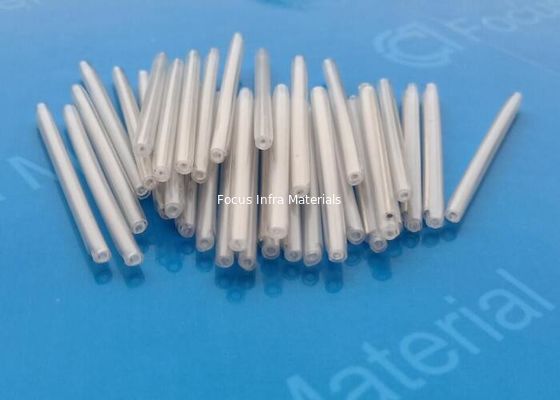

40mm Length 1.5mm Single Fiber Protect Transparent Fiber Optic Splice Sleeves




 The Fiber Optic Splice Sleeve is commonly known as an optical fiber heat shrink protect sleeve. It provides mechanical and environmental protection for fusion splices of fiber.

 A Fiber Optic Splice Sleeve is consisted of cross linked polyolefin, hot melt tubes and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices.

 Focus Infra’s Fiber Optic Splice Sleeve is compatible with most of the industry standard fiber management systems and organizers. Fiber Optic Splice Sleeve is friendly operated to the optic fiber during installation without damaged and micro bending.

  There are different specifications of Fiber Optic Splice Sleeve on the transparent fusion splice protection tube, such as a single-core color stainless steel heat-shrinkable tube, a single-core stainless steel rod type (this is transparent), a ribbon double ceramic type protection tube, etc. , for more details, you can inquiry at product center of Chengdu Focus Infra Materials’ official website.



Structure and features


1. protect splices and improve the mechanical strength.

2. simple operation, reduce the risk of damage fiber installation.

3. transparent casing, optical fiber splice clearly visible.

4. sealing structure to continue to have good resistance to temperature, humidity performance.

5. 304 stainless steel rod to protect the fiber

6. Operating Temperature: -45 – 120 °C.

7. shrink temperature range:120 °C .



Technical Parameters:


Test method

Typical data

Tensile strength(MPa)

ASTM D 2671


Elongation at Break (%)

ASTM D 2671



ISO R1183D


Dielectric strength (KV/mm)

IEC 243



IEC 243


Length rate of change (%)

ASTM D 2671
