LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler

Place of Origin China
Brand Name Focus Infra or OEM
Model Number LC APC
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details 50pcs/box
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler Brand Focus Infra Or OEM
Model Number Single Mode, SM Use FTTH, FTTX, FTTA, CATV, LANs
Insertion Loss <0.2db Return Loss >50db
Durability >1000 Matings Metal Clips With Metal Clips
Flange With Flange Application Fiber Connection
High Light

Duplex Fiber Optic Adapter


LC APC Fiber Optic Adapter


LC Optical Fiber Coupler

Leave a Message
Product Description

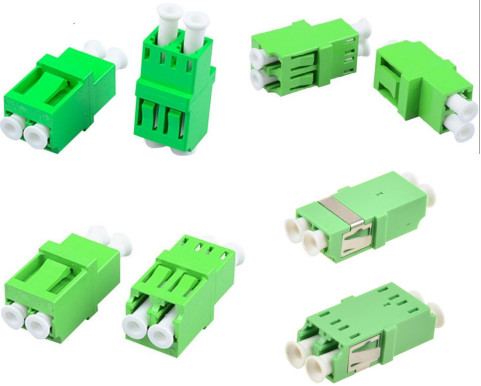

LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler






Fiber Optic Adapter, used for detachable connection between optical fibers, plays a crucial role in maximizing the coupling of light energy from transmitting fibers to receiving fibers. These adapters can be categorized based on the transmission media, such as silicon-based optical fiber single-mode and multi-mode connectors, as well as connectors that utilize plastic as the transmission medium. Additionally, they can be classified according to their structural forms, including FC, SC, ST, LC, D4, DIN, MU, MT, and various other connector types.


The "LC" connector, for instance, shares a similar shape with the SC connector but is smaller in size. Its compact design makes it suitable for applications where space is limited.


Optical fiber connectors ensure precise alignment and connection of the end faces of optical fibers, allowing efficient transmission of light signals. By enabling seamless connectivity, these connectors enable the seamless integration of optical fibers and facilitate efficient data transmission in various industries and applications.





Usually installed as wall mounted in the building or at the green belt.

The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.

SMC complex plastic or Cold rolled plate without material optional.

Fixed cable and protection.

Protect optical fiber splice joint.





Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80

LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler 0
