50db Fiber Optic Adapters FTTH FTTX SC APC Coupler With Flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX SM Green With Metal Clips With Flange Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | SM (Single Mode) | Use | FTTH, FTTX, FTTA, CATV |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | 50db Fiber Optic Adapters,FTTH FTTX sc apc coupler,sc apc coupler with Flange |
||
Product Description

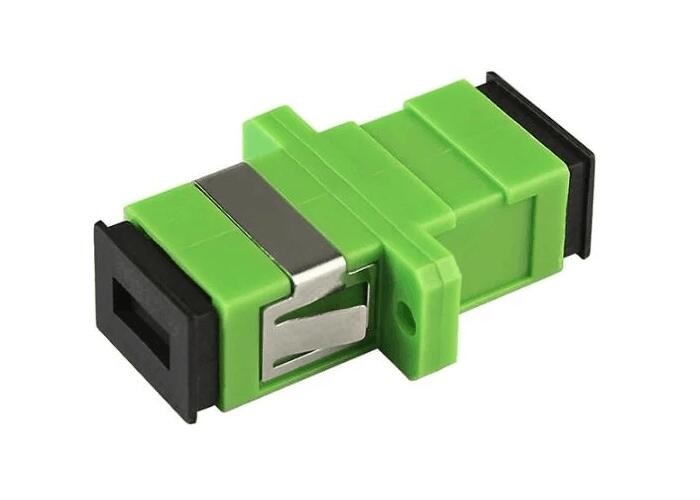

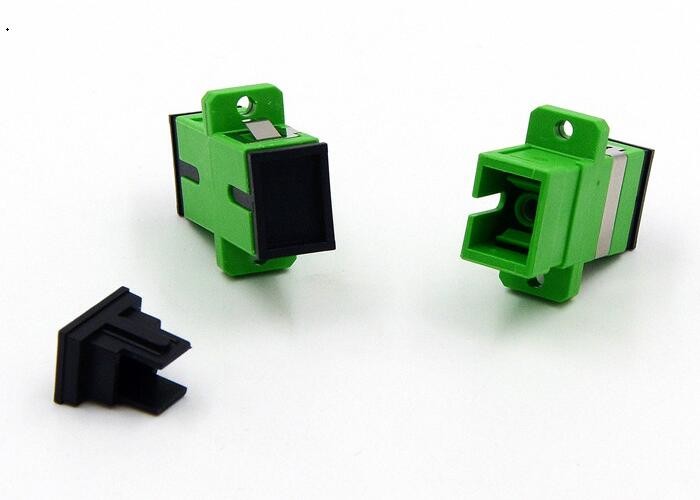

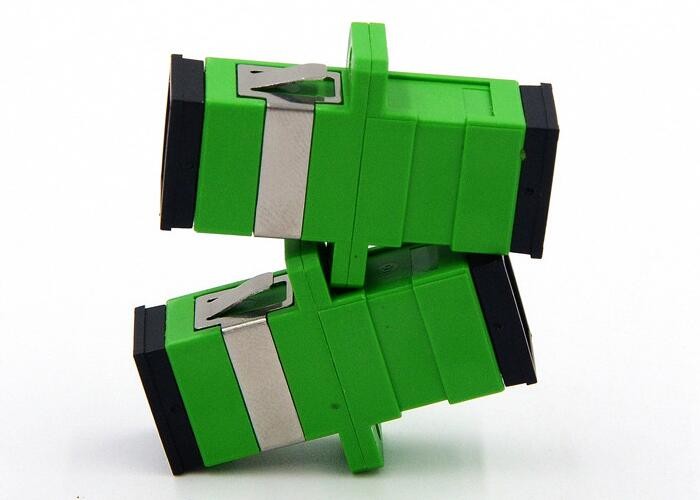

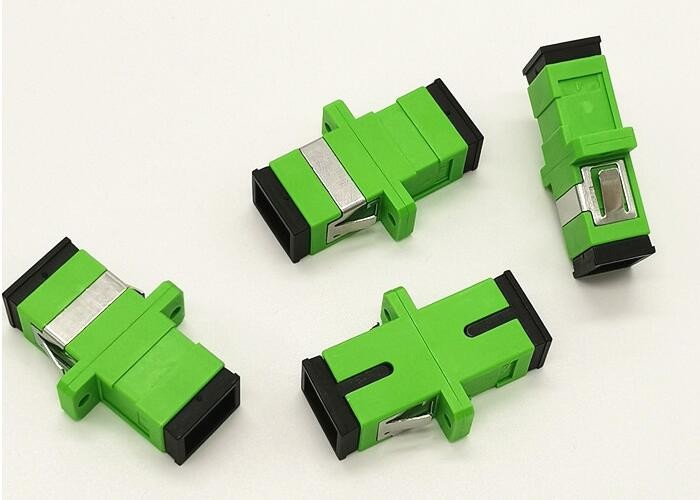

SC APC SX SM Green with Metal Clips with Flange Fiber Optic Adapter
Description:
SC APC SX SM Green with Metal Clips with Flange Fiber Optic Adapter are designed for mounting in standard rectangular cut out style panels. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements. Additionally, these Single mode SC/APC Simplex Fiber Optic Adapter are good price and fast delivery. Typical SC fiber optic adapters are with plastic housing and for single mode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color. We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.
SC Fiber Optic Adapter Applications:
1. CATV
2. Telecommunication networks
3. Local Area Networks (LANs)
4. Metro networks
5. Data processing networks
6. Industrial, military and medical
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
