Focus Infra Simplex LC To SC Hybrid Fiber Adapter With Metal Clips

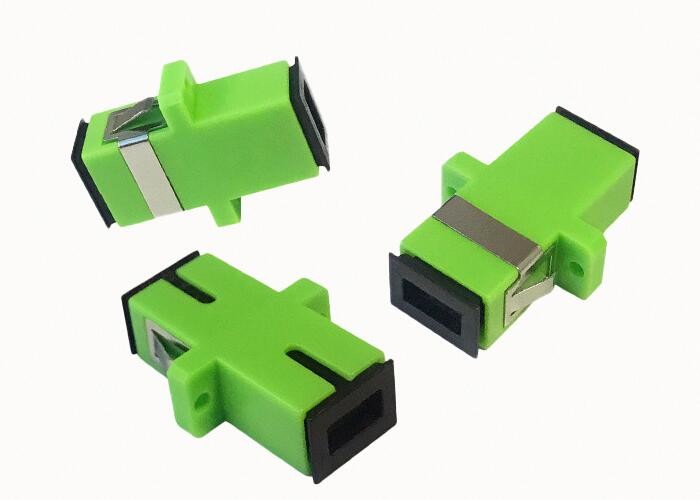

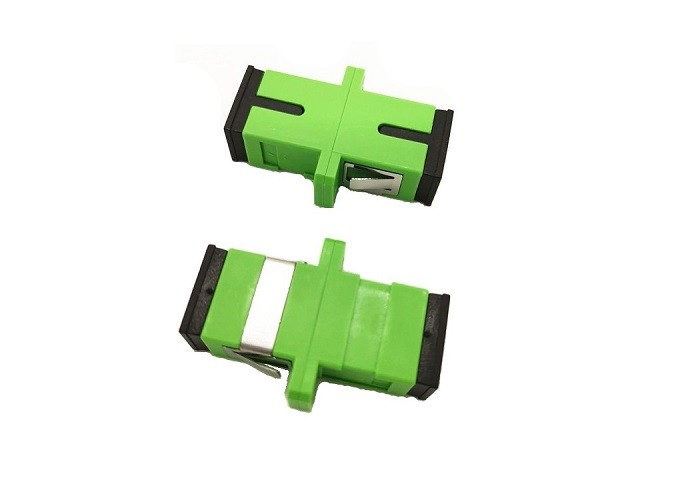

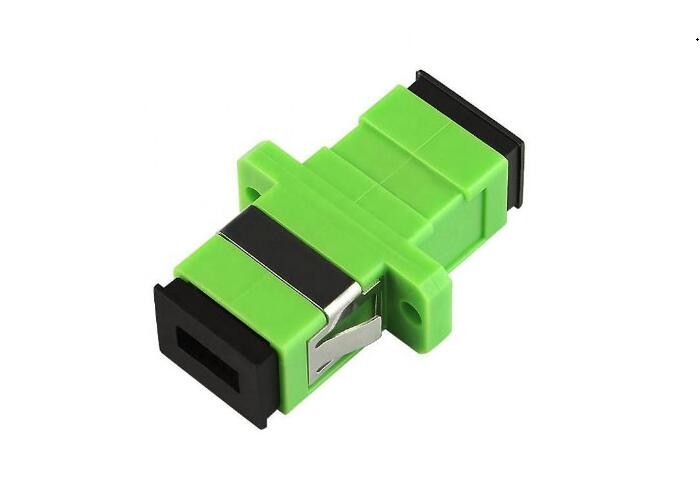

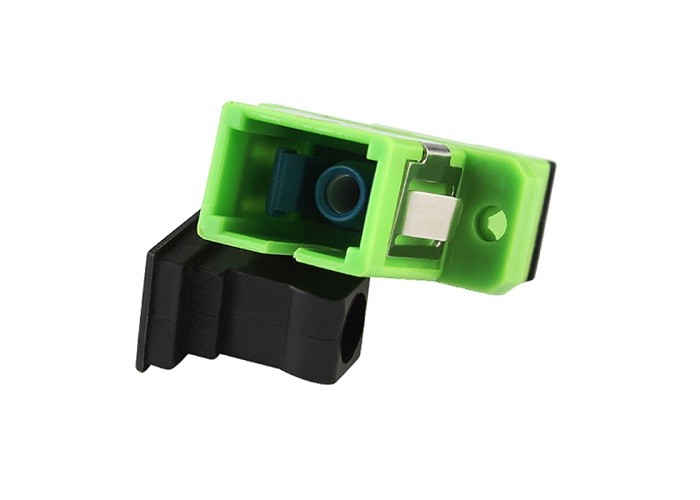

SC APC Simplex SM with Metal Clips with Flange Fiber Optic Coupler

Description:

  Single mode SC/APC Simplex Fiber Optic Adapters are designed for mounting in standard rectangular cut out style panels. Typical SC fiber optic adapters are with plastic housing and for single mode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color. We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.

  When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber).

Focus Infra’s Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

APPLICATIONS

CATV

Telecommunication networks

Local Area Networks (LANs)

Metro networks

Data processing networks

Industrial, military and medical

Feature:

1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
