Industrial SC Fiber Adapter With Metal Clips Simplex Connector With Flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Simplex Single Mode With Metal Clips With Flanges SC UPC Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | Industrial sc fiber adapter,sc fiber adapter with Metal Clips,simplex connector With Flange |
||
Product Description

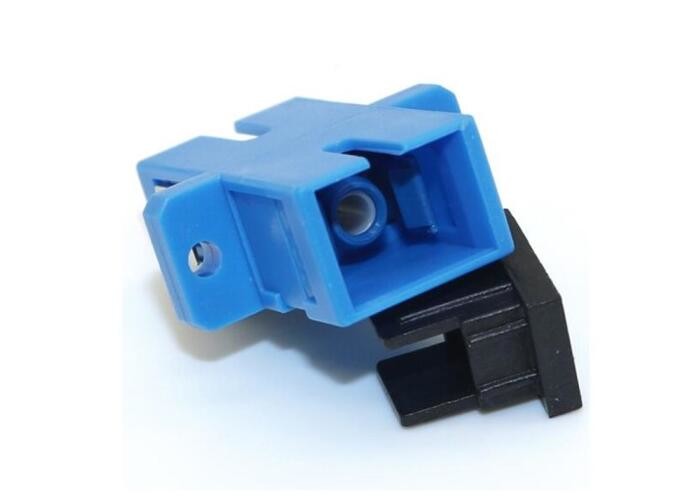

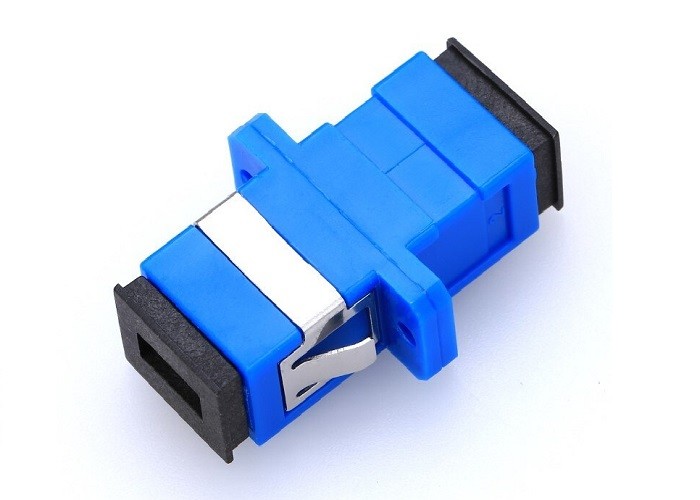

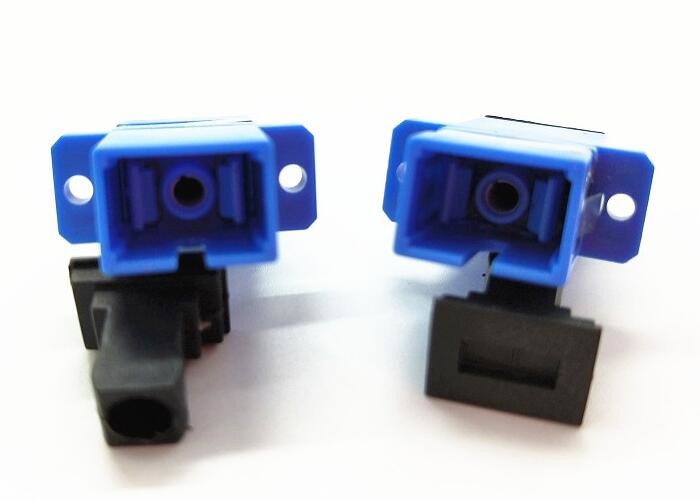

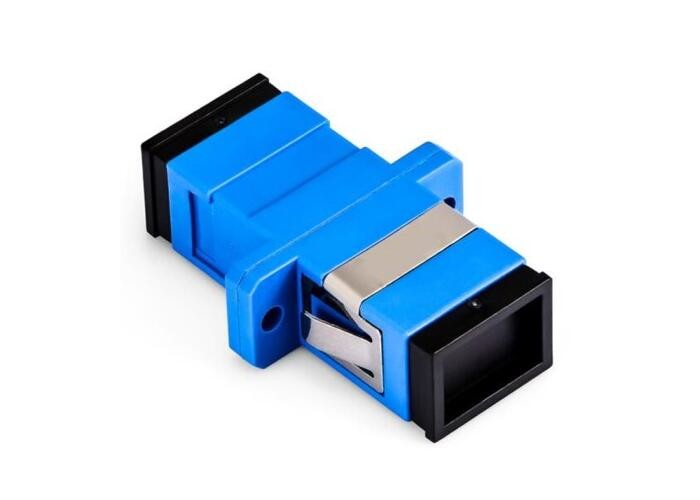

Simplex Single Mode With Metal Clips With Flanges SC UPC Fiber Optic Adapter
Description:
Typical SC fiber optic adapters are with plastic housing and Simplex Single Mode With Metal Clips With Flanges SC UPC Fiber Optic Adapter is blue color, Focus Infra supplys SC fiber optic adapters in various types including single mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex versions. Both ends of the fiber optic adapter can be inserted into fiber optic connectors of different interface types to realize the conversion between different interfaces such as FC, SC, ST, LC, MTRJ, MPO, E2000, etc.
Applications:
1. Fiber Optic Telecommunications
2. LAN (Local Area Network)
3. FTTH (Fiber To The Home)
4. CATV&CCTV System
5. High speed transmission systems
6. Fiber optic sensing
7. Industrial , Mechanical and Military
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
