SC APC LC UPC Adapter Single Mode OEM Optic Fiber Adapter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX SM With Metal Clips With Flange Fiber Optic Coupler | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | SM Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | SC APC LC UPC adapter,LC UPC adapter Single Mode,OEM optic fiber adapter |
||
Product Description

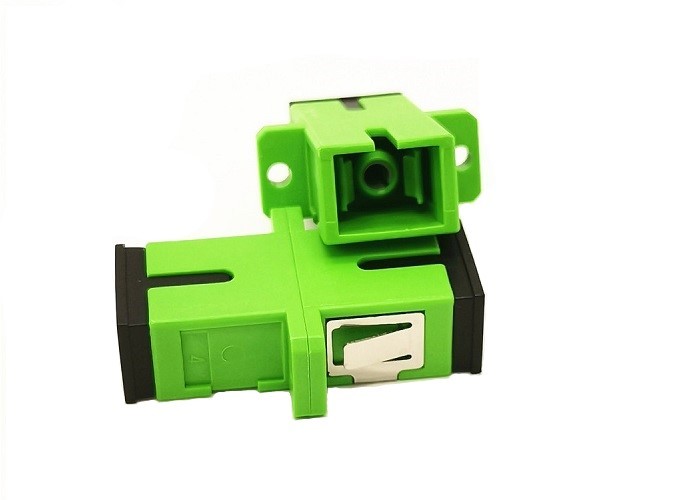

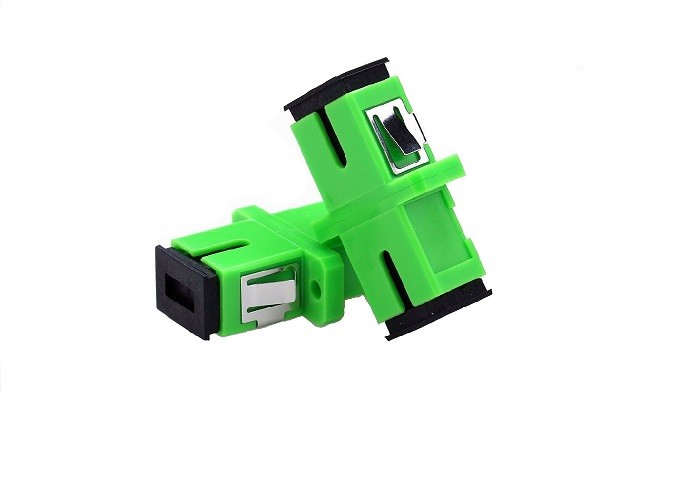

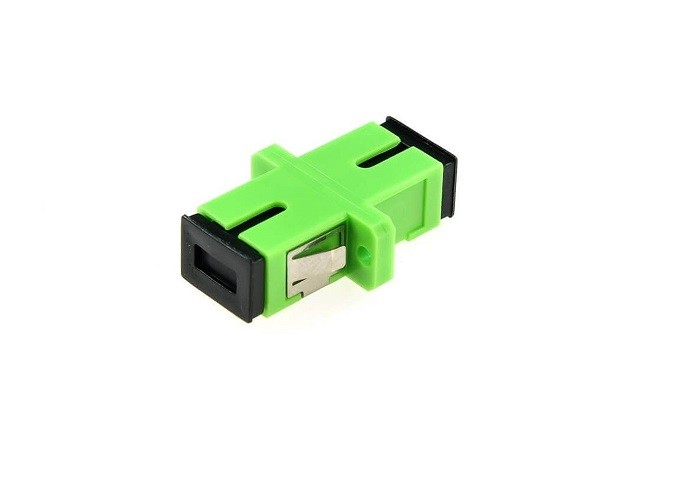

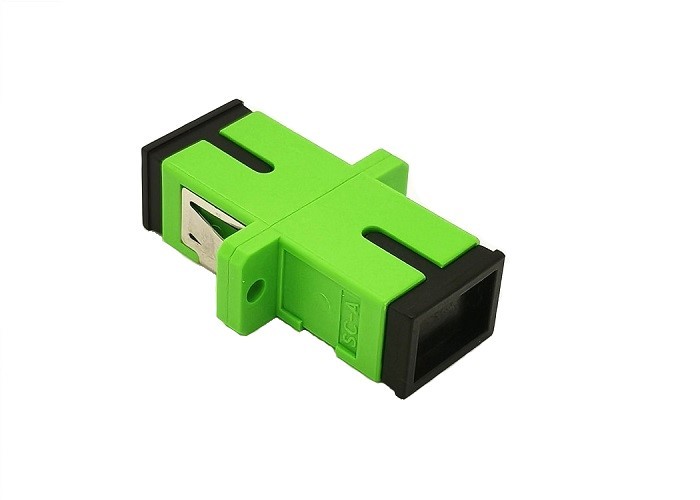

SC APC SX SM with Metal Clips with Flange Fiber Optic Coupler
Description:
SC APC SX SM with Metal Clips with Flange Fiber Optic Coupler are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. Focus Infra’s Fiber Optic Coupler is designed for both multimode and single mode cables. It is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. With Low insertion loss and back reflection loss performance, Focus Infra’s Fiber Optic Coupler is well sold in the the market.
SC APC SX SM with Metal Clips with Flange Fiber Optic Coupler is appplicated for Fiber Optic Telecommunications , LAN (Local Area Network) and FTTH (Fiber To The Home), CATV & CCTV System,
Characteristics:
1.Low IL & high RL
2.Good exchangeability & durability
3.High temperature durability
4.Standard:Telcordia GR-326-Core
5.Patch cords accord with GR-326,ISO9001,ROHS
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
