High Performance Fiber Optic Adapters SC APC Connector Adapter Coupler
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler | Brand | Focus Infra |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Application | Fiber Connection |
| High Light | Fiber Optic Adapters SC APC,sc connector adapter Coupler,sc fiber optic adapter Coupler |
||
Product Description

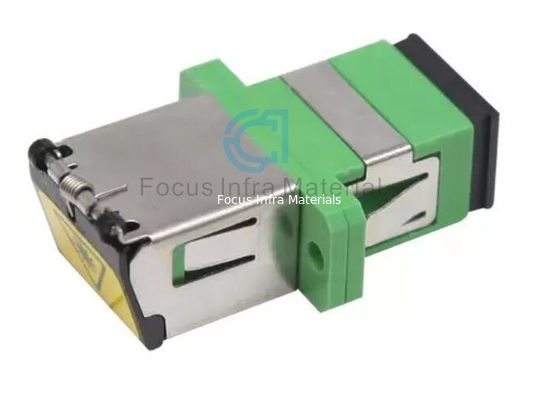

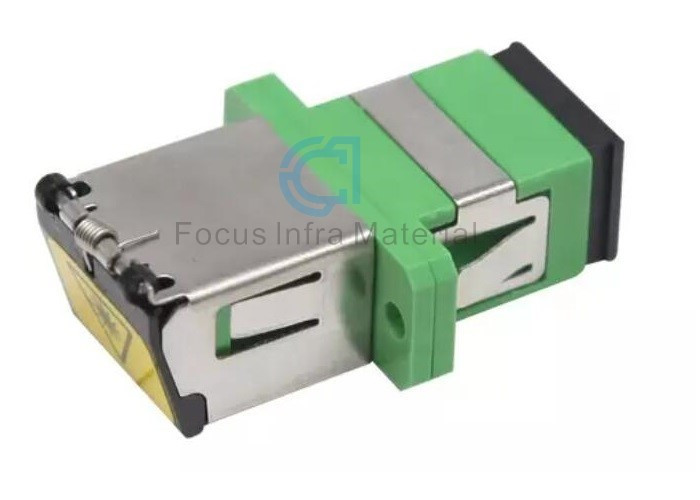

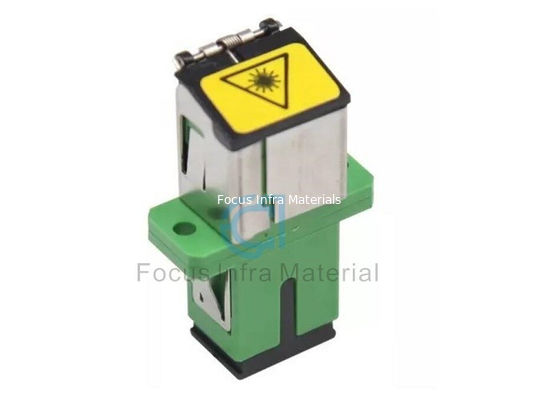

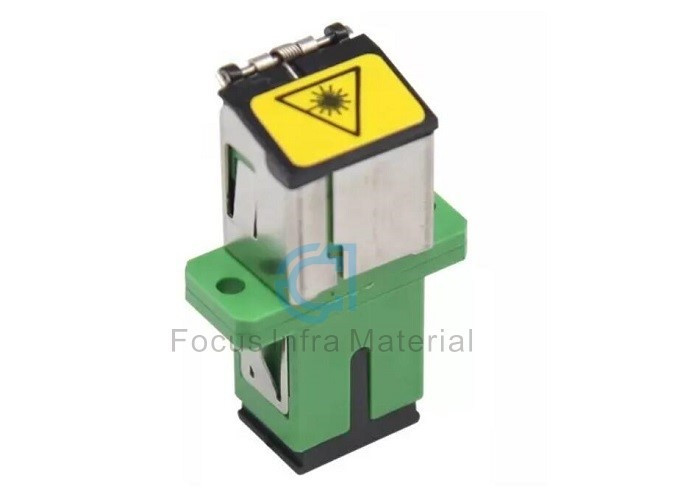

Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler
Description:
Focus Infra’s Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler is is also called flange plate adapter or coupler adapter. According to the shape of the fiber end face, it is divided into FC, PC (including SPC or UPC) and APC; according to the number of fiber cores, there are also single-core and multi-core (such as MT-RJ). Optical fiber connectors are widely used and have many varieties. In the actual application process, they are generally distinguished according to the structure of the optical fiber connector.
Focus Infra's fiber adapter, sometimes called a coupler, is a small device designed to terminate or connect fiber optic cables or fiber optic connectors between two fiber optic lines.
The adapter connects the optical fiber through an internal open sleeve to ensure the highest connection performance between optical fiber connectors. In order to fix on various panels, various fine fixing flanges are also designed.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
