SC APC SM SX Ftth Fiber Optic Cable Adapters Connectors Single Mode Green
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fibre Optic Adapter Green Color SM SX Ftth SC APC With Metal Clips | Brand | Focus Infra |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | Yes | Application | Fiber Connection |
| High Light | SC APC fiber optic cable adapters,SM SX fiber optic adapters connectors,Ftth fiber optic connectors |
||
Product Description

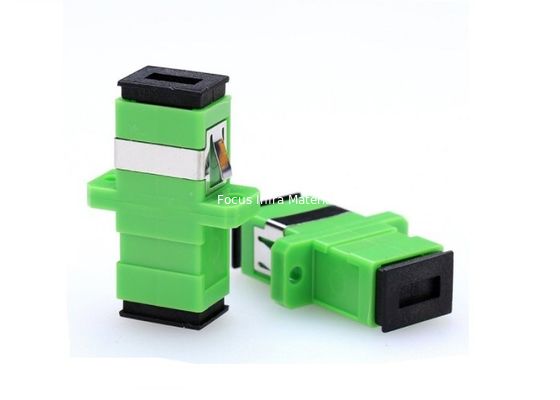

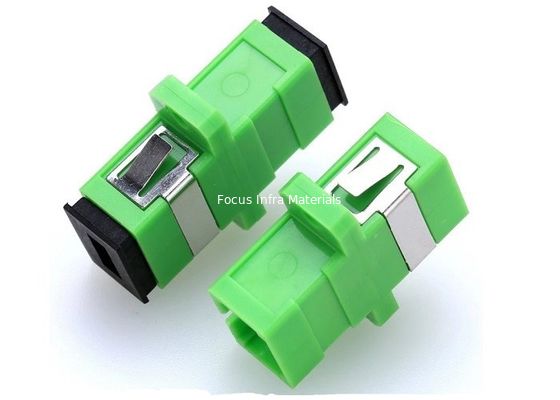

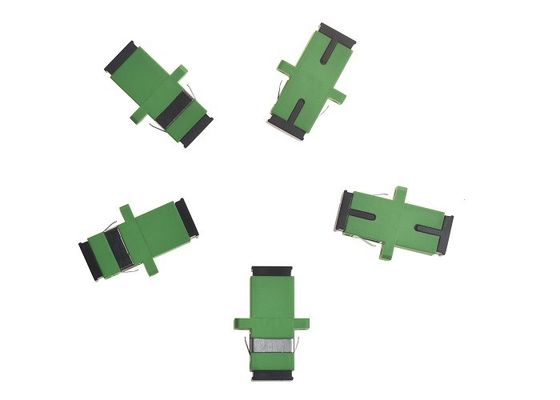

Fibre Optic Adapter Green Color SM SX Ftth SC APC With Metal Clips
Description:
Focus Infra’s Fibre Optic Adapter Green Color SM SX Ftth SC APC With Metal Clips is is also called flange plate adapter or coupler adapter. According to the shape of the fiber end face, it is divided into FC, PC (including SPC or UPC) and APC; according to the number of fiber cores, there are also single-core and multi-core (such as MT-RJ). Optical fiber connectors are widely used and have many varieties. In the actual application process, they are generally distinguished according to the structure of the optical fiber connector.
Focus Infra’s Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
