2mm 3mm Simplex Fiber Optic Patch Cords G652D G657A1 G657A2
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LC UPC-LC UPC Simplex 2.0mm Or 3.0mm Jumper Cable Fiber Optic Patch Cord | Mode Type | SM Single Mode |
|---|---|---|---|
| Outer Jacket | PVC/LSZH | Cable Diameter | 2.0mm/3.0mm Cable |
| Connector Type | LC UPC To LC UPC | Application | FTTH System Connections To CATV Telecommunication Networks |
| Ferrule End -face | LC UPC | Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| High Light | 2mm 3mm Fiber Optic Patch Cords,simplex fiber patch cord G652D,simplex fiber patch cord G657A1 |
||
Product Description

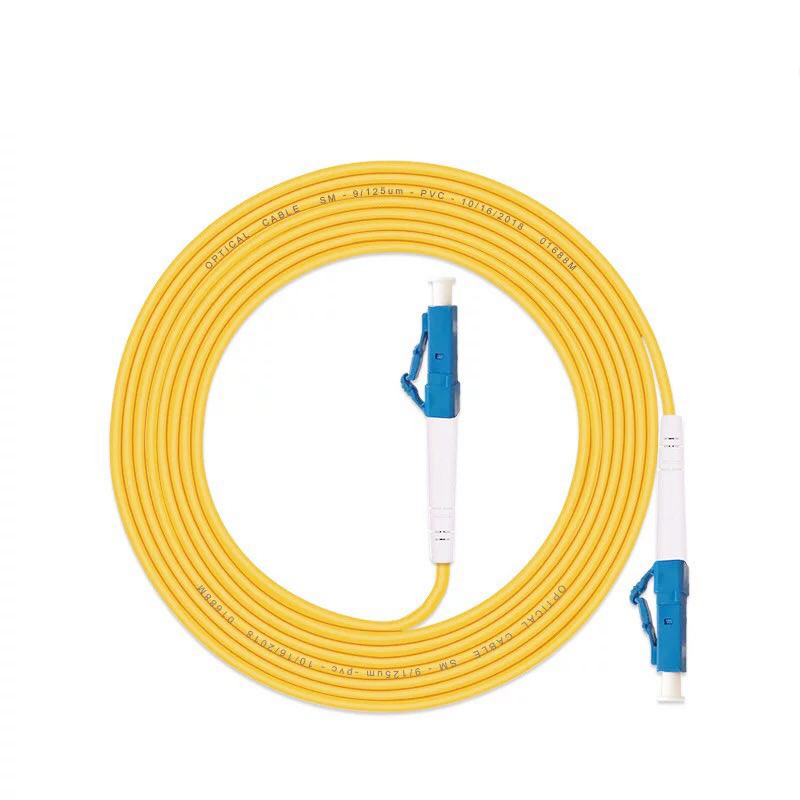

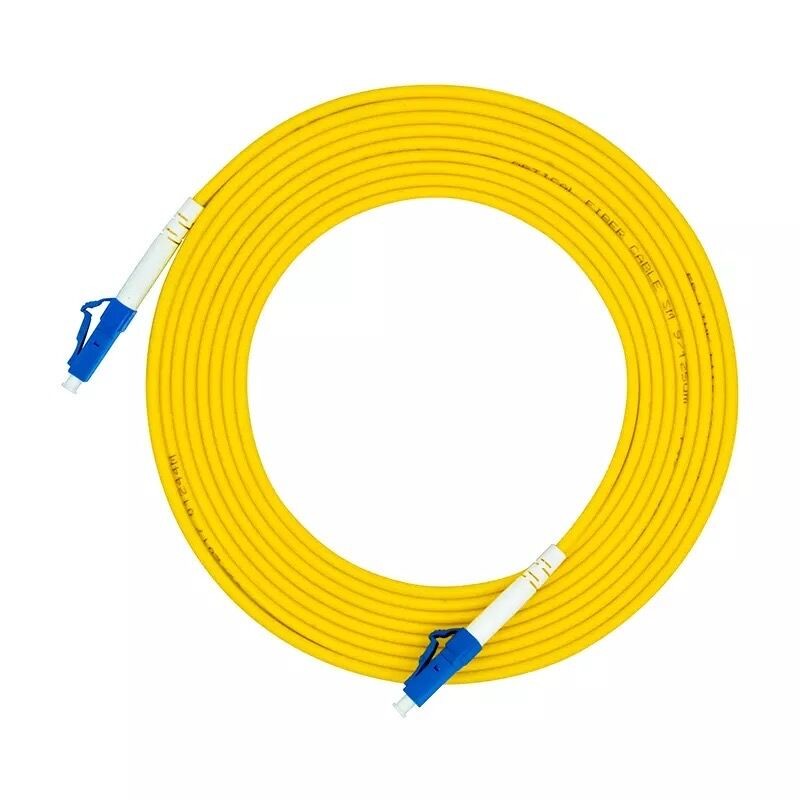

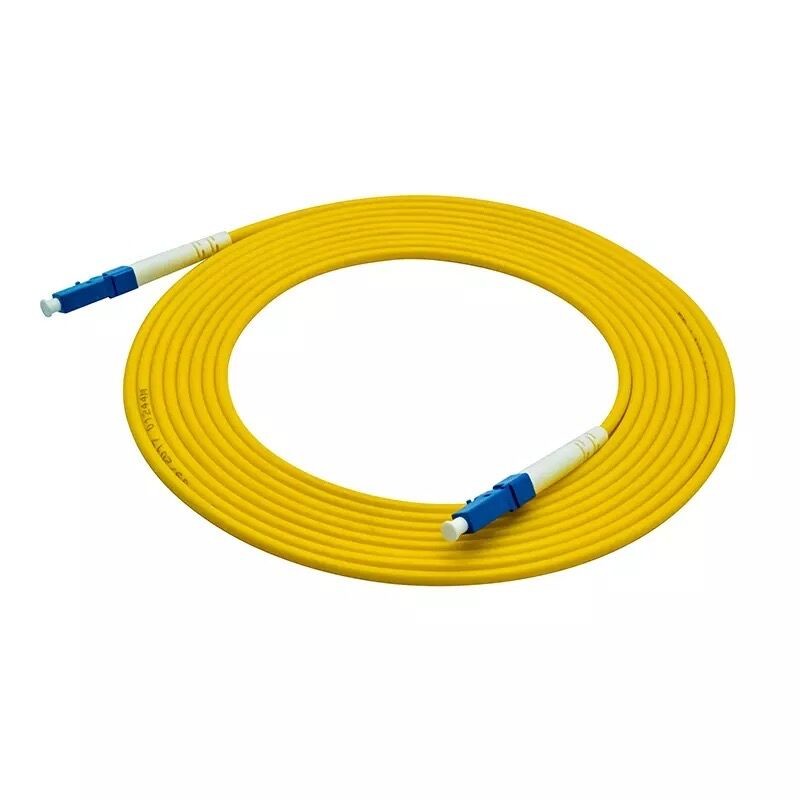

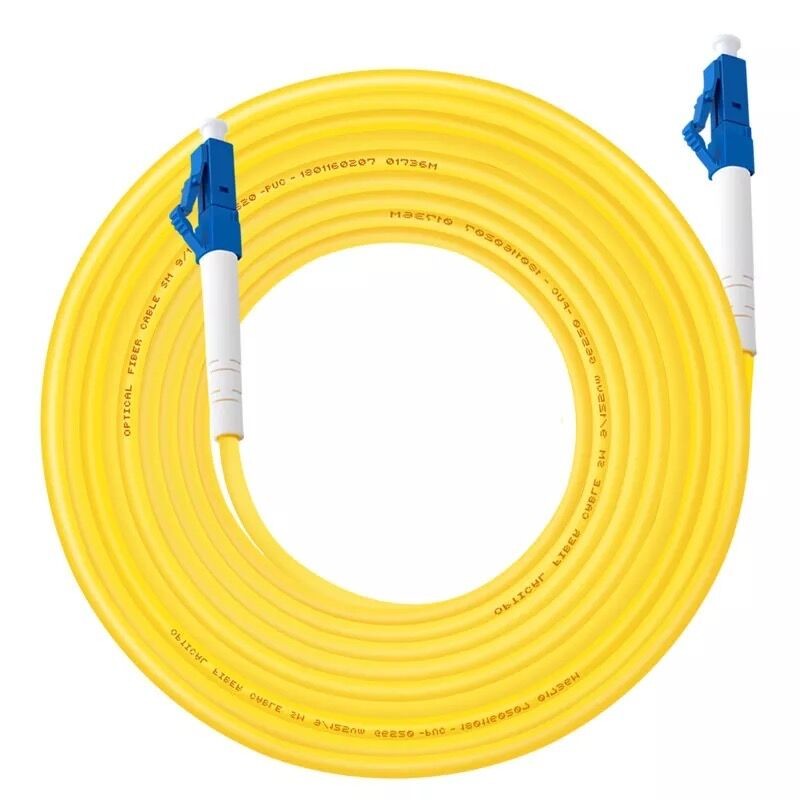

LC UPC-LC UPC Simplex 2.0mm or 3.0mm Jumper Cable Fiber Optic Patch Cord
Description:
LC UPC-LC UPC Simplex 2.0mm or 3.0mm Jumper Cable Fiber Optic Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.
Single mode fiber: generally, the optical fiber jumper is represented by yellow, and the connector and protective sleeve are blue; Long transmission distance.
Multi mode fiber: generally, the optical fiber jumper is represented by orange or gray, and the connector and protective sleeve are beige or black; Short transmission distance.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
Application:
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
7. Telecommunication networks
8. Fiber optic communication networks
9. CATV, LAN, MAN, WAN, Test &Measurement
10. Military industry Optical access network
Features:
1. Low Insertion loss
2. High return loss
3. Excellent Environmental Adaptability
4. Meets Telecordia-GR-326-CORE specifications
5. Low insertion loss
6. Ultra low back reflection
7. For 3.0mm, 2.0mm jacket or 900μm buffer.
