SC To LC Single Mode Fiber Patch Cable 2mm PVC Fiber Optic Jumper
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode Type | Snglemode | Outer Jacket | PVC |
|---|---|---|---|
| Color | Orange | Cable Diameter | 0.9mm/2.0mm/3.0mm Cable |
| Connector Type | LC | Application | FTTH System Connections To CATV Telecommunication Networks |
| Ferrule End -face | APC | Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| High Light | PVC fiber optic jumper,sc to lc single mode fiber patch cable 2mm,sc to lc single mode fiber patch cable |
||
Product Description

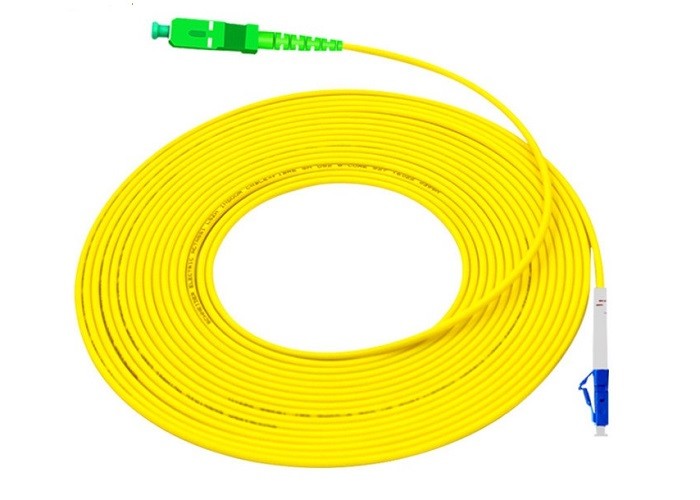

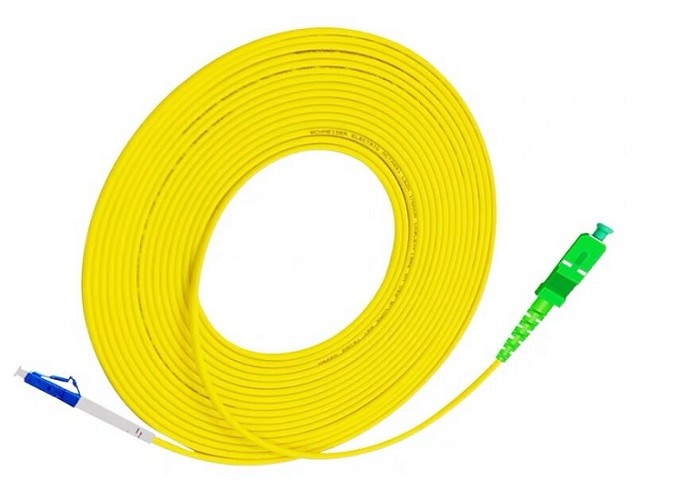

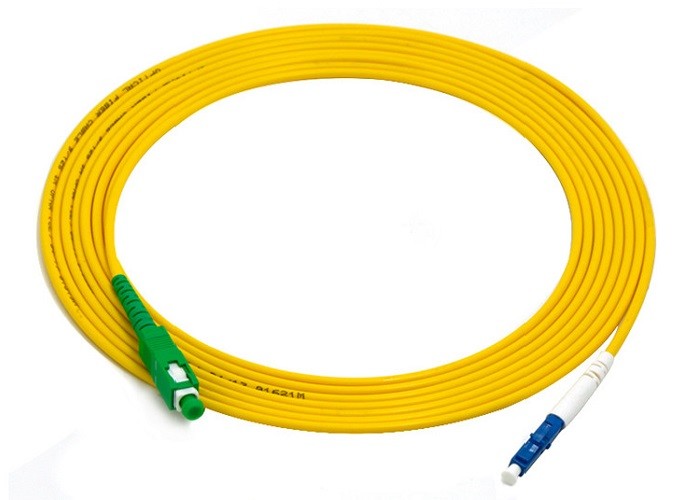

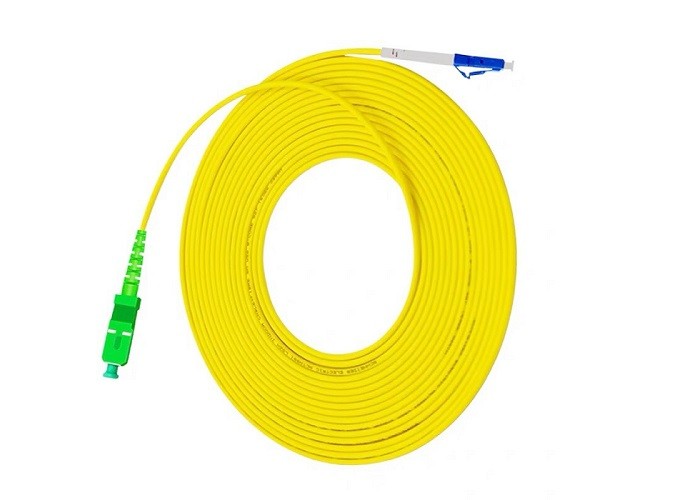

Fibra Optica SC APC to LC UPC Simplex 2.0mm PVC Single Mode Fiber Patch Cable Jumper Fiber Patch Cord
Description:
The Fibra Optica SC APC to LC UPC Simplex 2.0mm PVC Single Mode Fiber Patch Cable Jumper Fiber Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.
According to different transmission media, optical fiber jumpers can be divided into common single-mode and multi-mode jumpers of silicon-based optical fiber, as well as other optical fiber jumpers with plastic as transmission media; According to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper, MTRJ jumper, MPO jumper, Mu jumper, SMA jumper, FDDI jumper, E2000 jumper, din4 jumper, D4 jumper and so on. Common optical fiber jumpers can also be divided into FC-FC, fc-sc, fc-lc, fc-st, SC-SC, sc-st, etc. LC type optical fiber jumper: connector connecting SFP module, which is made of modular jack (RJ) latch mechanism with convenient operation.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
3. Application
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
7. Defense combat readiness
8. Telecommunication networks
9. Fiber optic communication networks
10. CATV, LAN, MAN, WAN, Test &Measurement
Features:
1. Low Insertion loss
2. High return loss
3. Good Repeatability
4. Good Interchange
5. Excellent Environmental Adaptability
6. SM & MM available
