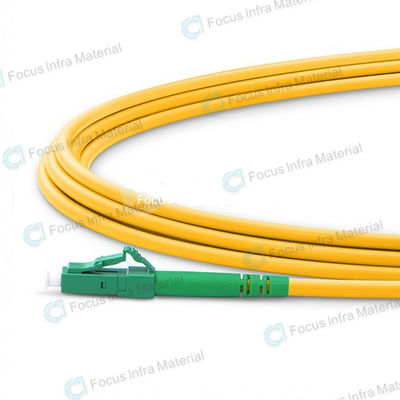

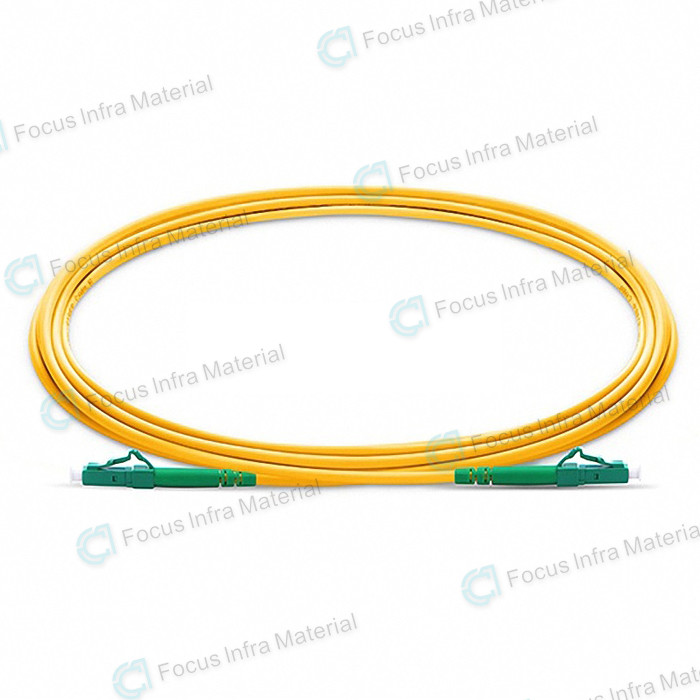

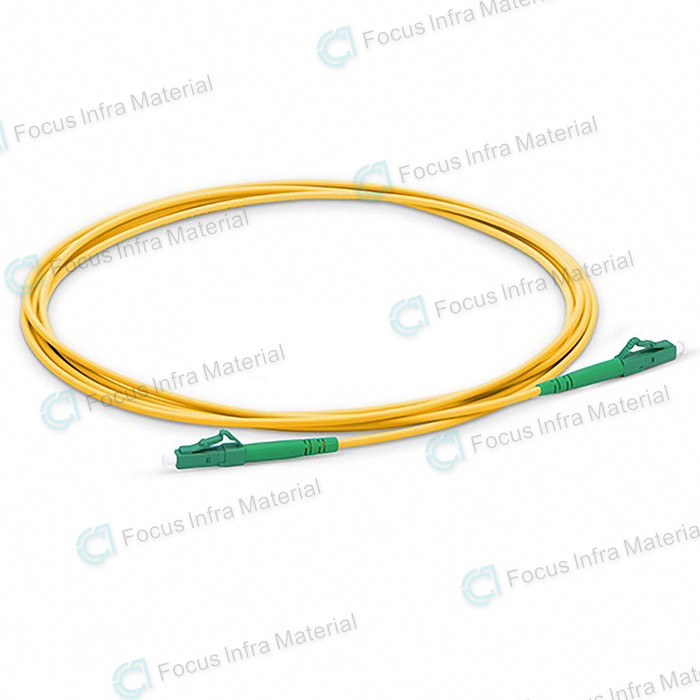

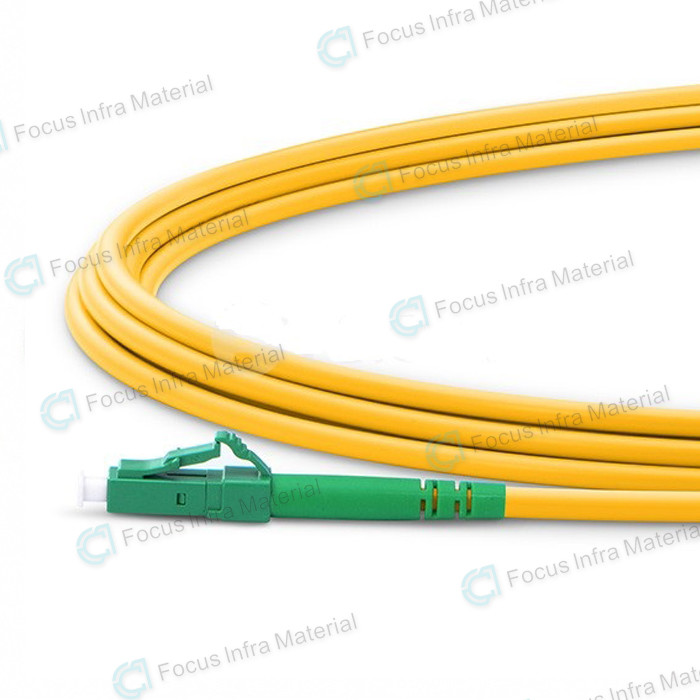

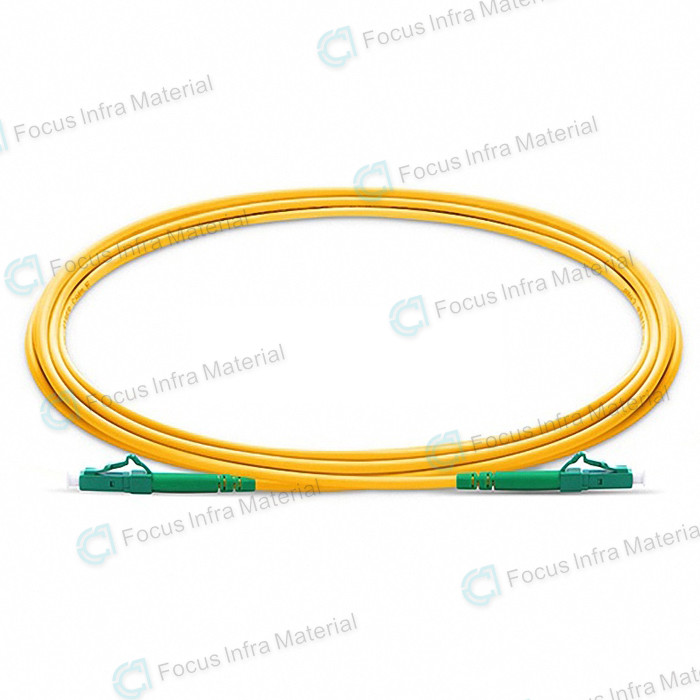

Single Mode Fiber Optic Patch Cords Simplex Duplex ISO9001
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode Type | Snglemode/Multimode | Outer Jacket | PVC/LSZH/OFNP/OFNR |
|---|---|---|---|
| Color | Orange/Yellow/ Blue/Aqua | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Core | Simplex/Duplex | Connector Type | SC/LC/FC/ST |
| Certification | ISO9001/RoHS | Application | FTTH System Connections To CATV Telecommunication Networks |
| Ferrule End -face | PC, Upc, APC | Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| High Light | single mode Fiber Optic Patch Cords,single mode fiber patch cord Simplex Duplex,single mode fiber patch cord ISO9001 |
||
Product Description
Description:
A patch cord can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. And it can be combinated any items, including angled (angle polish) SCA, MUA, STA, LCA, MPO Angled.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Features
Quick, highly repeatable, low-loss connections
Simplex & Duples
Singlemode & Multimode
PC, UPC & APC polishing
Various boot (cable) sizes available
FC/ LC/ SC/ ST/ MTR/ MPO connectors available
Interferential parameters
Hybrid patch-cords are available upon request
Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: 3.0mm,2.0mm, 0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
