35mm Ribbon Fiber Splice Sleeve CWDM DWDM Fiber Heat Shrink 250um
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube | Use | Fiber Fusion Splicing Protection |
|---|---|---|---|
| Brand | Focus Infra | Material | Heat Shrink Tube, Stainless Steel Rod, Fusion Tube |
| Application | Optical Fiber Fusion Splicing, Protecting Optical Fiber Cable | Fit For | CWDM, DWDM Or More Smaller Application |
| Length | 35mm | Diamter Of Steel Rod | 0.5 Mm |
| Diameter After Shrink | 1.4 Mm | Steel Rod Pin | 1 |
| Color | Clear | Operating Temperation | -45°C To +120°C |
| Place Of Origin | China | Pack | 100pcs/bag Or 200pcs/bag |
| High Light | CWDM DWDM fiber heat shrink,35mm Ribbon Fiber Splice Sleeve,fiber heat shrink 250um |
||
Product Description

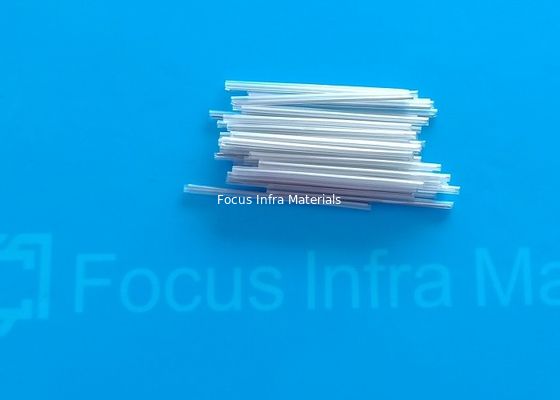

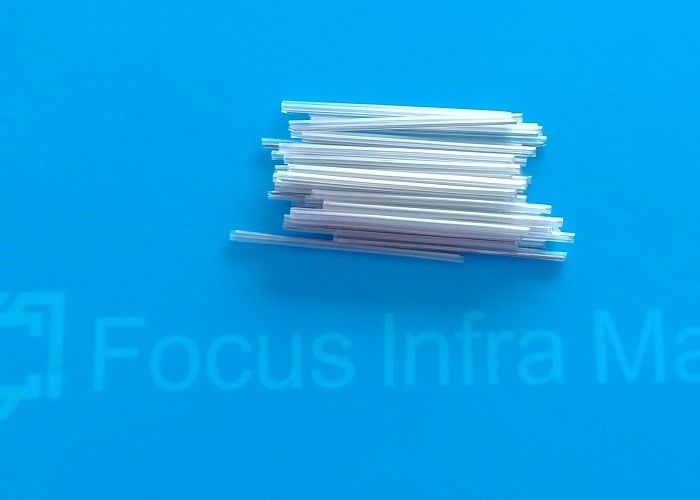

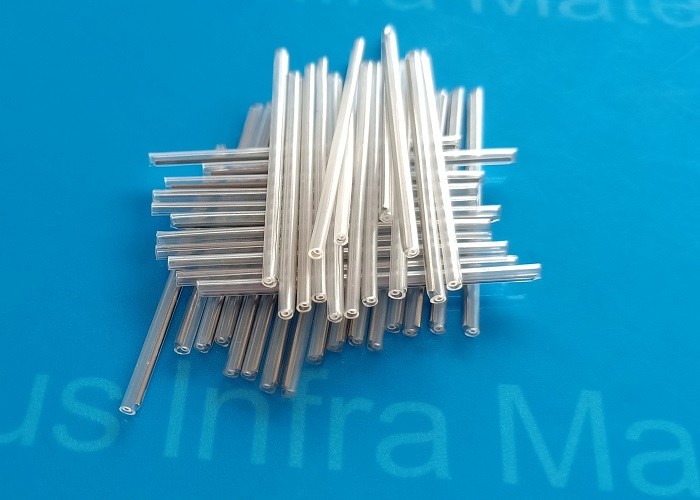

35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube
Description:
35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube is designed for 250μm bare fiber splicing protection. Length is 35mm only, it is special used in smaller application, such as CWDM, DWDM ect. 35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube is commonly known as an optical fiber heat shrink protect sleeve. 35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube is widely used in communication optical fiber splicing projects, it is consisted of a special cross-linked polyolefin, a hot melt tube and a strengthen member.
35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube is consist of 304 Stainless Steel Rod and EVA tubings. Its diameter is only about 1.4mm after shrink.
35m Length Micro Transparent CWDM DWDM Fiber Splice Heat Shrink Tube was developed to protect and strengthen fusion splices on fiber optic cables. We must be installed on the optical fiber before fiber fusion (otherwise, you will have to break the optical fiber and start again). First, slide the Fiber Optic Splice Sleeve onto the optical fiber. Then weld the two optical fibers. After the welding is completed, slide the sleeve onto the optical fiber fusion point and cover the connect point and the exposed optical fiber. Put the protective sleeve into the protective sleeve oven built in the welding machine. There, the Fiber Optic Splice Sleeve is heated to melt and contract around the joint. Because the Fiber Optic Splice Sleeve has steel rods, a mechanical protection is formed to prevent the fiber from bending. The contraction of the tube around the optical fiber also forms an environmental protection to keep the element away from the connector.
Features:
1. High transparent fiber fusion splicing heat shrinkable tube
2. 0.5mm thick high quality stainless steel
3. 35mm non-stick inner wall, fast welding
4. No air bubbles, no fiber breakage
5. Quality assurance, both single and double needles
6. Quickly shrink, improving work efficiency
7. extend the service life of the fiber
8. No air bubbles, no fiber breakage
Technical Parameters:
|
Specification |
Test method |
Typical data |
|
Tensile strength(MPa) |
ASTM D 2671 |
18 |
|
Elongation at Break (%) |
ASTM D 2671 |
700 |
|
Density(g/cm2) |
ISO R1183D |
0.94 |
|
Dielectric strength (KV/mm) |
IEC 243 |
20 |
|
Permittivity |
IEC 243 |
2.5 |
|
Length rate of change (%) |
ASTM D 2671 |
+5 |
