FTTX FTTH Fiber Optic Connector Adapters Quad With Flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LC UPC MM Multi Mode Quad Fiber Optic Adapter Fiber Optic Connector | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Quad | Use | FTTH, FTTX, FTTA, CATV |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Color | Beige |
| Flange | With Flange | Application | Fiber Connection |
| High Light | FTTH fiber optic connector adapters,FTTX fiber optic connector adapters,Quad fiber adapter |
||
Product Description

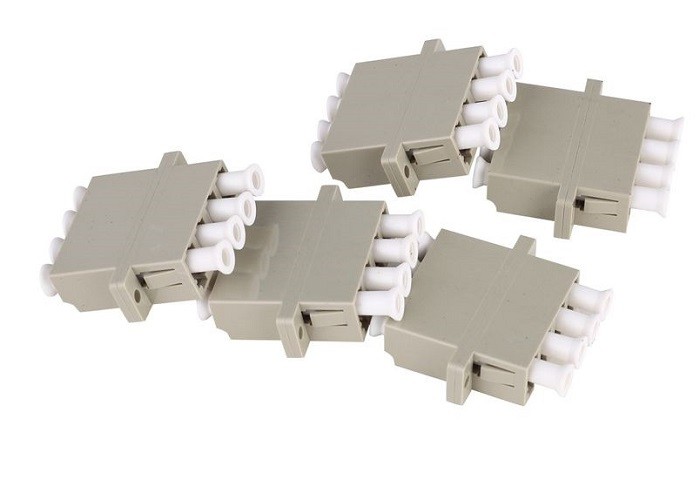

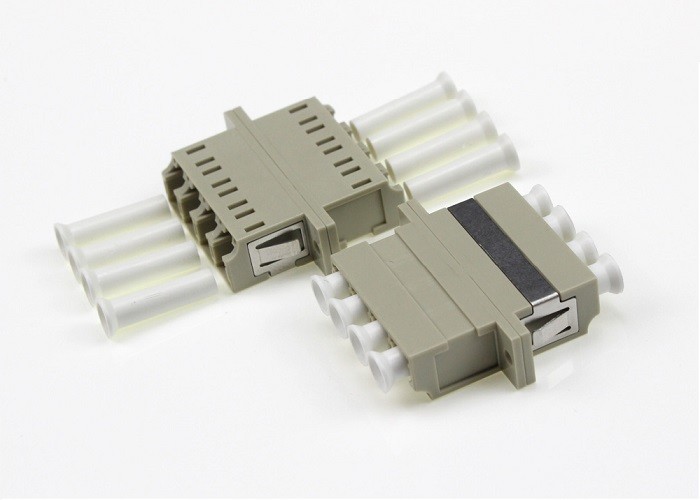

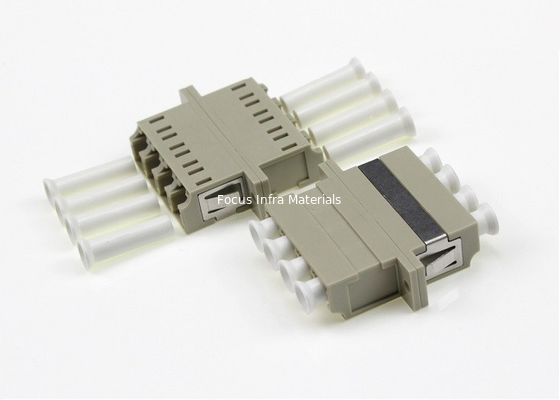

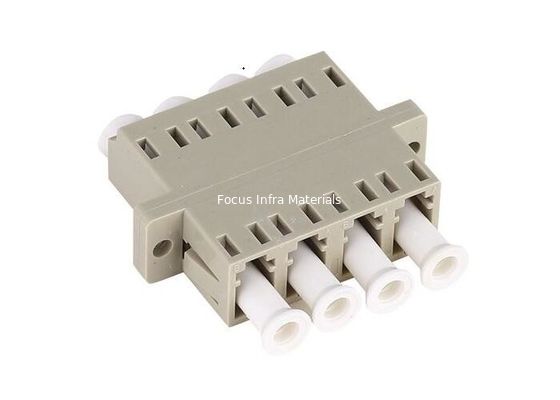

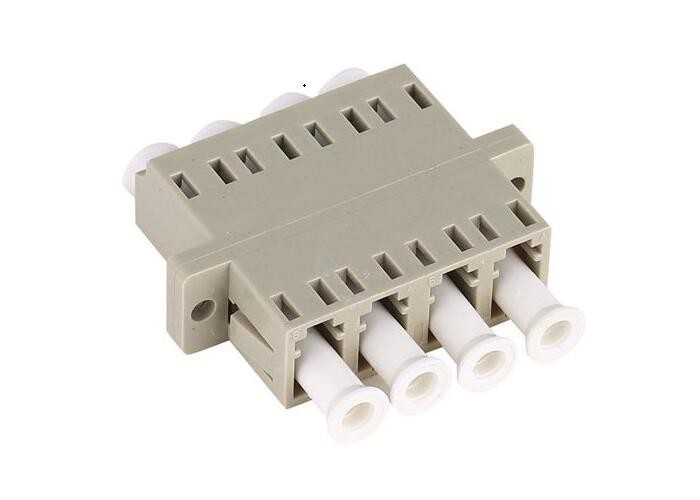

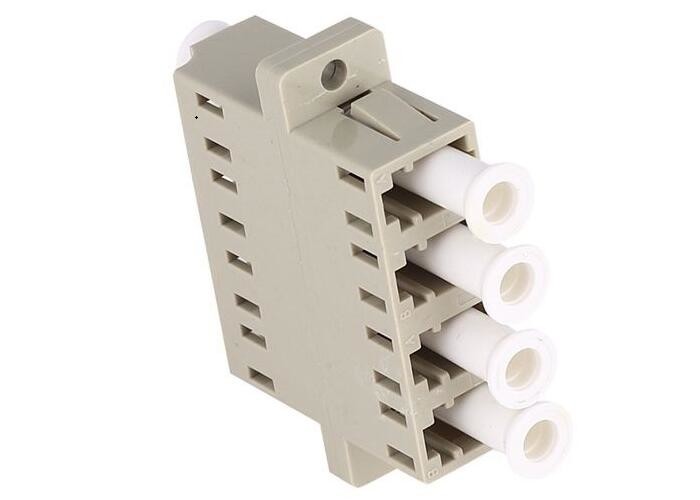

LC UPC MM Multi Mode Quad Fiber Optic Adapter Fiber Optic Connector
Description:
Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.
Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC. LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.
Features
Low insertional loss and back reflection loss
High prcision alignment
Telcordia, ANSI, TIA/EIA, NTT and JIS
compliance
Compact design
Plastic housing
Application
CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks
Multimedia
Gigabit Ethernet
Active device/Transceiver
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
