UPC DX Duplex Fiber SC LC Converter OM3 Adapter Fiber
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LC UPC OM3 DX Duplex Acid Blue Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | OM3 | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Color | Acid Blue |
| Flange | With Flange | Application | Fiber Connection |
| High Light | UPC fiber sc lc converter,DX Duplex sc lc converter,OM3 adapter fiber |
||
Product Description

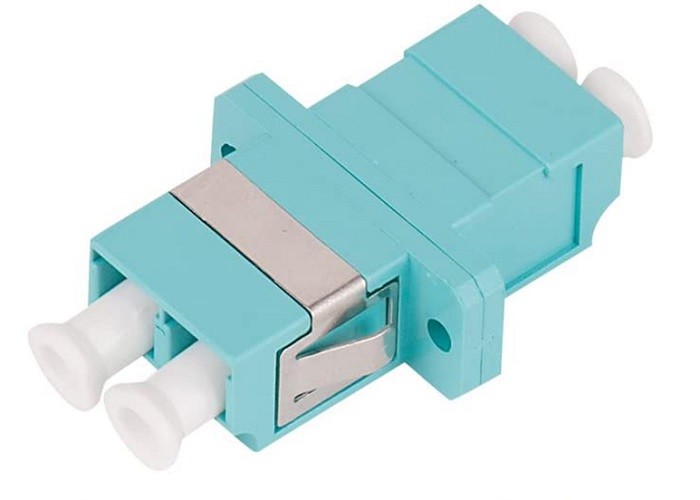

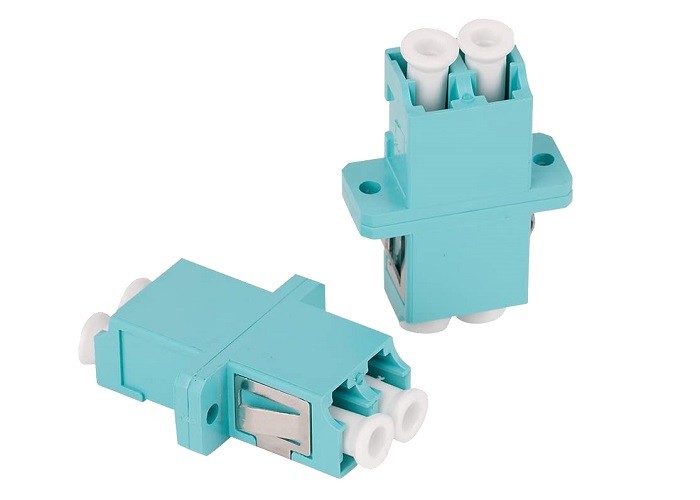

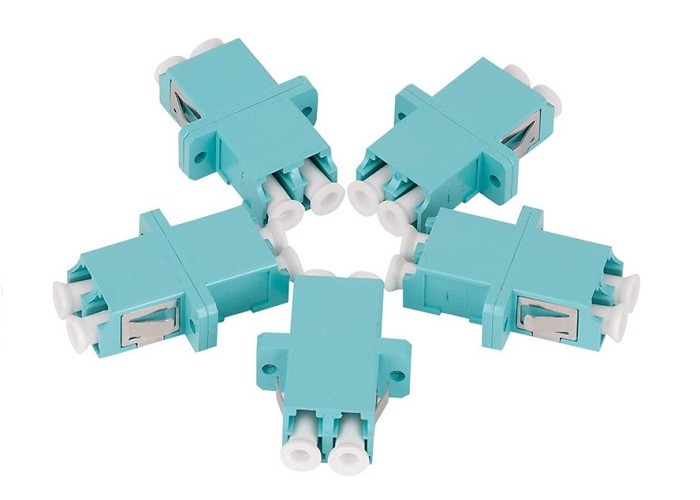

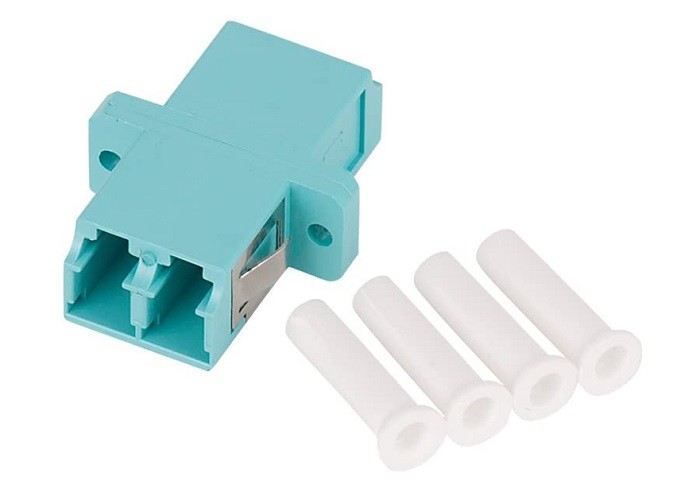

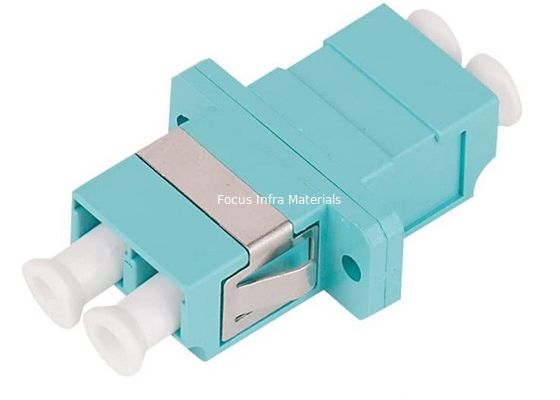

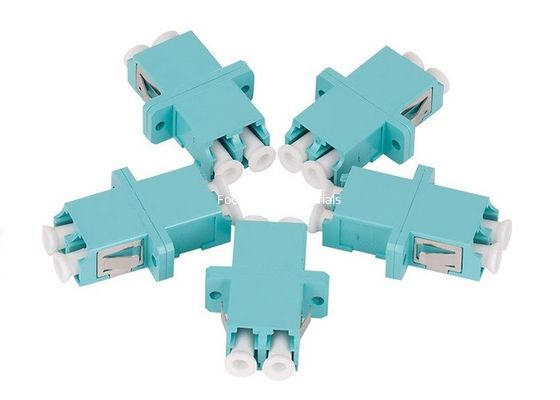

LC UPC OM3 DX Duplex Acid blue Fiber Optic Adapter
Description:
Focus Infra’s fiber optic adapters have a name for its stability ,they provide reliable solution for fiber connections ,single mode fibre optic adaptors and multimode fiber optic adaptors available on request. Focus Infra adopt high quality raw materials and make these fiber optic adapters strictly according to international standard, this makes our fiber optic adaptors fully compartible with the products from other manufacturers' in the market. The "LC" connector is similar in shape to the SC connector, but smaller than the SC connector.
FC SC LC Zirconia fiber optic ceramic ferrule manufacturer, SC fiber optic adapter
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Operating temp.: -40° C~+85° C
7. Standard plugging force: 2~6N
8. Durability > 1000 times
9. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
