Multi Mode Fiber Optic Adapters MM DX Duplex LC Adapter OEM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Multi Mode Duplex MM DX LC UPC Beige Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Multi Mode, MM | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | Multi Mode Fiber Optic Adapters,MM DX duplex LC adapter,duplex LC adapter OEM |
||
Product Description

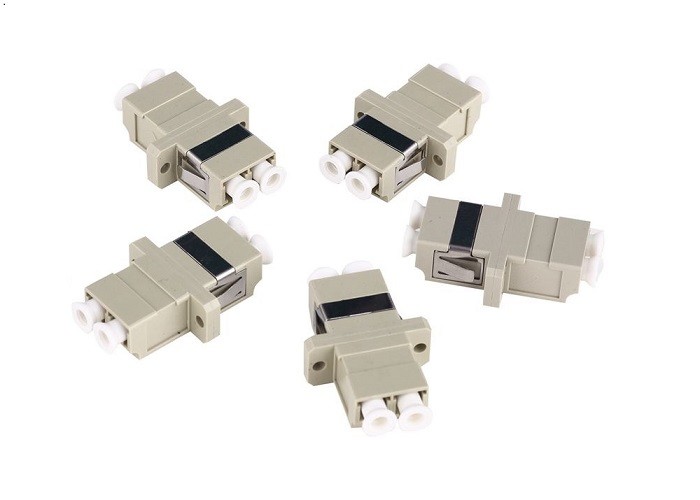

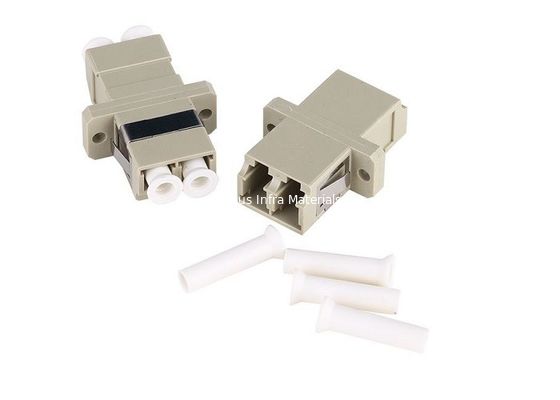

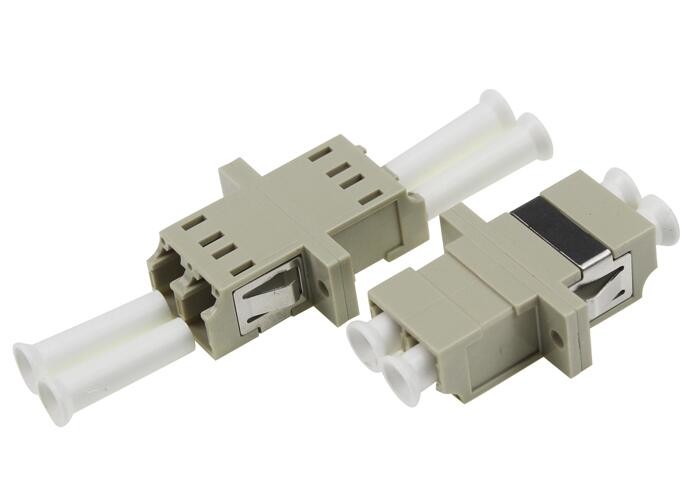

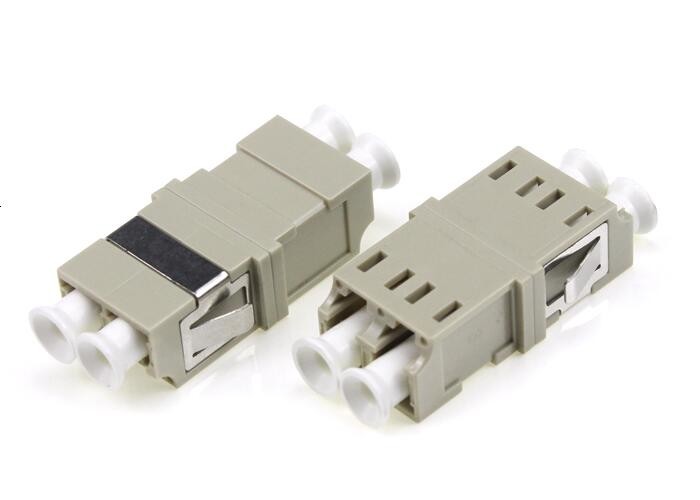

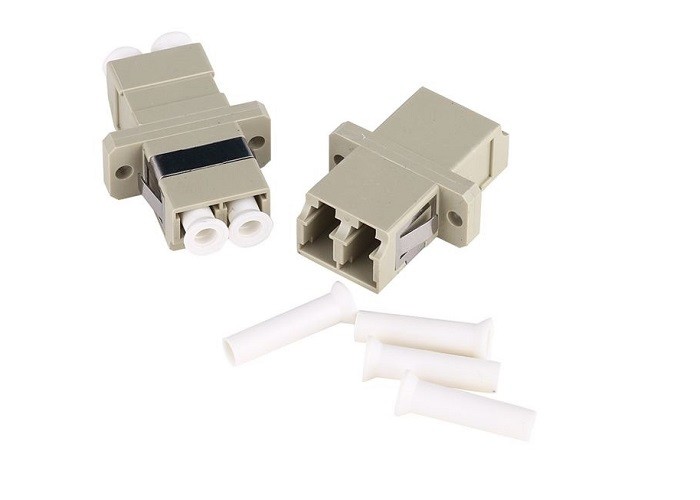

Multi Mode Duplex MM DX LC UPC Beige Fiber Optic Adapter
Description:
The optical fiber connector is a device for detachable (movable) connection between an optical fiber and an optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent. And to minimize the impact on the system due to its intervention in the optical link, which is the basic requirement of optical fiber connectors. To a certain extent, the optical fiber connector also affects the reliability and performance of the optical transmission system.
The "LC" connector is similar in shape to the SC connector, but smaller than the SC connector.
The "FC" connector is a metal connector, which is generally used on the ODF side. The metal connector can be plugged in more times than plastic. There are many types of connectors, in addition to the three introduced above, there are MTRJ, ST, MU, etc., the specific appearance.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
