OM3 OM4 Fiber Optic Adapters SC UPC LC Connect Single Mode
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Blue Color Simplex Single Mode SC PC Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode, SM | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With |
| Flange | With | Application | Fiber Connection |
| High Light | OM3 Fiber Optic Adapters,adaptor SC UPC LC connect,OM4 adaptor SC UPC |
||
Product Description

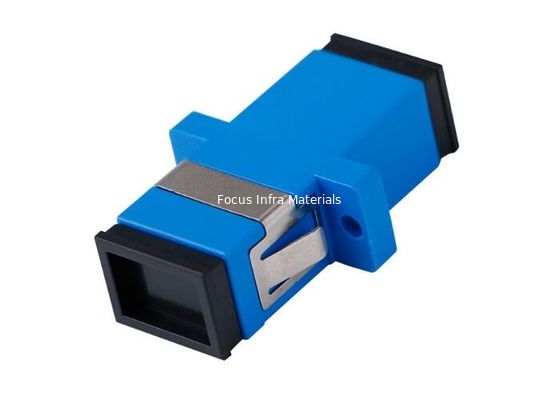

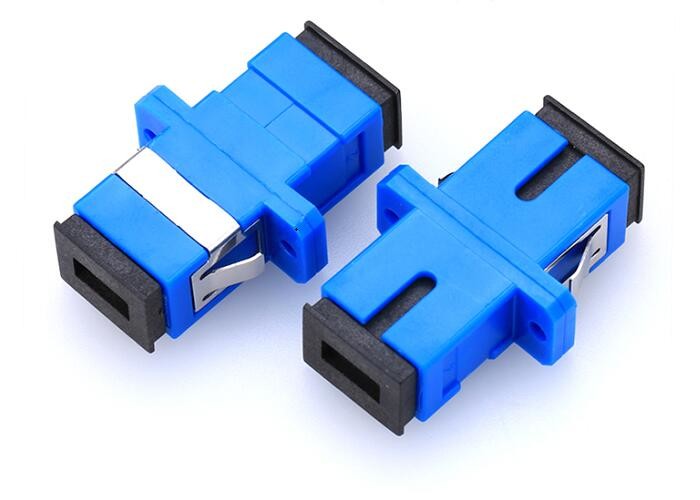

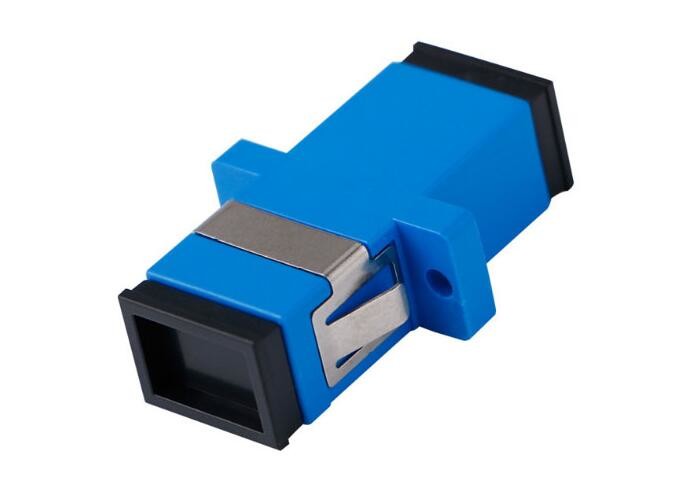

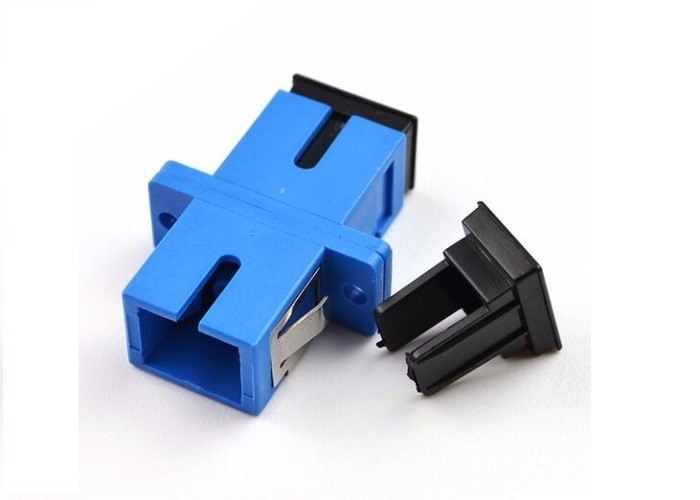

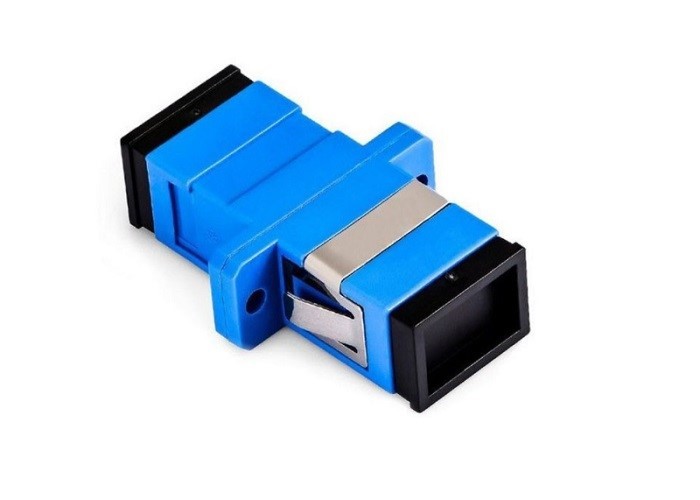

Blue Color Simplex Single Mode SC PC Fiber Optic Adapter
Description:
Focus Infra is supplying SC fiber optic adapters; these products are various types including single mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex versions. Standard female to female SC fiber optic adapter and hybrid SC fiber optic adapters are available.
With Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer. Focus Infra’s Fiber Optic Adapters are easy to be operated.Fiber Optic Adapters isusually installed as wall mounted in the building or at the green belt.
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3),Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
