Focus Infra UPC Simplex SC To ST Fiber Adapter With Flange OEM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC UPC With Metal Clips With Flanges SM SX Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode, SM | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | sc to st fiber adapter With Flange,sc to st fiber adapter OEM,sc simplex adapter With Flange |
||
Product Description

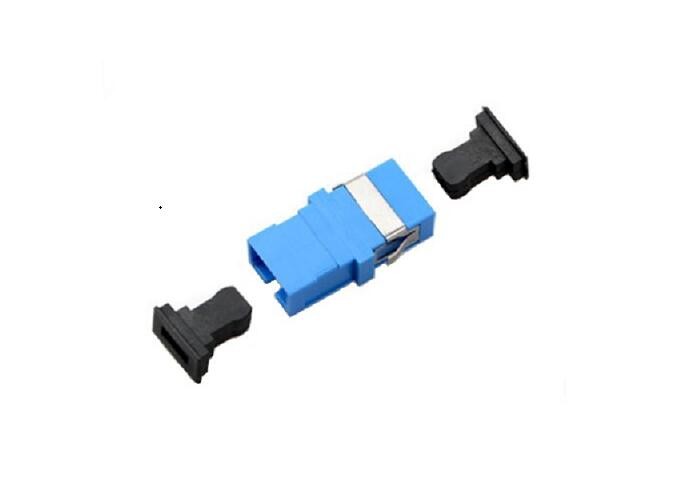

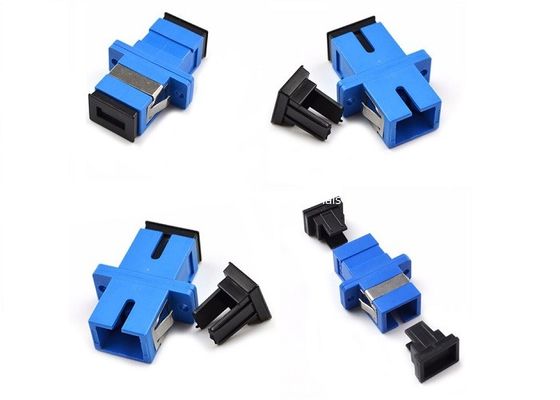

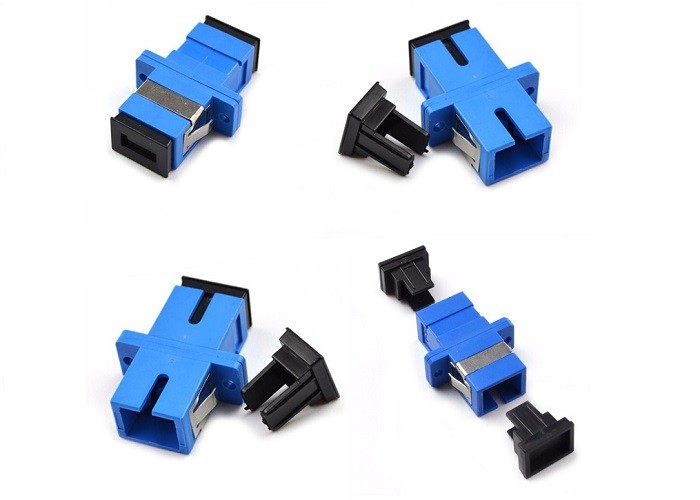

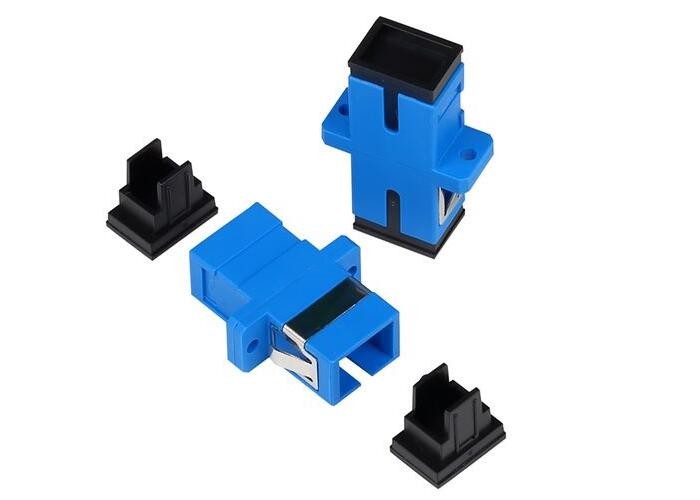

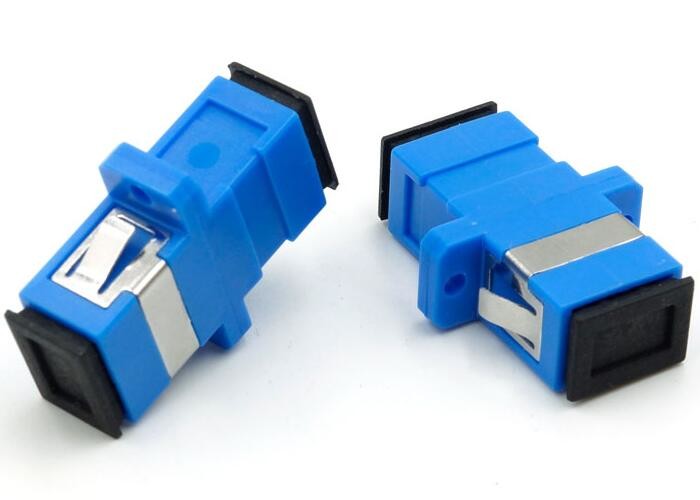

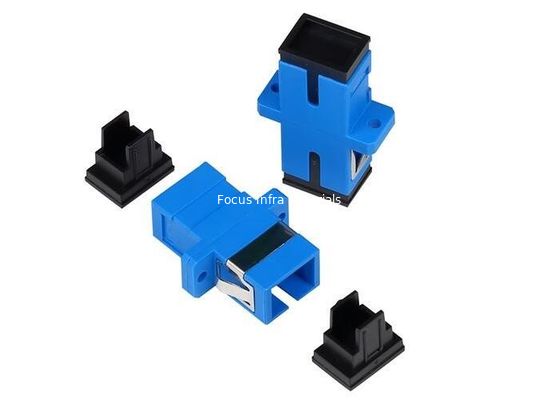

SC UPC With Metal Clips With Flanges SM SX Fiber Optic Adapter
Description:
SC UPC With Metal Clips With Flanges SM SX Fiber Optic Adapter are the most widely used optical passive components in optical fiber communication systems. Fiber Optic Adapter is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable.
SC stands for Standard Connector using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. "PC" is the most widely used in telecom operators' equipment, and its joint cross-section is flat.
The Fiber Optic Adapter is a device for detachable (movable) connection between an optical fiber and an optical fiber. SC type is an Fiber Optic Adapter developed by NTT Corporation of Japan. Its shell is rectangular, and the structural dimensions of the pins and coupling sleeves used are exactly the same as those of the FC type. Among them, the end face of the pin mostly adopts the PC or APC type grinding method; the fastening method is the plug-in latch type, without rotation. This type of connector is cheap, easy to plug and unplug, small fluctuations in insertion loss, high compressive strength, and high installation density.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
