Green SC APC LC Fiber Optic Coupler Single Mode Focus Infra
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX Single Mode Green Color With Metal Clips With Flange Fiber Optic Coupler | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | SM (Single Mode) | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | Yes |
| Flange | Yes | Application | Fiber Connection |
| High Light | SC APC lc fiber optic coupler,lc fiber optic coupler Single Mode,Green adapter lc sc |
||
Product Description

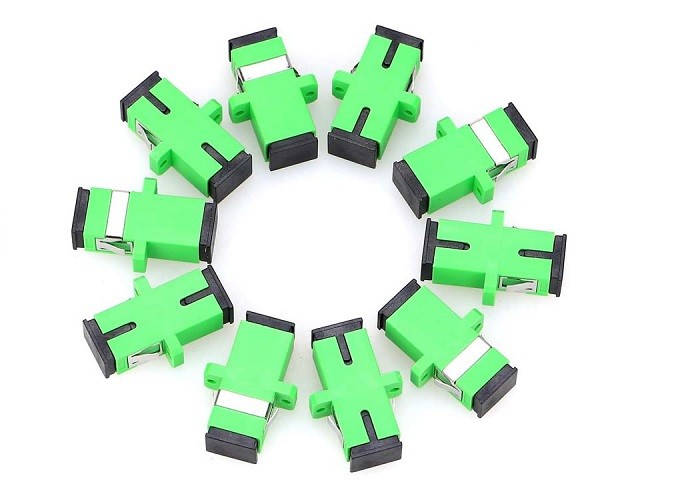

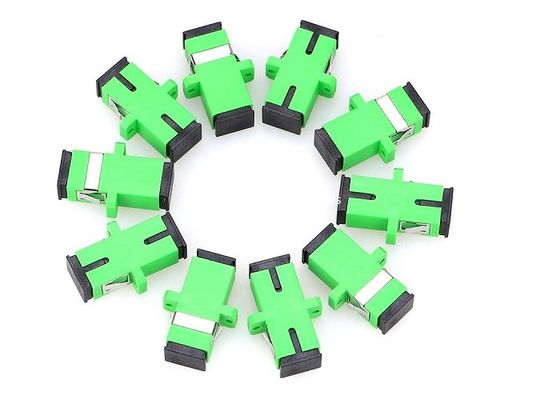

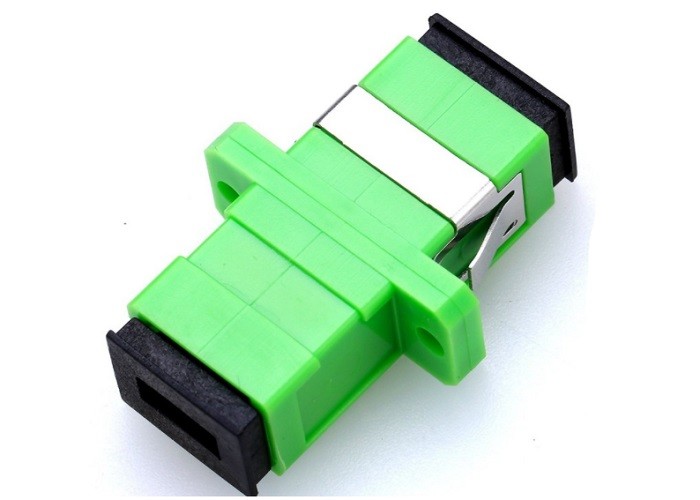

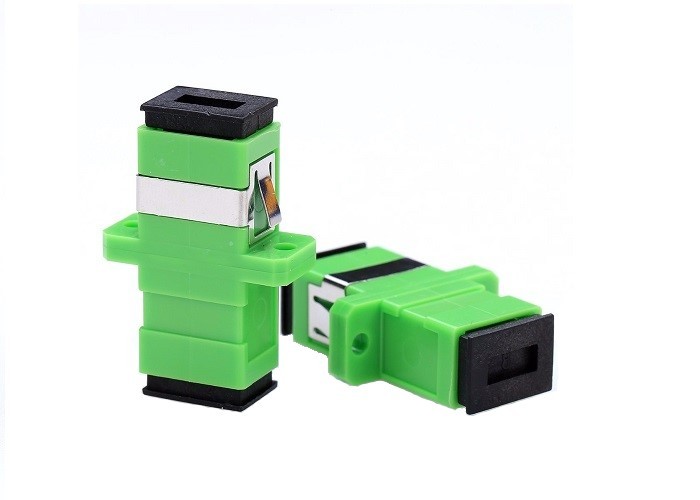

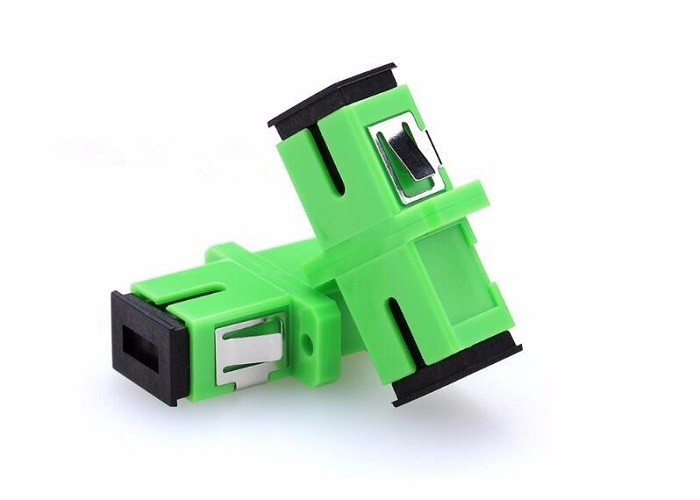

SC APC SX Single Mode Green Color with Metal Clips with Flange Fiber Optic Coupler
Description:
Focus Infra’s SC APC SX Single Mode Green Color with Metal Clips with Flange Fiber Optic Coupler is designed for Single Mode Cable Connection. The optical fibers are connected by the Fiber Optic Coupler through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.
According to the different fiber optic connectors, the Fiber Optic Coupler can provide the corresponding adapter parts for the fiber optic connector. SC type Fiber Optic Coupler means Standard Connector. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
