ABS Housing Fiber Optic Adapters OM3 OM4 SC To ST Adapter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX SM Green With Metal Clips With Flange Fiber Optic Coupler | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | SM Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
| High Light | ABS housing Fiber Optic Adapters,OM4 sc to st adapter,OM3 sc to st adapter |
||
Product Description

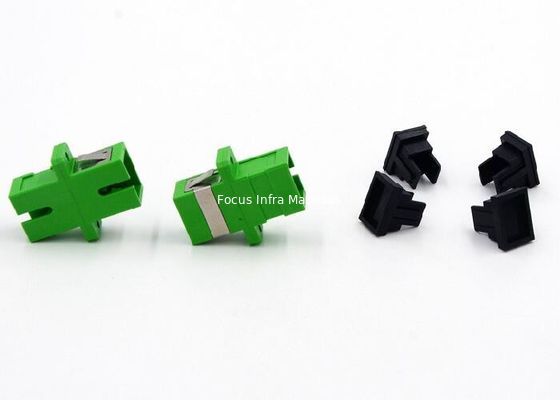

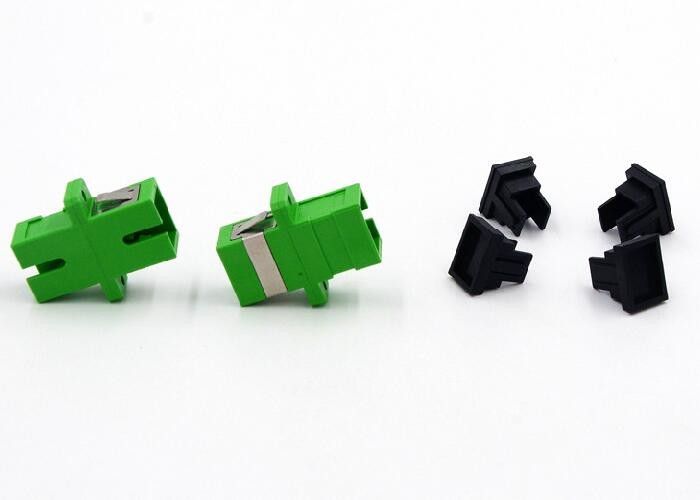

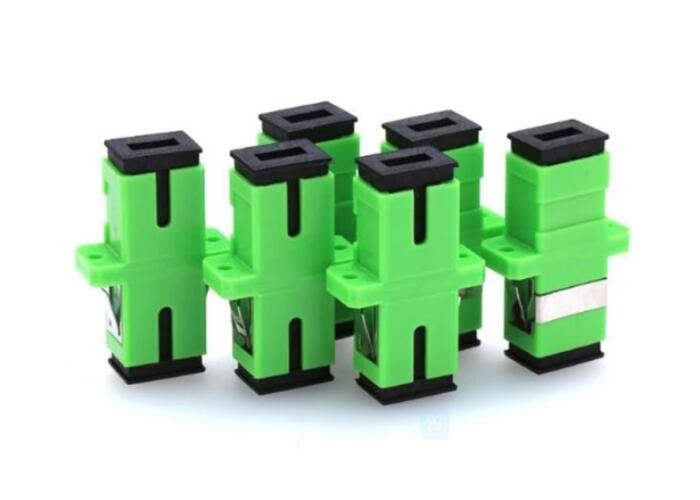

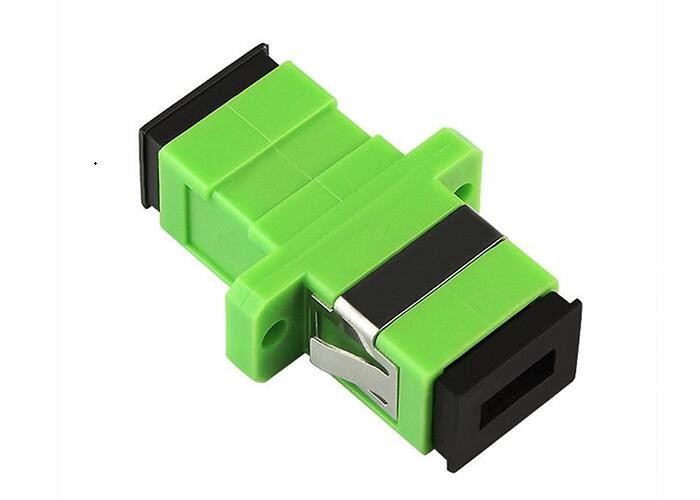

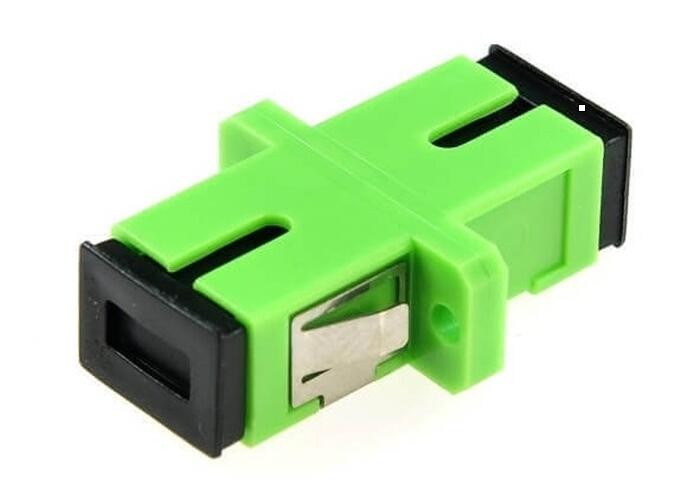

SC APC SX SM Green with Metal Clips with Flange Fiber Optic Coupler
Description:
Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal flanges to facilitate the installation and fixation of the connectors.
Focus Infra is focus on manufacturing all kinds of fiber optic coupler, this SC APC SX SM Green with Metal Clips with Flange Fiber Optic Coupler is used for single mode cables connection.
The SC APC SX SM Green with Metal Clips with Flange Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent. And to minimize the impact on the system due to its intervention in the optical link, which is the basic requirement of optical fiber connectors. To a certain extent, the optical fiber connector also affects the reliability and performance of the optical transmission system.
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
