SC APC Simplex Single Mode with Metal Clips with Flange Fiber Optic Coupler
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC Simplex Single Mode With Metal Clips With Flange Fiber Optic Coupler | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | SM Single Mode | Use | FTTH, FTTX, FTTA, CATV |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | Yes | Application | Fiber Connection |
Product Description

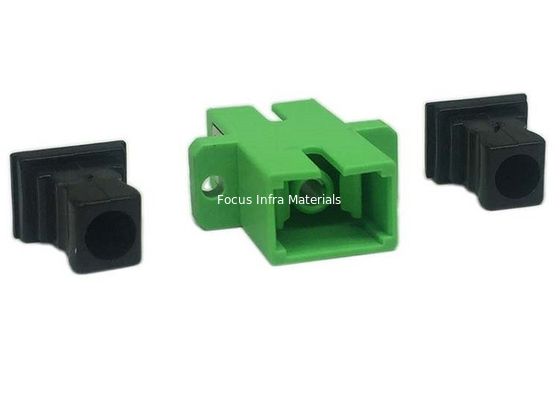

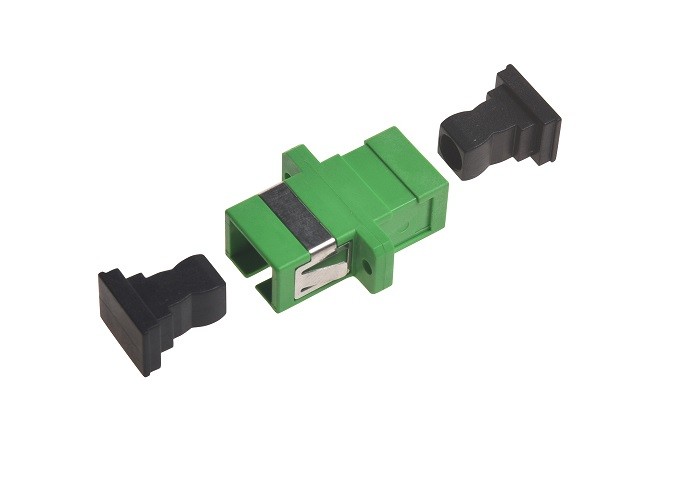

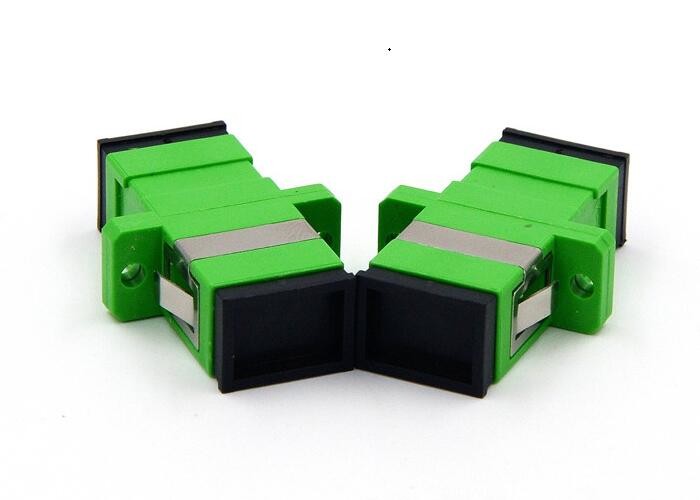

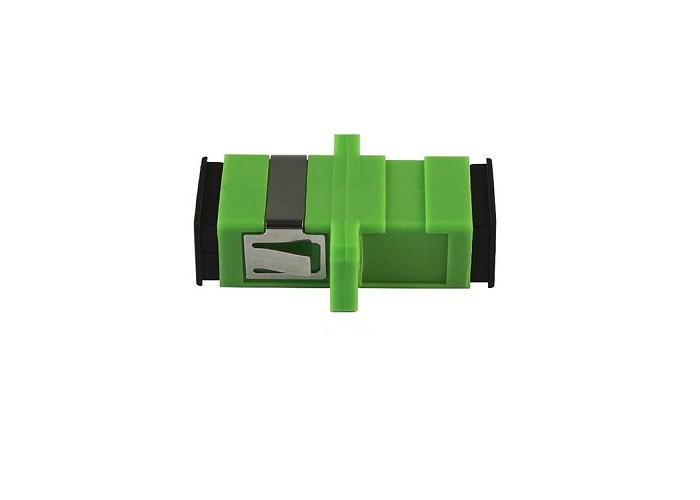

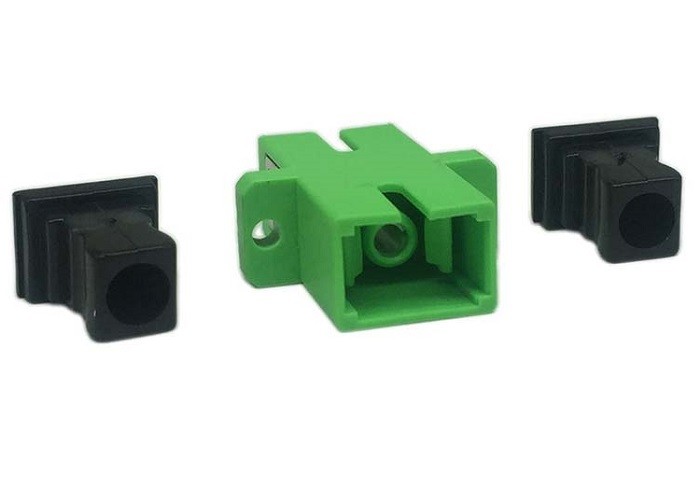

SC APC Simplex Single Mode with Metal Clips with Flange Fiber Optic Coupler
Description:
The optical fibers are connected by SC APC Simplex Single Mode with Metal Clips with Flange Fiber Optic Coupler through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, Focus Infra also designed a variety of fine fixing flanges.
Both ends of the conversion adapter can be connected to fiber optic connectors of different interface types, and provide a connection between the APC end faces. Double or multiple adapters can increase the installation density and save space.
Characteristics:
1.Low IL & high RL
2.Good exchangeability & durability
3.High temperature durability
4.Standard:Telcordia GR-326-Core
5.Patch cords accord with GR-326,ISO9001,ROHS
Application
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
