SC APC SX Single Mode Green Color with Metal Clips with Flange Fiber Optic Adapter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX Single Mode Green Color With Metal Clips With Flange Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA, CATV |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | Yes |
| Flange | Yes | Application | Fiber Connection |
Product Description

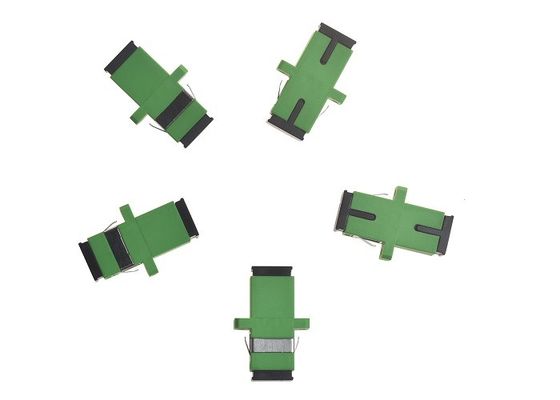

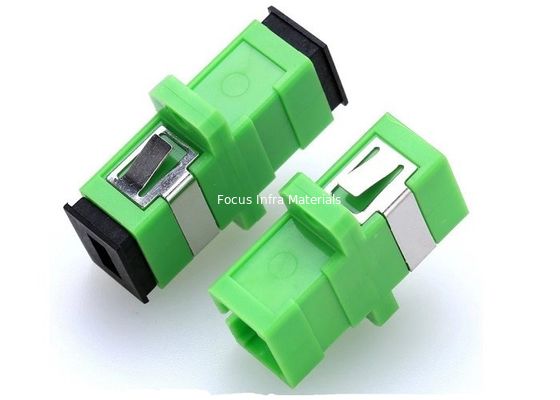

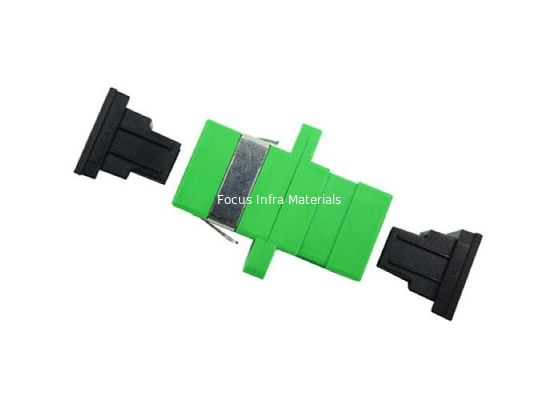

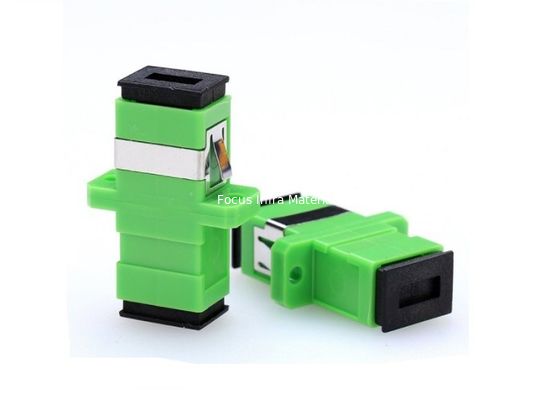

SC APC SX Single Mode Green Color with Metal Clips with Flange Fiber Optic Adapter
Description:
SC APC SX Single Mode Green Color with Metal Clips with Flange Fiber Optic Adapter is a device for detachable (movable) connection between an optical fiber and an optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent. And to minimize the impact on the system due to its intervention in the optical link, which is the basic requirement of optical fiber connectors. To a certain extent, the optical fiber connector also affects the reliability and performance of the optical transmission system.
Typical SC fiber optic adapters are with plastic housing and for single mode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color. We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
