SC APC SX Single Mode with Metal Clips with Flange Fiber Optic Adapter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC SX Single Mode With Metal Clips With Flange Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode, SM | Use | FTTH, FTTX, FTTA |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Fiber Mode | Single Mode, SM |
| Flange | With Flange | Application | Fiber Connection |
Product Description

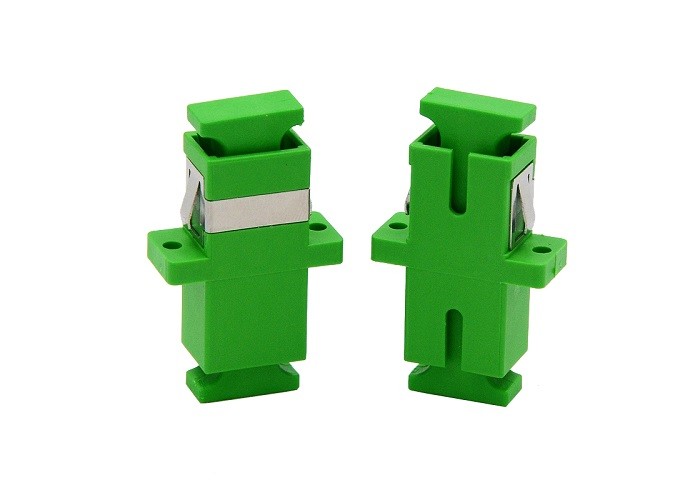

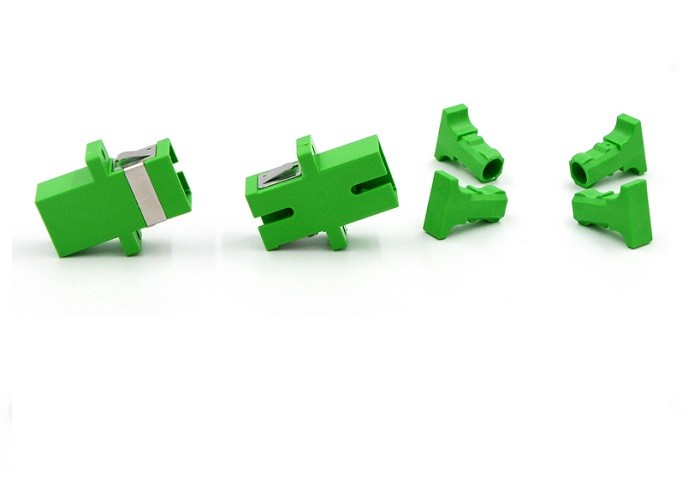

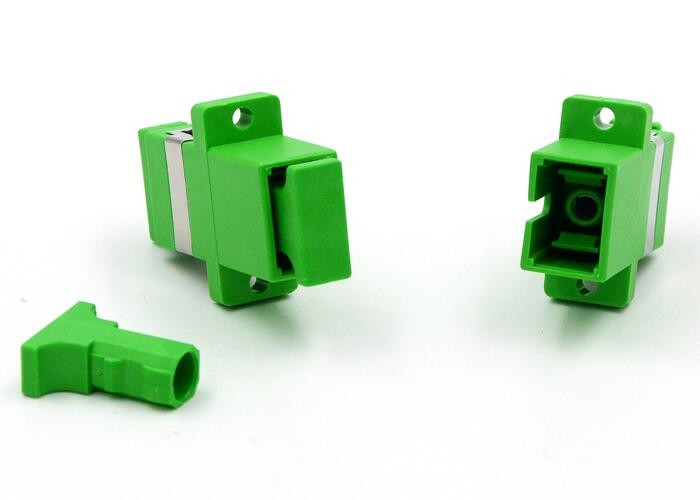

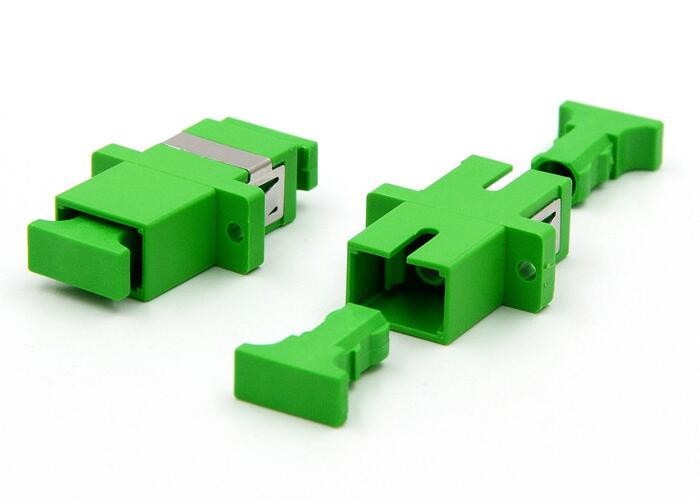

SC APC SX Single Mode with Metal Clips with Flange Fiber Optic Adapter
Description:
SC APC SX Single Mode with Metal Clips with Flange Fiber Optic Adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. We also called Fiber Optic Adapters as mating sleeves and hybrid adaptors, mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic adaptor types used to connect different kinds of fiber optic connectors. Focus Infra provides reliable solution for fiber connections, single mode fiber optic adaptors and multimode fiber optic adaptors available on request. Focus Infra adopt high quality raw materials and make these fiber optic adapters strictly according to international standard, this makes our fiber optic adaptors fully compartible with the products from other manufacturers' in the market.
According to the different fiber optic connectors, the fiber optic adapter can provide the corresponding adapter parts for the fiber optic connector.
Focus Infra’s Fiber Optic Adapter is applicable fiber optic connector models are FC, SC, ST, LC, MTRJ, E2000, etc. and Applicable fiber connector end faces are PC, UPC, APC, etc.
SC type Fiber Optic Adapter is an optical fiber connector developed by NTT Corporation of Japan. Its shell is rectangular, and the structural dimensions of the pins and coupling sleeves used are exactly the same as those of the FC type. Among them, the end face of the pin mostly adopts the PC or APC type grinding method; the fastening method is the plug-in latch type, without rotation. This type of connector is cheap, easy to plug and unplug, small fluctuations in insertion loss, high compressive strength, and high installation density.
Features:
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
