OEM FC APC To SC APC Fiber Optic Adapters FTTH FTTX FTTA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC Simplex Single Mode With Metal Clips With Flange Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Fiber Mode | Single Mode |
| Flange | With Flange | Application | Fiber Connection |
| High Light | OEM Fiber Optic Adapters,OEM fc apc to sc apc adapter,fc apc to sc apc adapter FTTH |
||
Product Description

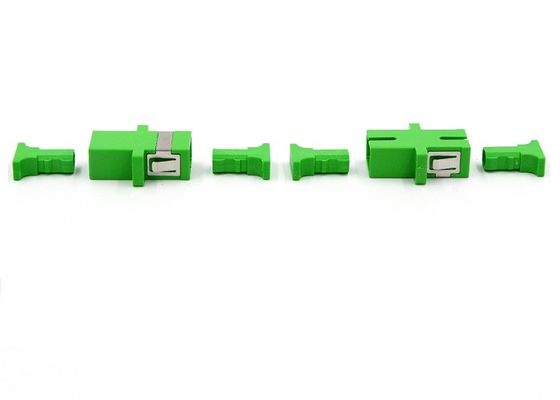

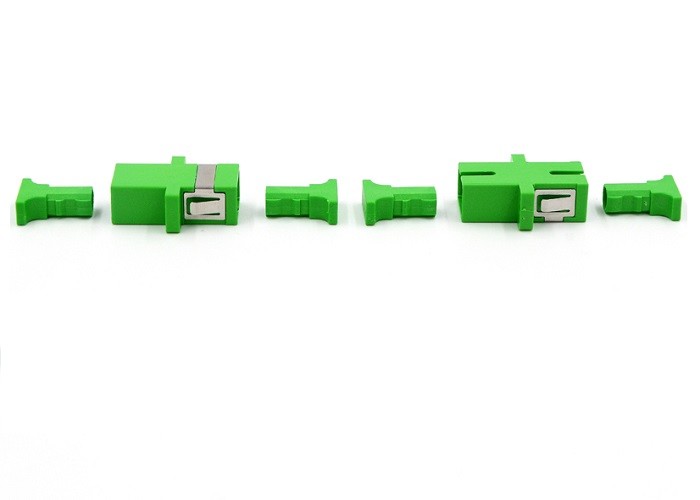

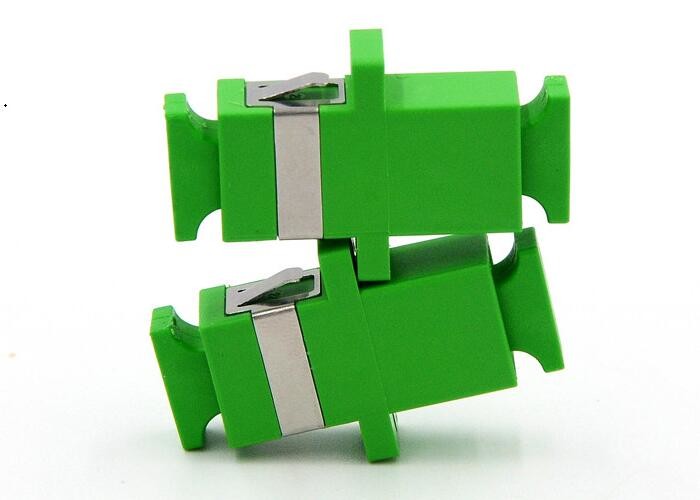

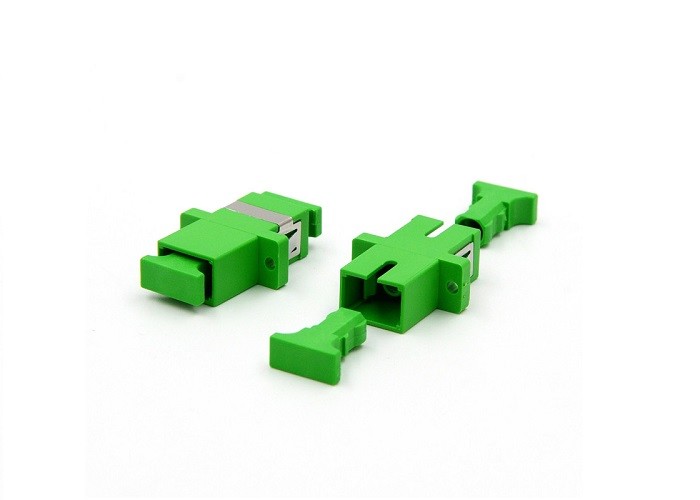

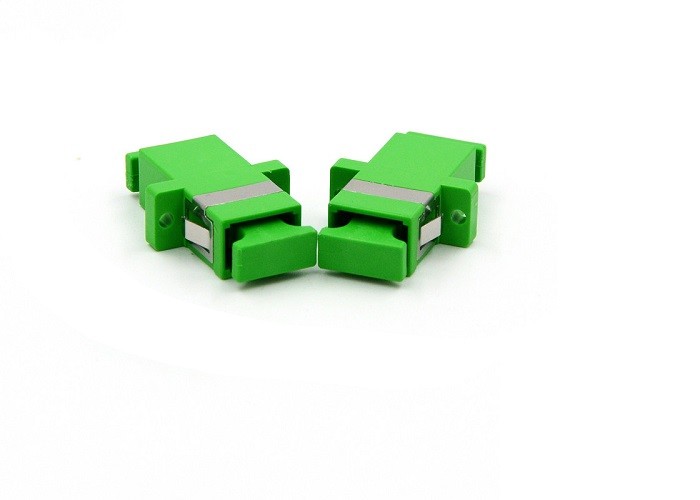

SC APC Simplex Single Mode with Metal Clips with Flange Fiber Optic Adapter
Description:
SC APC Simplex Single Mode with Metal Clips with Flange Fiber Optic Adapter are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal flanges to facilitate the installation and fixation of the connectors.
Both ends of the fiber optic adapter can be inserted into fiber optic connectors of different interface types to realize the conversion between different interfaces such as FC, SC, ST, LC, MTRJ, MPO, E2000, etc. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable.
Applications
1.Fiber Optic Telecommunications
2.LAN (Local Area Network)
3.FTTH (Fiber To The Home)
4.CATV&CCTV System
5.High speed transmission systems
6.Fiber optic sensing
7.Industtial, Mechanical and Military
Features:
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
