PC Alloy Dome Fiber Optic Splice Closure IP68 288 Core
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 288 Cores Horizontal Type 3 Inlets 3 Outlets Outdoor Aerial Dome Duct Mounting Fiber Optical Splice Closure | Model Number | FS-J-023 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 68 |
| Cable Port | 3 Inlets 3 Outlets | Scope Of Application | 12 Core To 288 Core |
| Product Size | 560*240*130mm | Gross Weight | 5.7 Kg |
| Main Material | PC Alloy | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | PC alloy Fiber Optic Splice Closure,dome splice closure IP68,dome splice closure 288 core |
||
Product Description

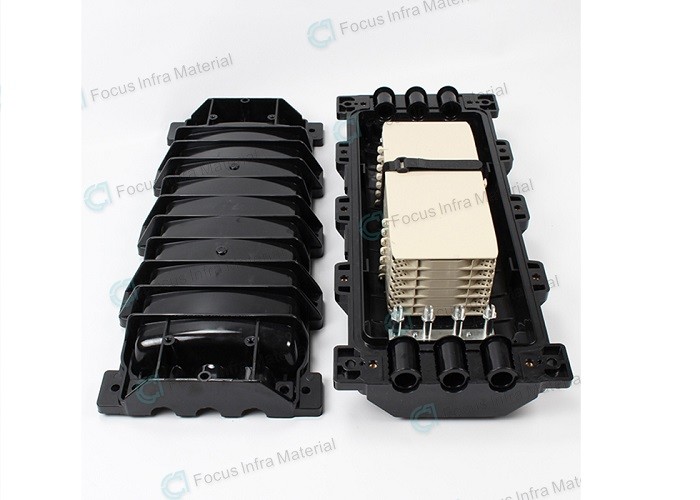

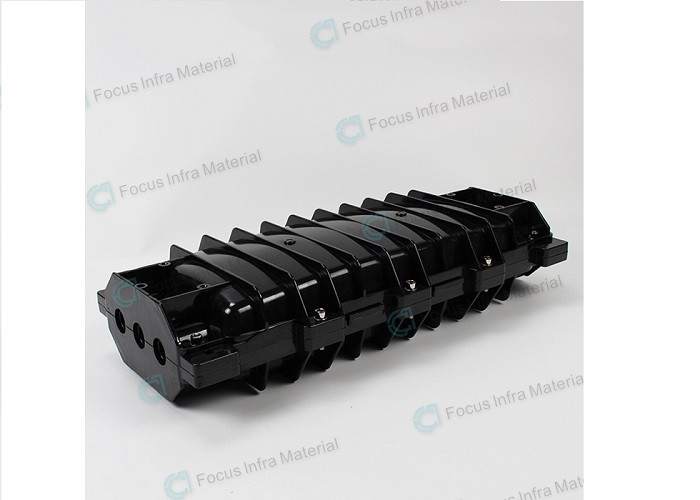

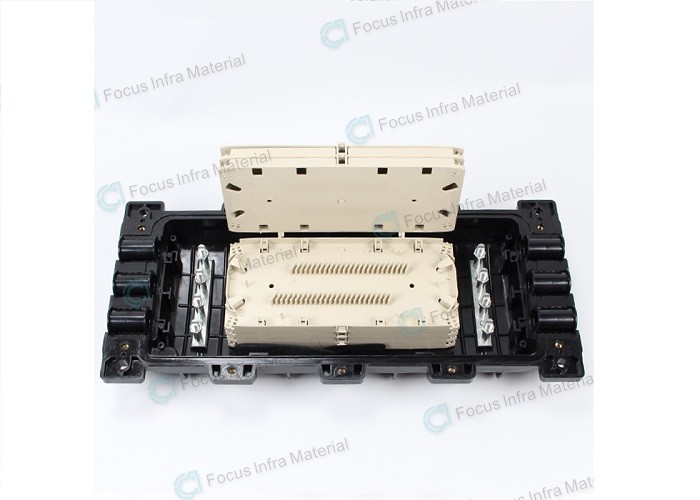

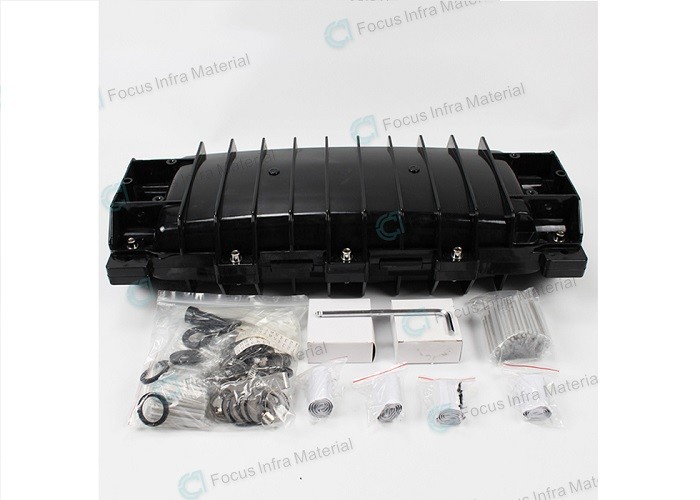

288 Cores Horizontal Type 3 Inlets 3 Outlets Outdoor Aerial Dome Duct Mounting Fiber Optical Splice Closure
Description:
According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. 288 Cores Horizontal Type 3 Inlets 3 Outlets Outdoor Aerial Dome Duct Mounting Fiber Optical Splice Closure, also known as 288 Cores Horizontal Type 3 Inlets 3 Outlets Outdoor Aerial Dome Duct Mounting Fiber Optical Splice Box, is the place where the end of optical cable is connected. 288 Cores Horizontal Type 3 Inlets 3 Outlets Outdoor Aerial Dome Duct Mounting Fiber Optical Splice Closure are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Specification:
| Product name | 288 cores Horizontal Type Cable Joint Box |
| Protection level | IP68 |
| Scope of application | 12 core to 288 core |
| Gross weight | 5.7 kg |
| Main material | PC alloy |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
