1 Inlets 3 Outlets Joint Dome Fiber Optic Splice Closure Box 24 Core
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Closure | Model Number | FS-J-006 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 68 |
| Cable Port | 1 Inlets 3 Outlets | Scope Of Application | 12 Core To 48 Core |
| Product Size | 320*160mm | Gross Weight | 5.7 Kg |
| Main Material | 2.15 Kg | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | 1 inlets joint closure 24 core,3 outlets joint closure 24 core,dome fiber optic splice closure box |
||
Product Description

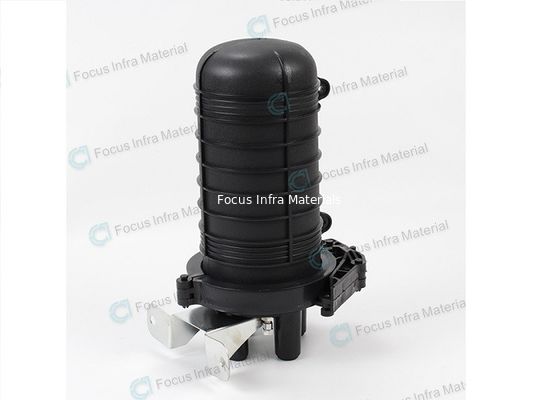

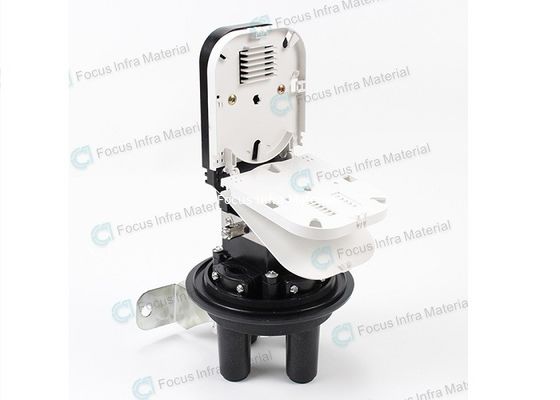

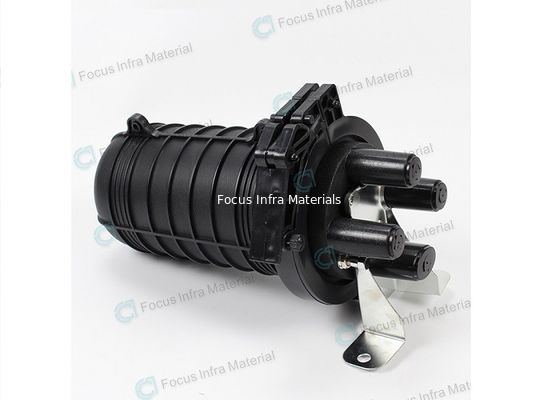

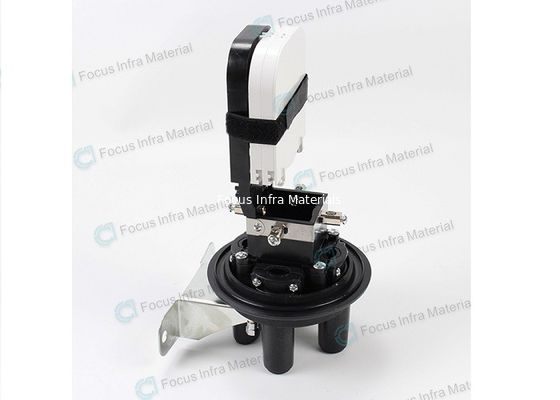

Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Closure
Description:
Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Closure, also known as Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.
Features:
Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
Easy and fast to fix fiber cable
Easy and fast to increase and reduce.
The closure is spacious enough for winding and storing fibers
Specification:
| Product name | Dome Type Vertical Fiber Optic Splice Box |
| Protection level | IP68 |
| Scope of application | 12 core to 48 core |
| Gross weight | 2.15 kg |
| Main material | Plastic |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
