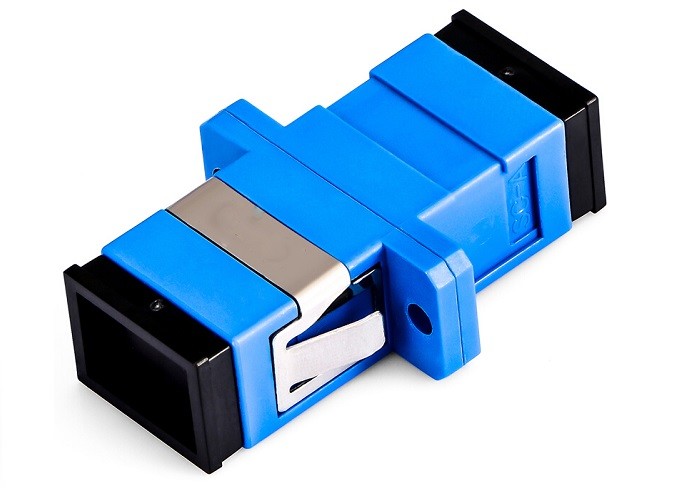

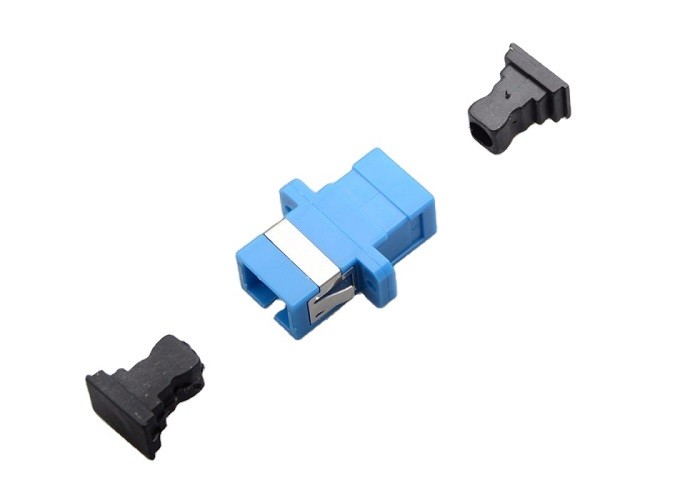

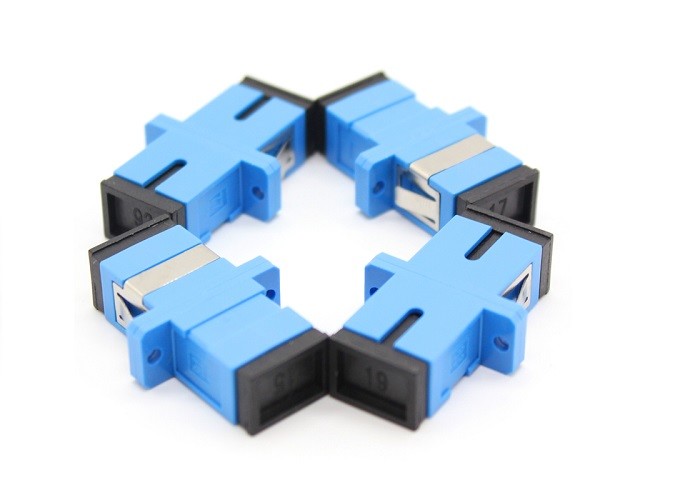

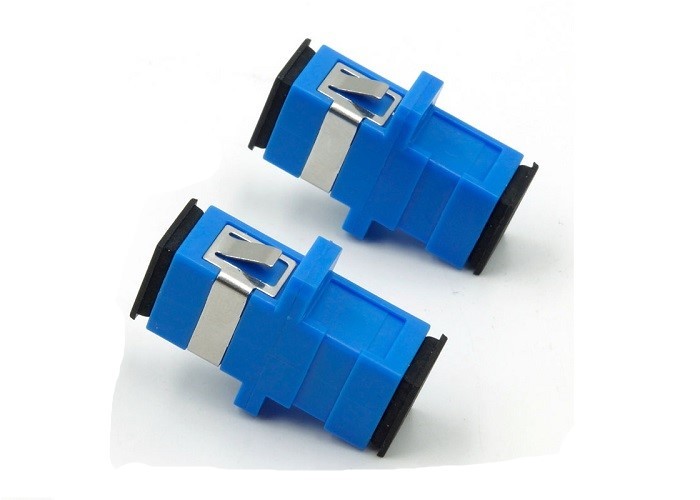

SC UPC Single Mode SX with Flange With Metal Clips Fiber Optic Adapter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC UPC Single Mode SX With Flange With Metal Clips Fiber Optic Adapter | Brand | Focus Infra Or OEM |
|---|---|---|---|
| Model Number | Single Mode | Use | FTTH, FTTX, FTTA, CATV, LANs |
| Insertion Loss | <0.2db | Return Loss | >50db |
| Durability | >1000 Matings | Metal Clips | With Metal Clips |
| Flange | With Flange | Application | Fiber Connection |
Product Description
SC UPC Single Mode SX with Flange With Metal Clips Fiber Optic Adapter
Description:
Focus Infra’s providing reliable solution for fiber connections, our products including single mode Fiber Optic Adapter and multimode fiber optic adaptors available on request. Focus Infra adopt high quality raw materials and make these fiber optic adapters strictly according to international standard.
"PC" Adapter is the most widely used in telecom operators' equipment, and its joint cross-section is flat. The attenuation of "UPC" is smaller than that of "PC", and it is generally used for equipment with special needs.
The Fiber Optic Adapter is a device for detachable (movable) connection between an optical fiber and an optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent.
Features:
Compact design
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount styles & flange options
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
