Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Single Mode | Product Name | Conector Rapido De Fibra Optica Singlemode Sc Apc Fast Connector |
|---|---|---|---|
| Model Number | SC/APC | Suit Cable Diameter | 0.9/2.0/3.0mm Ffiber Patch Cord |
| Application | FTTX Solutions, PC/UPC/APC | Durability | > 500 (Times) |
| Network | Wireless Lan, Bluetooth, Wired LAN, ONVIF | ||
| High Light | SC APC Fiber Fast Connectors,Fiber Optic Fast Connectors 3mm,FTTX Fiber Optic Fast Connectors |
||
Product Description

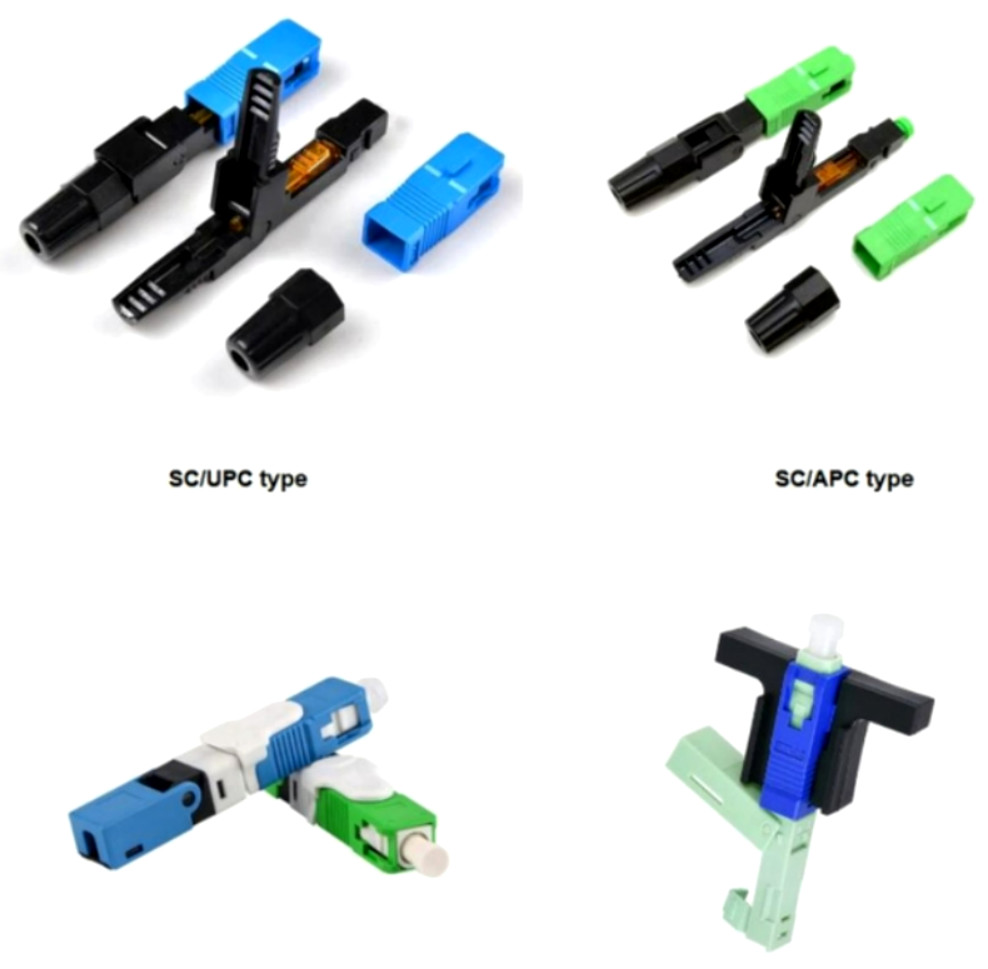

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm
Description

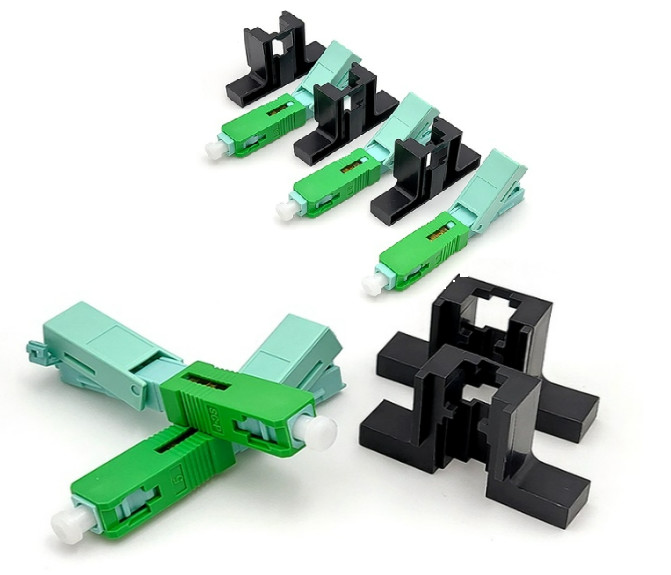

The Conector Rapido De Fibra Optica Single-Mode Sc-Apc Quick Connector is a field-assembled optical connector used in LAN, CCTV, and FTTH applications. It features a patented design with a factory-installed fiber stub and pre-polished ceramic ferrule, allowing for quick and efficient fiber termination. These connectors eliminate the need for epoxies and adhesives, reducing installation time and costs. They offer high installation quality, a high success rate, and reliable connections in optical networks.
Application
- Optical Communication Networks: SC APC quick connectors are commonly used in optical communication networks for fast and efficient fiber optic termination. It provides a reliable connection and helps ensure the smooth transmission of optical signals.
- Telecommunications Networks: Telecommunications networks rely on SC APC Quick Connectors for fast and reliable fiber optic terminations. It enables telecom providers to efficiently connect fiber optic cables and maintain high-quality communication services.
- Ethernet network: In Ethernet network, SC APC quick connector plays a vital role in connecting fiber optic cables. It allows fast and secure termination, ensuring seamless data transfer and network performance.
- CATV Networks: SC APC quick connectors are also used on CATV (cable television) networks. It facilitates the connection of fiber optic cables in CATV distribution systems, ensuring high-quality video and audio signal transmission.
| Name | Specification |
| Fiber type | Single mode or Muiti mode |
| Applicable for | indoor or Outdoor FTTH |
| Diameter of Cermic core | 2499+0.002mm |
| Concentricity of Ceramic core | <0.5um |
| Material of plastic parts | PBT(Main-body): PEl(Inner- core);Dust Cap(PE) |
| Spring material | 304 stainless steel |
| Operating Wavelength | 1260-1650nm |
| Insertion loss | 0.3dB(Typical);0.5dB(Max) |
| Return loss | A>=50dB,UPC>=45dB |
| Repeatability | 500 repetitions /1L 0.3 DB |
| Tensile Strength | 250N(A IL< 0.2dB) |
| Reusable | 210 times |
| Region Defect | Region A(0-25um) | Region B(25~125um) | Region C(125~250um) |
| Scratch | Allow one scratch no more than thefiber core and widths1um | Allow two scratchs and thewidths2um | Allow five scratchs andwidths2um |
| Speckle | Allow one speckle no more than thefiber core and diameters1um | Allow two speckles and thediameters2um | Allow two speckles and thediameterssum |
| Apron | Between area B and area Callow apron which aperture width less than 5um;and the length of theapron is less than 30% of the perimeter of the fiber end | ||
