FTTX Solutions SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Single Mode | Product Name | Conector Rapido De Fibra Optica Singlemode Sc Apc Fast Connector |
|---|---|---|---|
| Model Number | SC/APC | Suit Cable Diameter | 0.9/2.0/3.0mm Ffiber Patch Cord |
| Application | FTTX Solutions, PC/UPC/APC | Durability | > 500 (Times) |
| Network | Wireless Lan, Bluetooth, Wired LAN, ONVIF | ||
| High Light | 3mm Fiber Optic Fast Connectors,FTTX Solutions Fiber Optic Connectors,CATV Fiber Optic Fast Connectors |
||
Product Description

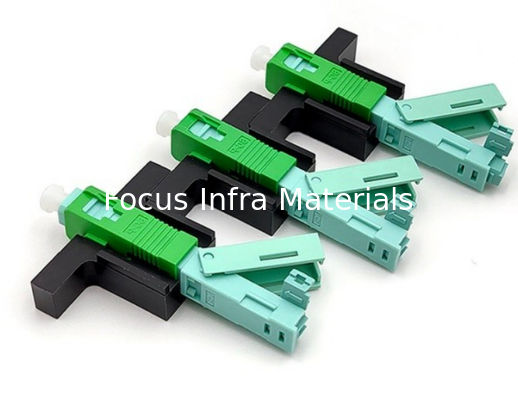

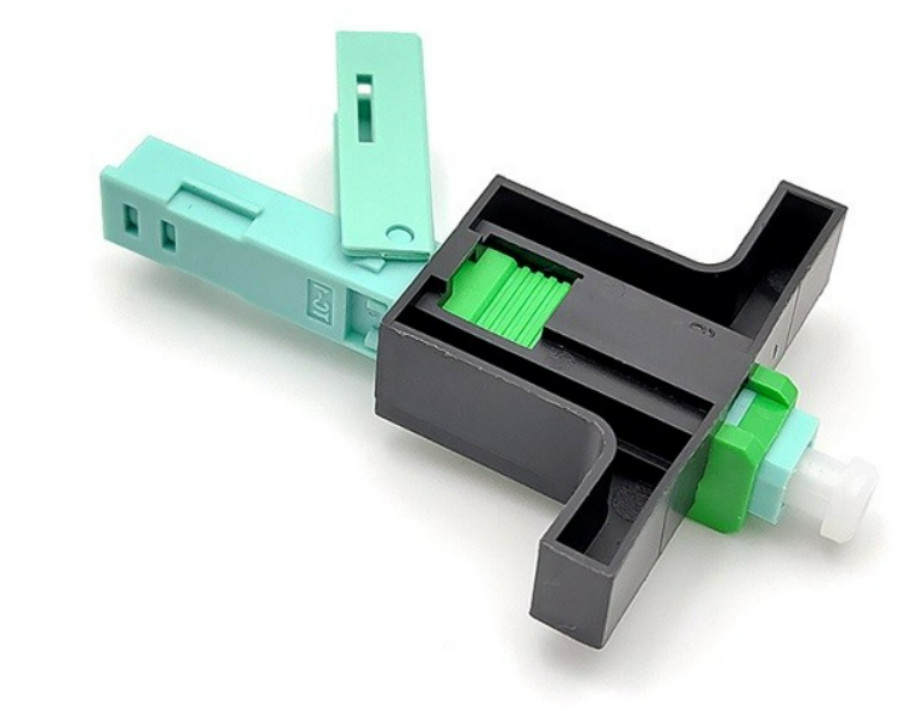

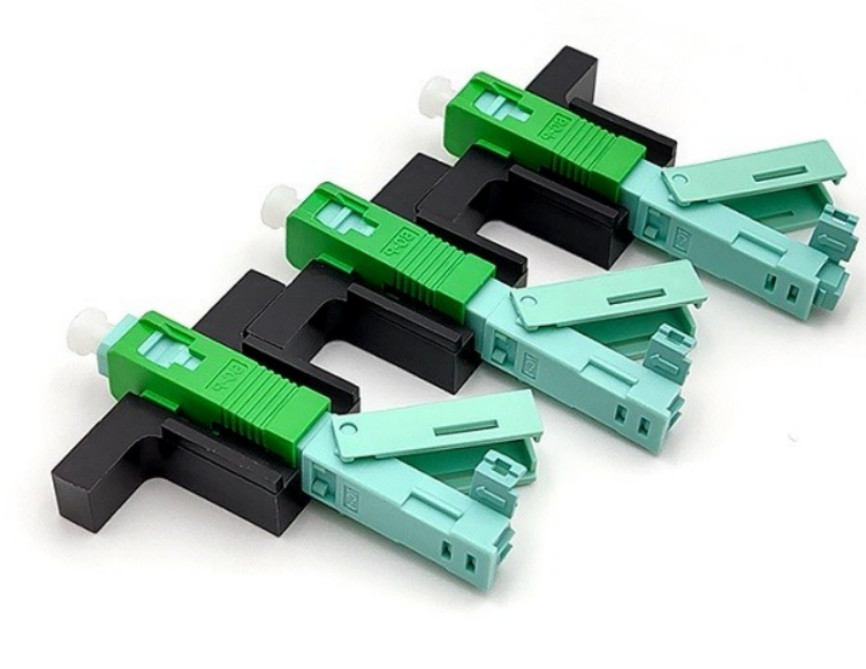

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm
Description
Conector Rapido De Fibra Optica Single Mode Sc-Apc Quick Connectors, commonly known as Splices, are also commonly known as Conector Rapido De Fibra Optica Dual Mode Sc-Apc Quick Connectors. The unique design of the patented mechanical connector body contains a factory-installed fiber stub and a pre-polished ceramic ferrule. Using this field-assembled optical connector increases the flexibility of optical cabling designs and reduces the time required for fiber termination. The quick connector range is already a popular solution for in-building and floor optical cabling for LAN and CCTV applications as well as FTTH.
Quick Assembly SC fiber optic connectors provide quick and easy fiber optic termination in the field and are available in 900 micron and 250 micron. It allows installers to terminate equipment and fiber patch panels and make connections in minutes. Eliminating any need for epoxies, adhesives or expensive curing ovens, this connector system is characterized by high installation quality, high success rates and high reliability.
Application
1. Optical communication network
2. Telecom network
3. Ethernet network
4. CATV network
| Name | Specification |
| Fiber type | Single mode or Muiti mode |
| Applicable for | indoor or Outdoor FTTH |
| Diameter of Cermic core | 2499+0.002mm |
| Concentricity of Ceramic core | <0.5um |
| Material of plastic parts | PBT(Main-body): PEl(Inner- core);Dust Cap(PE) |
| Spring material | 304 stainless steel |
| Operating Wavelength | 1260-1650nm |
| Insertion loss | 0.3dB(Typical);0.5dB(Max) |
| Return loss | A>=50dB,UPC>=45dB |
| Repeatability | 500 repetitions /1L 0.3 DB |
| Tensile Strength | 250N(A IL< 0.2dB) |
| Reusable | 210 times |
| Region Defect | Region A(0-25um) | Region B(25~125um) | Region C(125~250um) |
| Scratch | Allow one scratch no more than thefiber core and widths1um | Allow two scratchs and thewidths2um | Allow five scratchs andwidths2um |
| Speckle | Allow one speckle no more than thefiber core and diameters1um | Allow two speckles and thediameters2um | Allow two speckles and thediameterssum |
| Apron | Between area B and area Callow apron which aperture width less than 5um;and the length of theapron is less than 30% of the perimeter of the fiber end | ||
