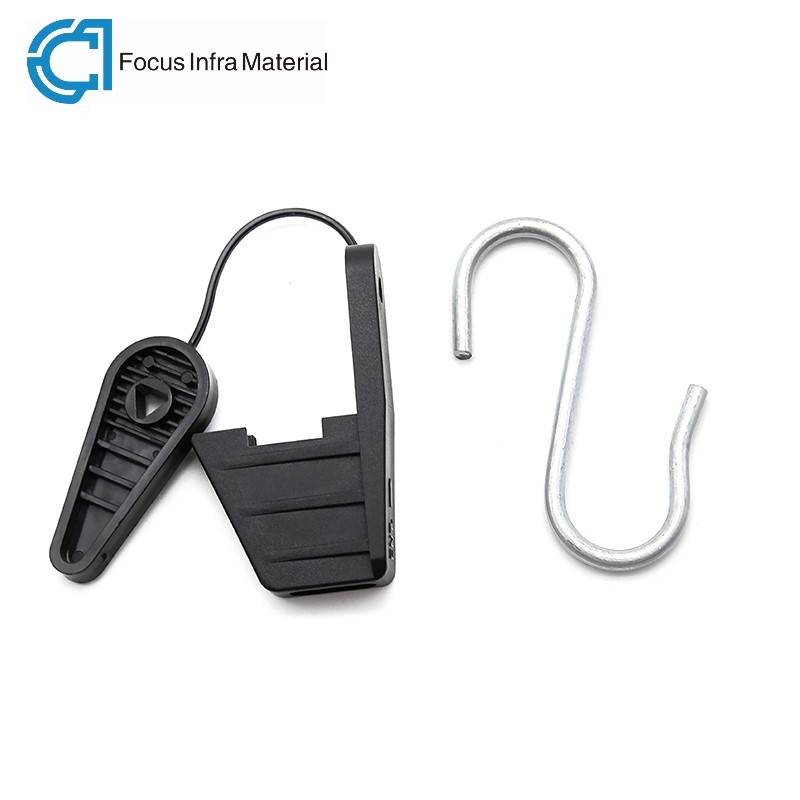

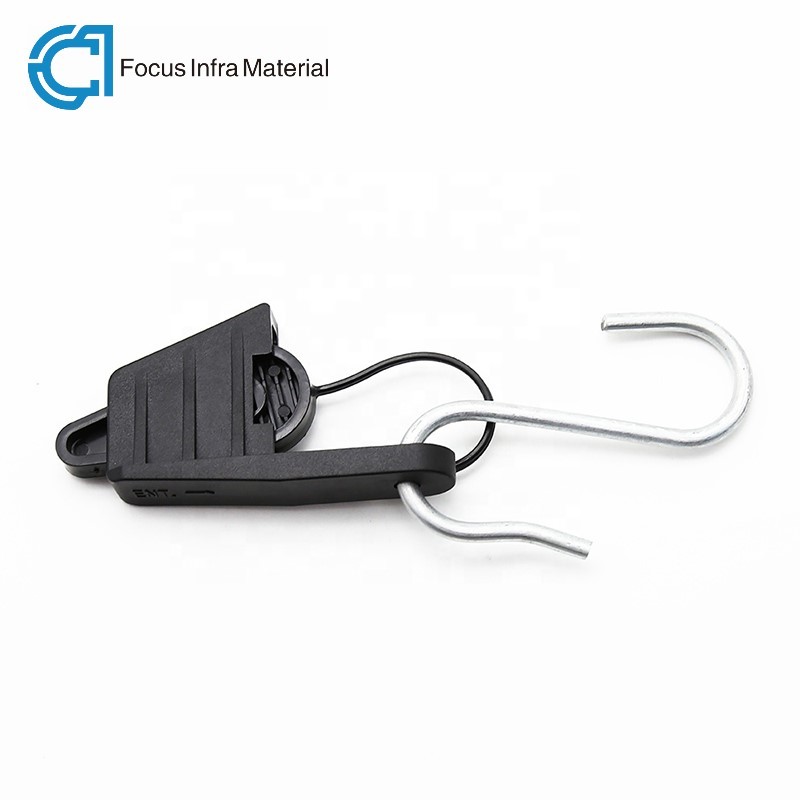

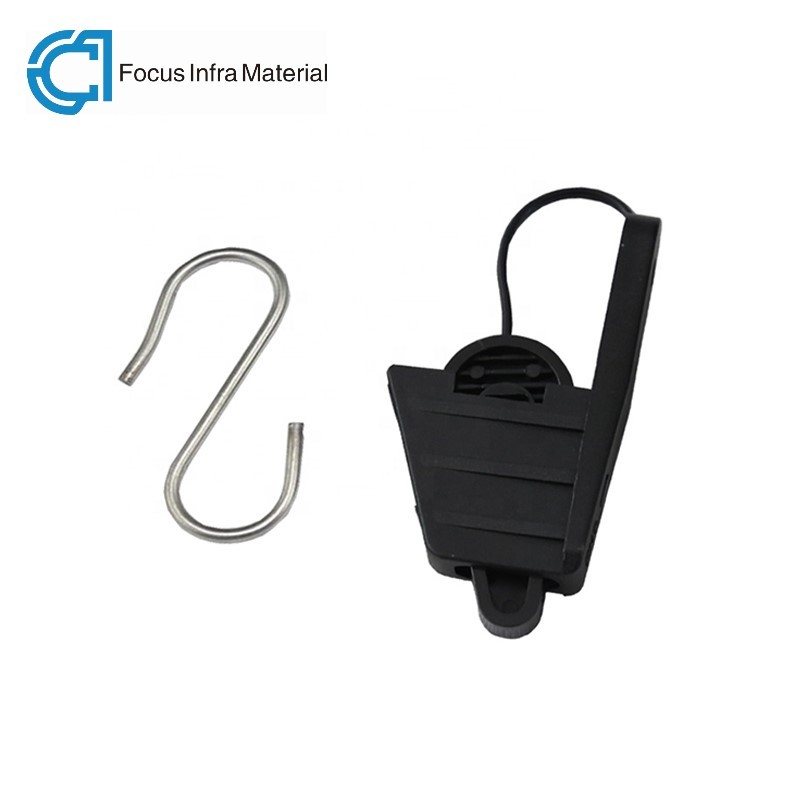

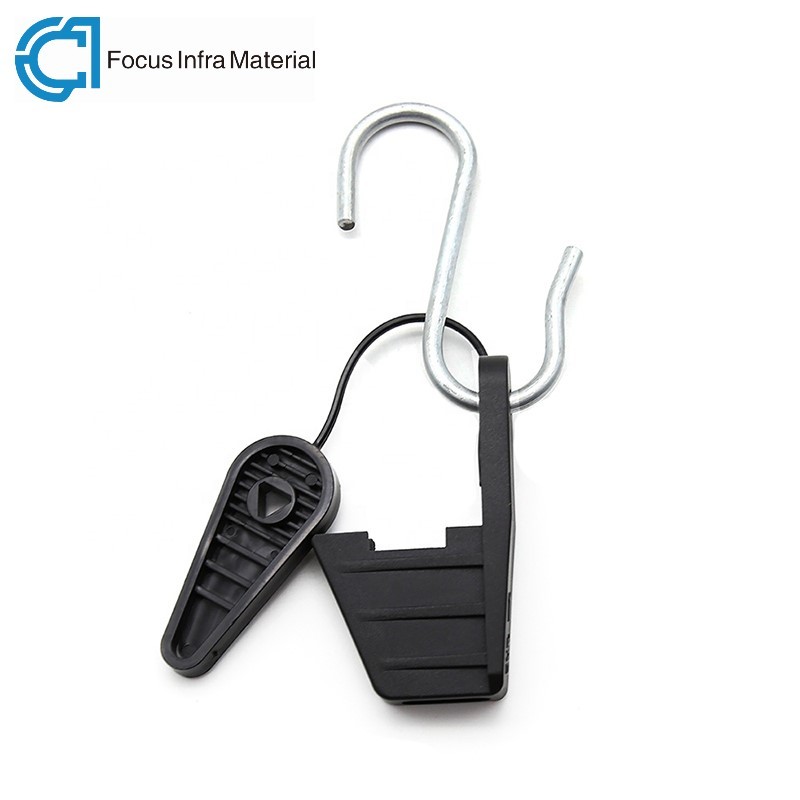

S Hook Fiber Optic Accessories Drop Wire Suspension Clamp

Place of Origin China
Brand Name Focus Infra or OEM
Model Number S type
Minimum Order Quantity 1000pcs
Price Negotiable
Delivery Time 10 DAYS
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Structure FOptic Drop Cable Metal Plastic Clamps S Hook Dia. Of Drop Cable 2-8mm
Function Fixed Cable Clamp Application Indoor And Outdoor Installation
MBL 0.5KN Material Stainless Steel, Plastic
Type S Shape
High Light

S Hook Wire Suspension Clamp


Drop Wire Suspension Clamp


S Hook fiber optic accessories

Leave a Message
Product Description

S Hook Cable Clamp FTTH Indoor and Outdoor applicaition Cabling Accessories Plastic Drop Wire Suspension Clamp




 FTTH drop clamp S-Type designed for suspension or tension round or flat FTTH fiber optic cable or drop wire cable in FTTX construction or telephone drop wires. FTTH clamp S-Type is applied outdoor on routes with short spans up to 50mm. FTTH drop clamp is very easy for installation, and it does not require additional tools, handily adjusted metal S-hoook allows simple installation on cross-arm or suspension brackets and FTTH hooks ,as well. FTTH plastic clamp S-Type has palstic clip for round and flat cable sizes diameter 2.5-5mm or size 2*5mm, which covers most of popular ranges of outdoor FTTH cables. The plastic clip provide the excellent adherence with cable and insure reliable fixation.




1. Optical fiber drop wire clamps are easily to be pick up according to mechanical resistance and diameter of cables' wire of messenger.

2. Material: galvanized steel material clamp's body and wire bail.

3. Drop clamps and optical fiber cable brackets are available either separately or together as assembliy .

4. Material: Plastic and S Hook
5. For managing the fiber optic drop cables 1-2 pair
6. Support and tension flat electrical wire
7. Effective and time saving for cabling.


Product CODE Cable Size ,MM MBL.KN Weight ,KG



0.5 0.04



S Hook Fiber Optic Accessories Drop Wire Suspension Clamp 0
