SC APC SM DX Fiber Optical Adapter Coupler Adapter For FTTH FTTX

  • SC APC SM DX Fiber Optical Adapter Coupler Adapter For FTTH FTTX
  • SC APC SM DX Fiber Optical Adapter Coupler Adapter For FTTH FTTX
Place of Origin China
Brand Name Focus Infra or OEM
Model Number SC APC Single Mode
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details 50pcs/box
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Optical Adapter Metal Adapter SC APC SM DX Coupler Brand Focus Infra
Model Number Single Mode Use FTTH, FTTX, FTTA, CATV, LANs
Insertion Loss <0.2db Return Loss >50db
Durability >1000 Matings Application Fiber Connection
High Light

SM DX Fiber Optical Adapter

,

SC APC Fiber Optical Adapter

,

SM DX fiber optic adapter
Leave a Message
Product Description

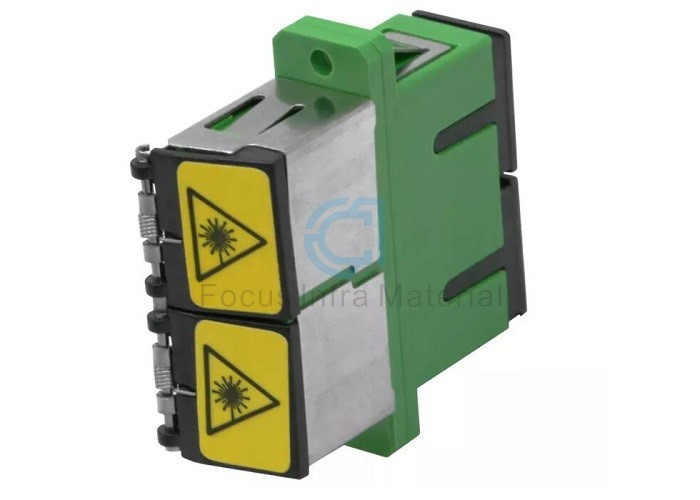

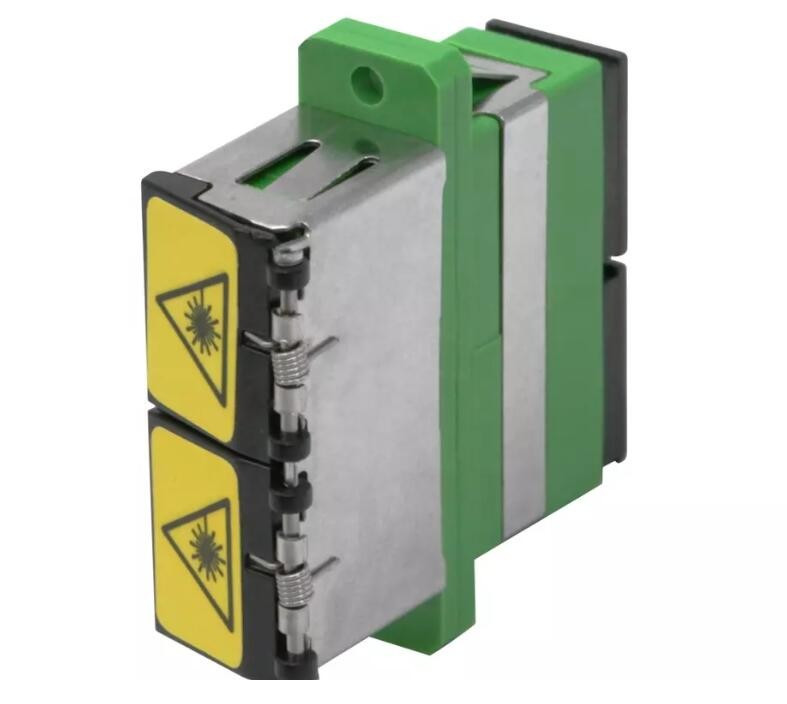

Fiber Optical Adapter Metal Adapter SC APC SM DX Coupler



Description:



  Focus Infra’s Fiber Optical Adapter Metal Adapter SC APC SM DX Coupler is is also called flange plate adapter or coupler adapter. According to the shape of the fiber end face, it is divided into FC, PC (including SPC or UPC) and APC; according to the number of fiber cores, there are also single-core and multi-core (such as MT-RJ). Optical fiber connectors are widely used and have many varieties. In the actual application process, they are generally distinguished according to the structure of the optical fiber connector.

Focus Infra’s Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

The adapter connects the optical fiber through an internal open sleeve to ensure the highest connection performance between optical fiber connectors. In order to fix on various panels, various fine fixing flanges are also designed.



Specification:



Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80



SC APC SM DX Fiber Optical Adapter Coupler Adapter For FTTH FTTX 0

SC APC SM DX Fiber Optical Adapter Coupler Adapter For FTTH FTTX 1
