Lightweight Fiber Optic Adapters Connectors Single Mode SC APC To SC APC Adapter

Place of Origin China
Brand Name Focus Infra or OEM
Model Number SC APC Single Mode
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details 50pcs/box
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler Brand Focus Infra
Model Number Single Mode Use FTTH, FTTX, FTTA, CATV, LANs
Insertion Loss <0.2db Return Loss >50db
Durability >1000 Matings Application Fiber Connection
High Light

lightweight fiber optic adapters connectors


lightweight fiber connector adapters


Single Mode SC APC to SC APC adapter

Leave a Message
Product Description

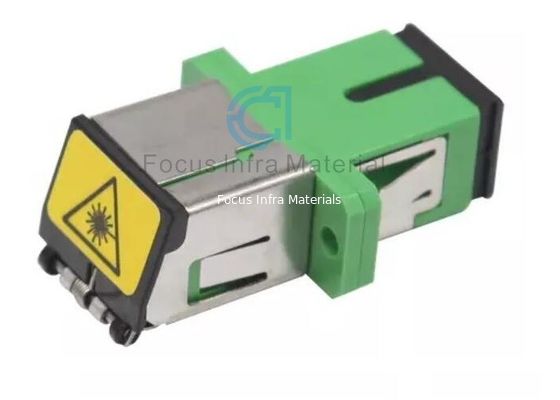

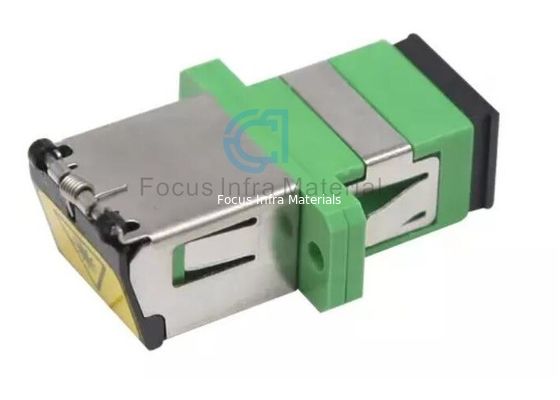

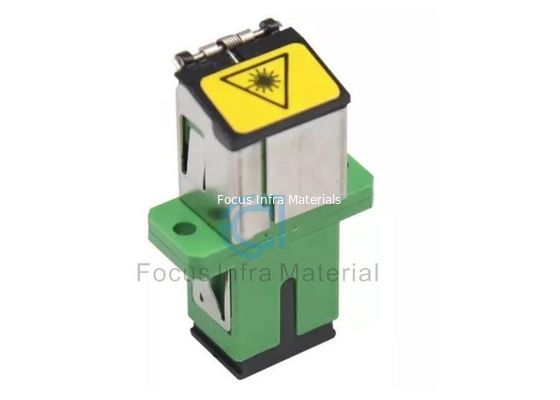

Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler




  Focus Infra’s Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler is is also called flange plate adapter or coupler adapter. According to the shape of the fiber end face, it is divided into FC, PC (including SPC or UPC) and APC; according to the number of fiber cores, there are also single-core and multi-core (such as MT-RJ). Optical fiber connectors are widely used and have many varieties. In the actual application process, they are generally distinguished according to the structure of the optical fiber connector.

Focus Infra’s Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.





Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80
