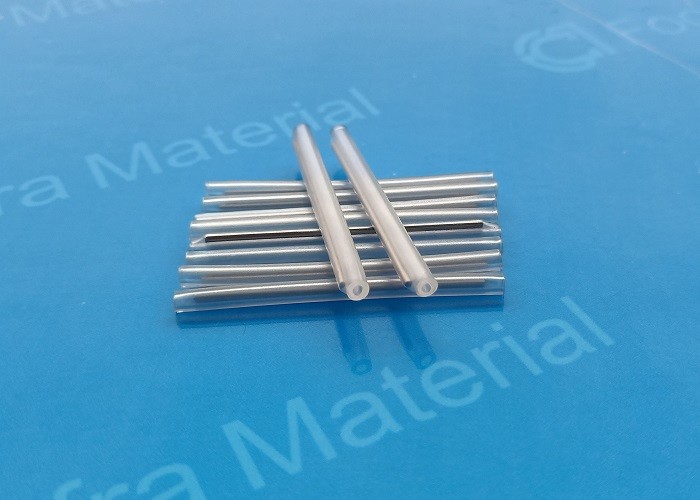

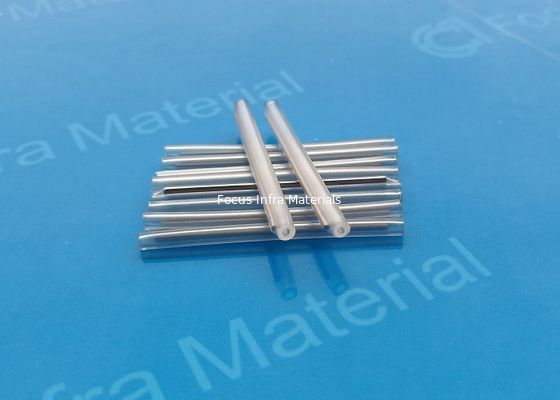

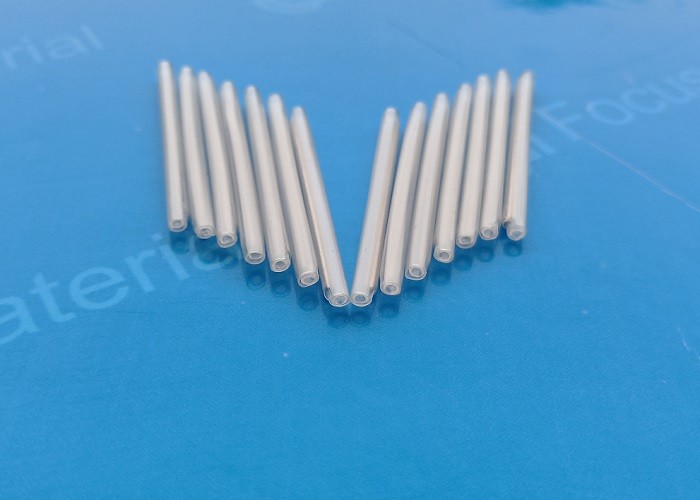

1.2*60mm Fiber Optic Splice Protection Sleeves 6cm With Stainless Steel Rod

Fiber Optic Splice Protector Fusion Protection Sleeve 60mm

Description:

 The Fiber Optic Splice Protector Fusion Protection Sleeve is commonly known as an optical fiber heat shrink protect sleeve. It provides mechanical and environmental protection for fusion splices of fiber.

 A Fiber Optic Splice Sleeve is consisted of cross linked polyolefin, hot melt tubes and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices.

 Focus Infra’s Fiber Optic Splice Sleeve is compatible with most of the industry standard fiber management systems and organizers. Fiber Optic Splice Sleeve is friendly operated to the optic fiber during installation without damaged and micro bending.

  There are different specifications of Fiber Optic Splice Sleeve on the transparent fusion splice protection tube, such as a single-core color stainless steel heat-shrinkable tube, a single-core stainless steel rod type (this is transparent), a ribbon double ceramic type protection tube, etc. , for more details, you can inquiry at product center of Chengdu Focus Infra Materials’ official website.

Structure and features

1. protect splices and improve the mechanical strength.

2. simple operation, reduce the risk of damage fiber installation.

3. transparent casing, optical fiber splice clearly visible.

4. sealing structure to continue to have good resistance to temperature, humidity performance.

5. 304 stainless steel rod to protect the fiber

6. Operating Temperature: -45 – 120 °C.

7. shrink temperature range:120 °C .

Technical Parameters:
