PVC Single Mode 2mm SC LC Duplex Patch Cord 1310nm 1510nm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC APC To LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable | Mode Type | SM DX Singlemode Duplex |
|---|---|---|---|
| Outer Jacket | PVC | Color | Yellow |
| Cable Diameter | 2.0mm Cable | Connector Type | SC APC To LC UPC |
| Application | FTTH System Connections To CATV Telecommunication Networks | Ferrule End -face | SC APC To LC UPC |
| High Light | 2mm sc lc patch cord,duplex patch cord 1310nm,2mm duplex patch cord |
||
Product Description

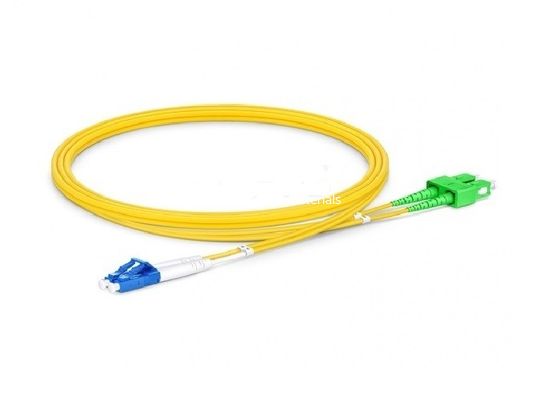

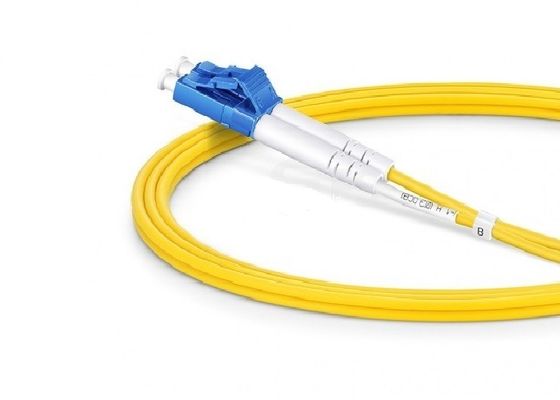

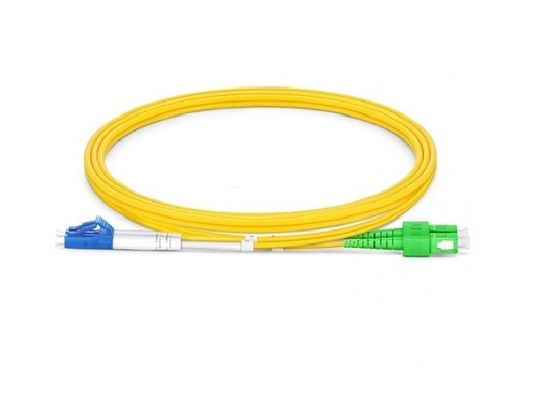

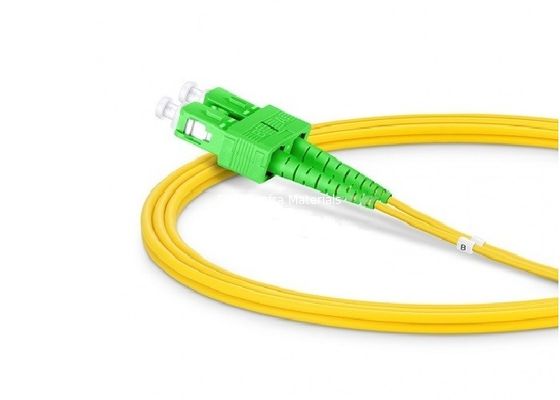

SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable
Description:
SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable is with the connector connecting GBIC optical module. Its shell is rectangular.
The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.
According to different transmission media, optical fiber jumpers can be divided into common single-mode and multi-mode jumpers of silicon-based optical fiber, as well as other optical fiber jumpers with plastic as transmission media.
Features:
1. Low Insertion loss
2. High return loss
3. Excellent Environmental Adaptability
4. SM & MM available
6. Standard & custom configurations
7. Meets Telecordia-GR-326-CORE specifications
8. Ultra low back reflection
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
Features:
1. Low Insertion loss
2. High return loss
3. Excellent Environmental Adaptability
4. SM & MM available
6. Standard & custom configurations
7. Meets Telecordia-GR-326-CORE specifications
8. Ultra low back reflection
