FTTH 3mm Fiber Optic Patch Cords Cable Om1 Om2 Om3 Om4 SM DX Singlemode Duplex
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode Type | SM DX Singlemode Duplex | Outer Jacket | PVC/LSZH/OFNP/OFNR |
|---|---|---|---|
| Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 | Cable Diameter | 3.0mm Cable |
| Connector Type | LC UPC To LC UPC | Application | FTTH System Connections To CATV Telecommunication Networks |
| Cable | Simplex, Duplex,6fiber,12fiber,24fiber,48fiber | ||
| High Light | FTTH Fiber Optic Patch Cords,fiber optic cable om1 om2 om3 om4,3mm fiber optic cable om1 om2 om3 om4 |
||
Product Description

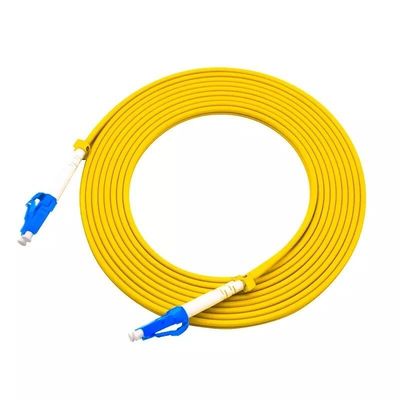

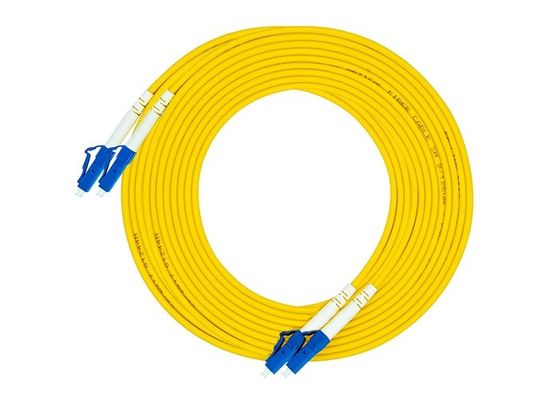

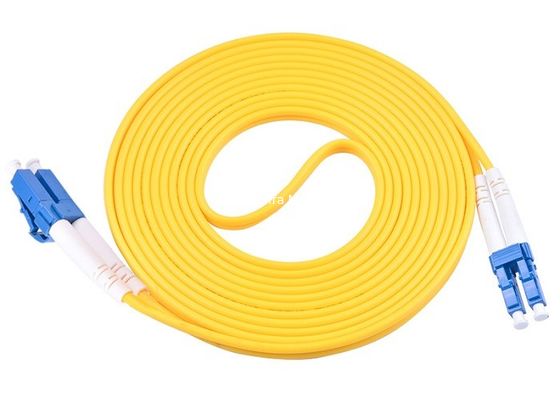

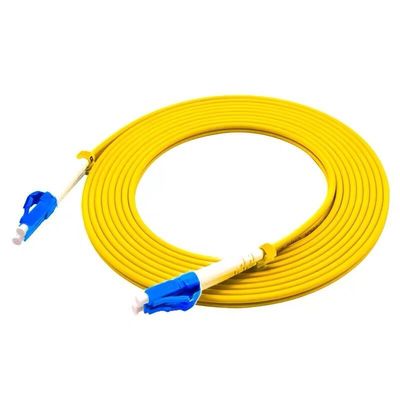

LC UPC-LC UPC Duplex Single-Mode Fiber Optic 3.0mm FTTH Fiber Optic Jumper Cable
Description:
LC UPC-LC UPC Duplex Single-Mode Fiber Optic 3.0mm FTTH Fiber Optic Jumper Cable is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.
LC-LC Fiber Optic Cable body is made of PVC/ LSZH plastic materials, which is shiny, tough, environmental protection, not fade,not broken and not easily deformed. The inside optical cable is aramid, which is tough, tensile, non-toxic, fire retardant, core protection and low smoke. The connector is PBT plastic materials and fine copper, which is firm, durable, environmentalprotection, high temperature resistant, not fade, not broken and not easily deformed.
| Technical Parameters | ||||||||
| PARAMETER+A2:L17 | UNIT | FC,SC,LC | ST,MU | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 | ||||||
| Exchangeability | dB | ≤0.2 | ||||||
| Vibration | dB | ≤0.3 | ||||||
| Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
| Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
| Material of the jacket | PVC or LSZH or customized | |||||||
| Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
| Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
| Multi monde fiber | ITU-TG.651 | |||||||
| Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) | |||||||
Characteristics:
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPCAPC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5. Cable Diameter: 3.0mm,2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
