48 72 96 Core Outdoor Fiber Splice Enclosure Optic 2 Inlets 2 Outlets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 48 72 96 Core Horizontal Type Outdoor Aerial Dome Fiber Optical Splice Closure | Model Number | FS-J-022 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 68 |
| Cable Port | 2 Inlets 2 Outlets | Scope Of Application | 12 Core To 96 Core |
| Product Size | 430*190*110mm | Gross Weight | 3.3 Kg |
| Main Material | ABS | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | 48 72 96 Core outdoor fiber splice enclosure,outdoor fiber splice enclosure 2 inlets,splice enclosure fiber optic 2 outlets |
||
Product Description

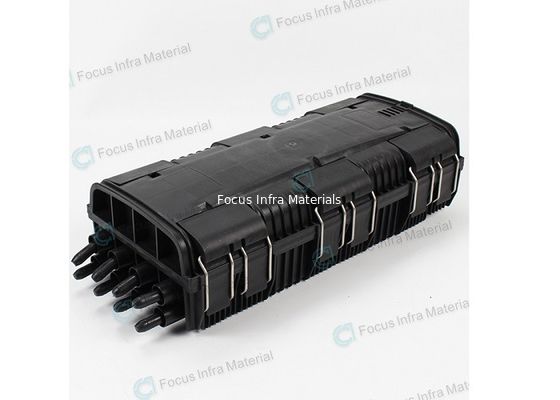

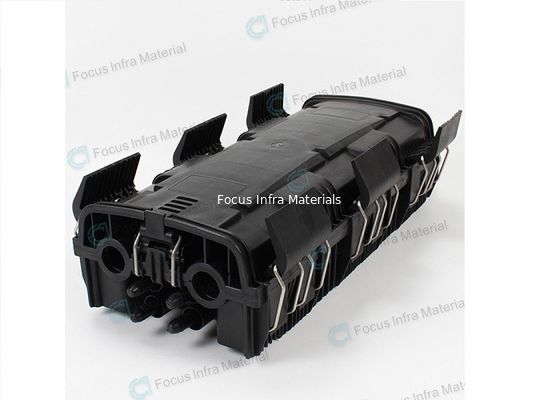

48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Closure
Description:
According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. 48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Closure, also known as 48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Box, is the place where the end of optical cable is connected. 48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Closure are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Classification:
According to the appearance structure can be divided into cap cable joint box and horizontal cable joint box;
According to the optical cable laying method, overhead, pipeline (tunnel) and direct burial types;
According to the optical cable connection mode is divided into direct connection and differential connection;
Specification:
| Product name | 96 core Horizontal Type Cable Joint Box |
| Protection level | IP68 |
| Scope of application | 12 core to 96 core |
| Gross weight | 3.3 kg |
| Main material | ABS |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
Features:
IP68 Water-proof design for outdoor uses;

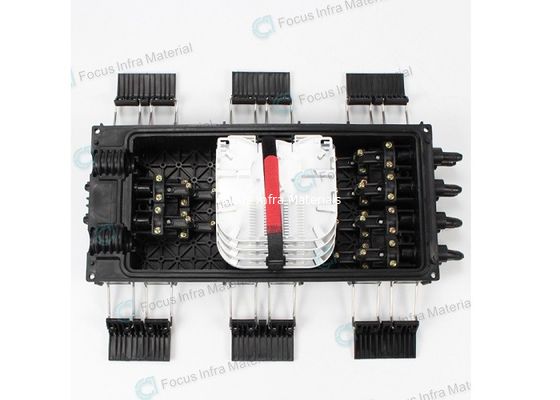

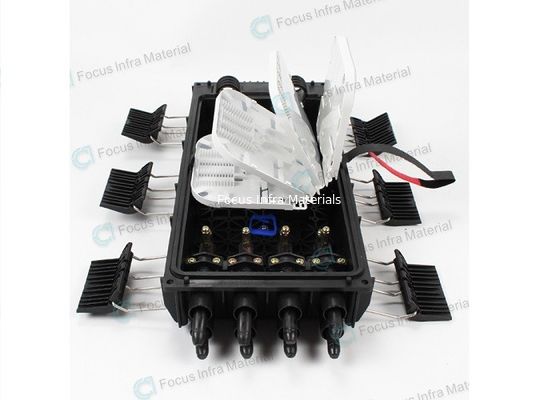

Splice tray: using cascading structure, no need to take other splice tray when do operation;
Used for direct transmission of outdoor cable in aerial,
duct and direct buried application
Used for branching connection and protect the joint
