ABS IP65 Fiber Optic Joint Closure 48 Core 280*200*90mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box | Model Number | FS-J-017 |
|---|---|---|---|
| Brand Name | Focus Infra Or OEM | Protection Level | IP 65 |
| Cable Port | 1 Inlets 1 Outlets | Scope Of Application | 12 Core To 48 Core |
| Product Size | 280*200*90mm | Gross Weight | 1.2 Kg |
| Main Material | ABS | Ambient Temperature | - 40 °C ~ + 60 °C |
| High Light | IP65 joint closure 48 core,joint closure 48 core 280*200*90mm,IP65 fiber optic joint closure |
||
Product Description

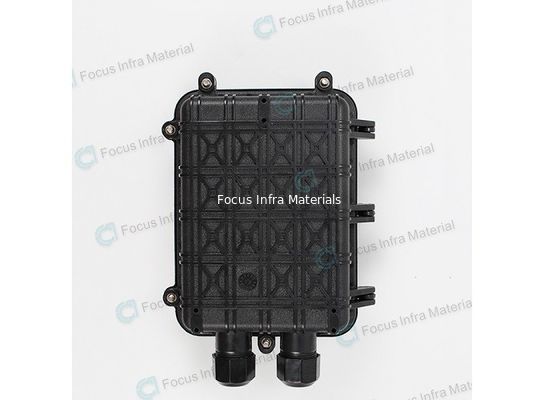

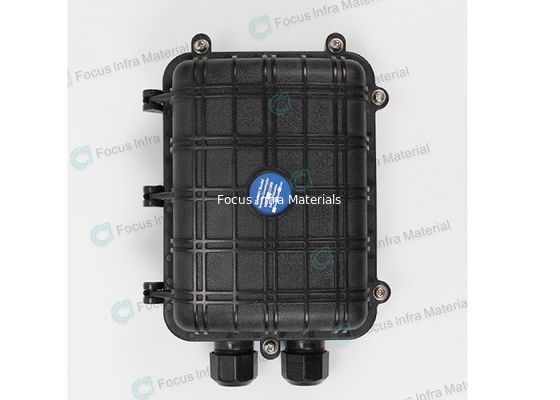

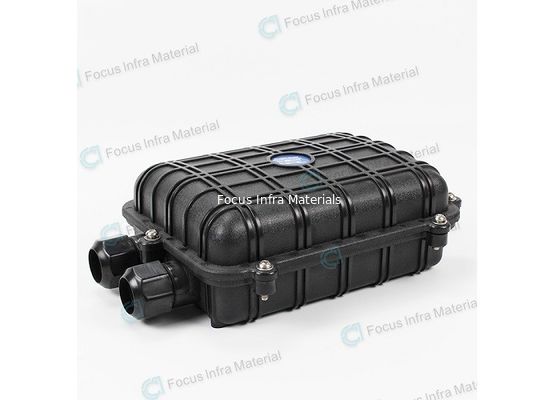

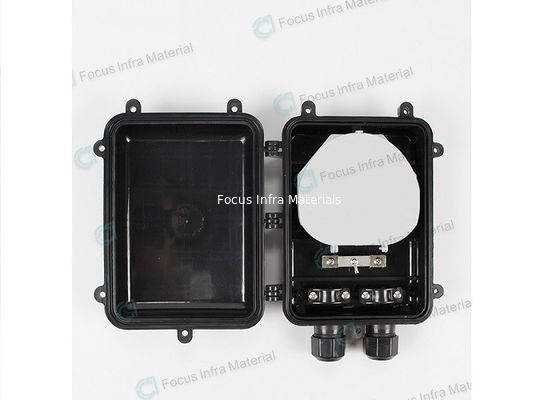

Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box
Description:
According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box, also known as Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box is widely apply for the connecting of optical cable.Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Specification:
| Product name | Dome Type Vertical Fiber Optic Splice Box |
| Protection level | IP65 |
| Scope of application | 12 core to 48 core |
| Gross weight | 2.15 kg |
| Main material | Plastic |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
Features:
Vertical dome type fiber optic splice junction enclosure, with metal hoop;
ABS&PP alloy material used ensures the body strong and light;
IP65 Water-proof design for outdoor uses;
The application of temperature: -40℃~60;
